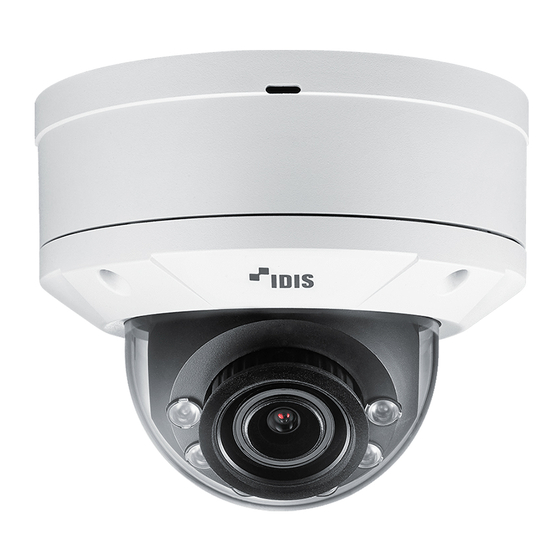

- Page 1 DC-D Series Installation Manual DC-D3233HRXL / DC-D6233HRXL Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
• Two-way audio communication support for remote over ethernet. audio dialog You can use the IDIS Discovery program to change • Video stream buffering to counter pre-/post-event network camera settings or the IDIS Solution Suite buffering and network delays for improved network... - Page 7 Remote monitoring and recording via multistreaming • Network-based integrated management of multiple are available using the IDIS Solution Suite Compact network cameras program. For more information on using IDIS Solution Suite Compact, refer to its operation manual.
-
Page 8: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. Network Camera Terminal Blocks (2 ea.) Quick Guide CVBS Cable Allen Wrench Screws, Anchors (each 3 ea.) Desiccant Protect Connector (1 ea.) Guide Pattern... -
Page 9: Overview
Part 1 – Introduction Overview Dome Cover & Horizontal Rotator IR LED Vertical Rotator Lens Rotator Safety Wire Lens • Safety Wire Dome Cover Assembly Part Prevents the dome cover from falling on to the floor Bottom Cover when detached from the camera. Power Network Port Body... - Page 10 For more information on network connection setup, purchase a separate speaker system with a built-in refer to the IDIS Discovery operation manual. amplifier. - I (In): Connect an audio source to this port. (line in) The table below shows the network cable specifications.
-
Page 11: Factory Reset
Part 1 – Introduction I/O Connector - I (In): Connect an alarm-in device to this port. (Mechanism: Choose between an NC (Normally Closed) type or an NO (Normally Open) type) → Alarm In Connect a mechanical or electrical switch to the Grounding alarm in port and the GND (ground) connector. -
Page 12: Lens
Installation of this product does not require the use of on or using the IDIS Discovery program from a remote special tools. location. A factory reset will reboot the system. For more... -
Page 13: Inserting A Sd Memory Card
Part 1 – Introduction Installation Remove the dome cover. • Check the wall or ceiling to see if it needs to be reinforced. The camera may fall off if the wall or ceiling is not strong enough to support its weight. •... -
Page 14: Closing The Dome Cover
Part 1 – Introduction Assemble the cable rubber to the bottom cover. Attach the enclosed desiccant in the bottom to Connect external devices, the network cable, and prevent moisture. the power adapter. Desiccant Adjust the angle. For more information, refer to the Angle Adjustment. -
Page 15: Angle Adjustment
Part 1 – Introduction Angle Adjustment Dimension The lens can be rotated along three axes. Ø 160mm (6.3") Lens Rotation Horizontal Rotation Vertical Rotation • Lens Rotation Used to adjust the lens' rotation angle. Turn the lens rotator clockwise or counterclockwise direction. •... -
Page 16: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Alarm Out Power Sensor In Network Camera Monitor Out... -
Page 17: With Non Directip™ Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 18: Part 3 - Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below. -
Page 19: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/1.9" CMOS Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type Motorized Vari-focal Focal Length f=4.4 - 10mm Aperture F=1.2 - 1.95 Iris Control P-Iris Angular Field of View... - Page 20 Part 3 - Appendix Network Video Compression H.265, H.264(MP), M-JPEG Bitrate Control CBR / VBR Max. Frame Rate DC-D3233HRXL 60fps : 1920 x 1080 30fps : 1920 x 1080(WDR) DC-D6233HRXL 30fps : 1920 x 1080(WDR) Audio Compression G.726, G.711, ADPCM 16K Supported Resolution 1920x1080, 1280x720, 704x480, 640x360, 352x240 Multi-Video Streaming...
- Page 21 Part 3 - Appendix General Vandal Resistance Out-door Ready IP67, Heater Operating Temperature -40°C ~ +60°C (-40°F ~ +140°F) Boot Up Temperature -20°C ~ +60˚C (-4°F ~ +140˚F) Operating Humidity 0% ~ 90% Power Source , PoE(IEEE 802.3af, Class3) Power Consumption , 0.97A, 11.6W PoE, IEEE 802.3af(Class 3) Approval...
- Page 22 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
