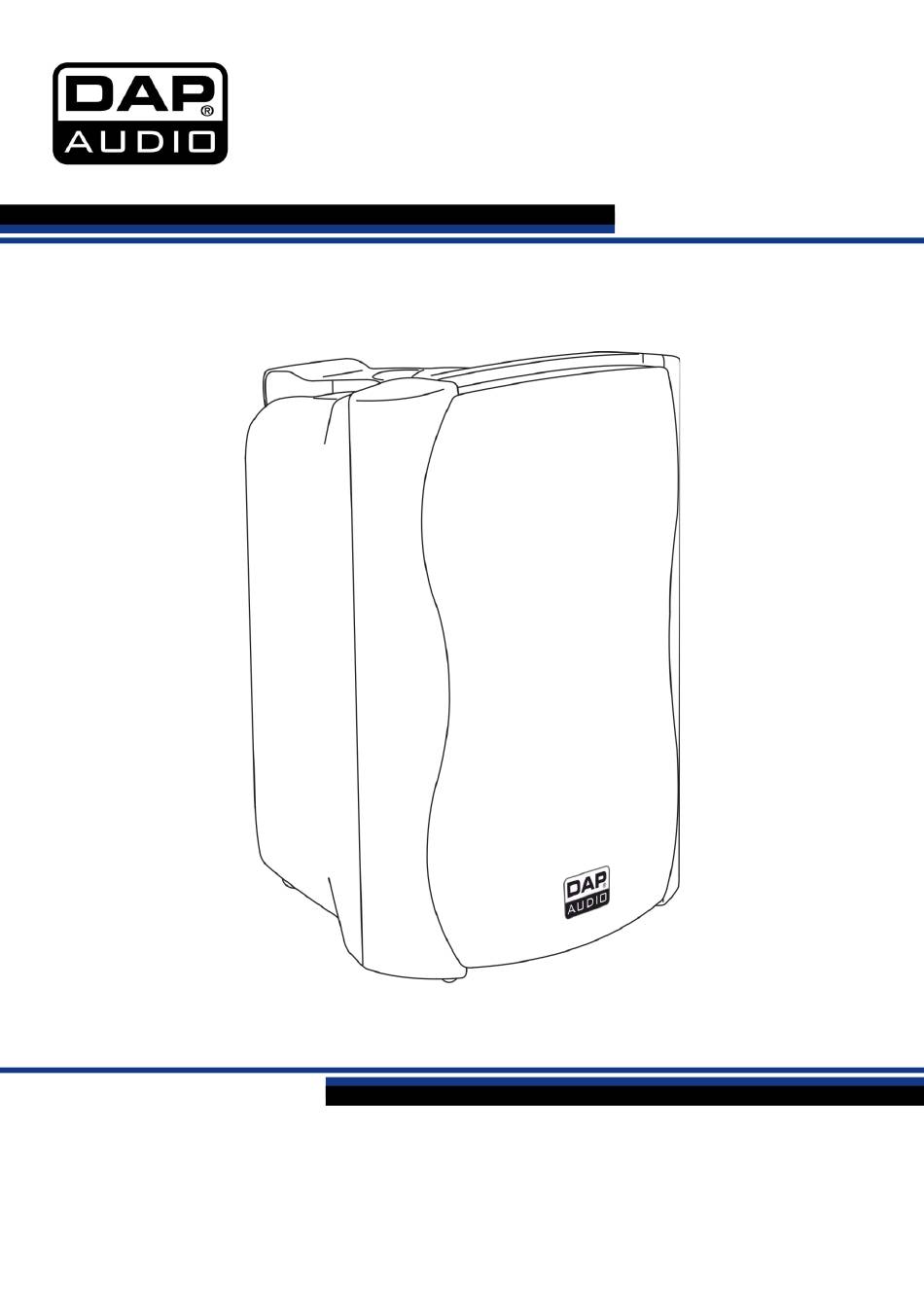

- Page 1 MANUAL ENGLISH PRA-62 2 x 25W Ordercode: D3507 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
PRA-62 2 x 25W Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................5 Backside ..................................6 Installation ................................... 7 Set Up and Operation ............................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP Audio 2-way active speaker system PRA-62 2 x 25W • IEC power cable (1,5 m) •... -
Page 4: Operating Determinations
You endanger your own safety and the safety of others! Improper installation can cause serious injuries and damage of property ! The PRA-62 can be mounted to any kind of truss with a clamp or placed on a flat stage floor. Ordercode: D3507... -
Page 5: Return Procedure
PRA-62 2 x 25W Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 6: Description Of The Device
PRA-62 2 x 25W Description of the device Features Input voltage: 230V AC, 50 Hz • Power consumption: 2 x 25W RMS • Impedance: 8 Ω • Woofer: 6,5” Mica cone rubber edge • Tweeter: 12,6 mm • Mylar dome: 1,49 Oz magnet •... -
Page 7: Backside
PRA-62 2 x 25W Backside Fig. 02 Volume control Treble control Bass control Power switch ON/OFF IEC power connector 230V AC + Fuse F1AL/250V Speaker cable connector OUT RCA line connectors IN Ordercode: D3507... -
Page 8: Installation
PRA-62 2 x 25W Installation Remove all packing materials from the PRA-62 2 x 25W. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 9: Names And Functions
06) Speaker cable connector OUT Connect the active PRA-62 speaker to the passive PRA-62 speaker, by means of the included speaker cable. 07) RCA line connectors IN Connect input signal (for example, from a mixer) to the speaker, by means of an RCA cable. -
Page 10: Troubleshooting
04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the PRA-62, as this may damage the unit and the warranty will become void. -
Page 11: Dimensions
PRA-62 2 x 25W Dimensions Ordercode: D3507... - Page 12 ©2015 DAP Audio...
