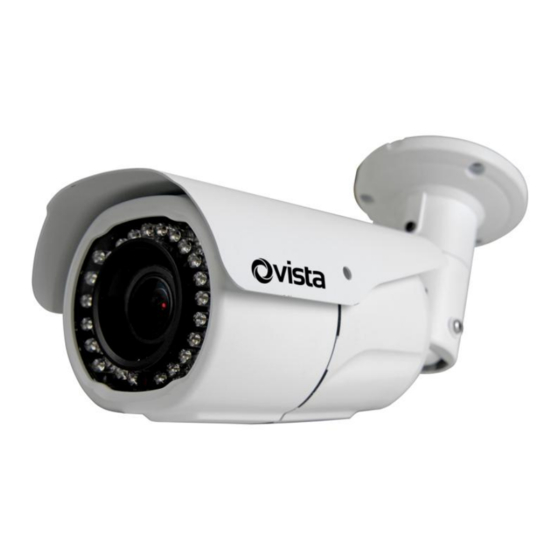

Vista VK2-2MPXBIR28V12M User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

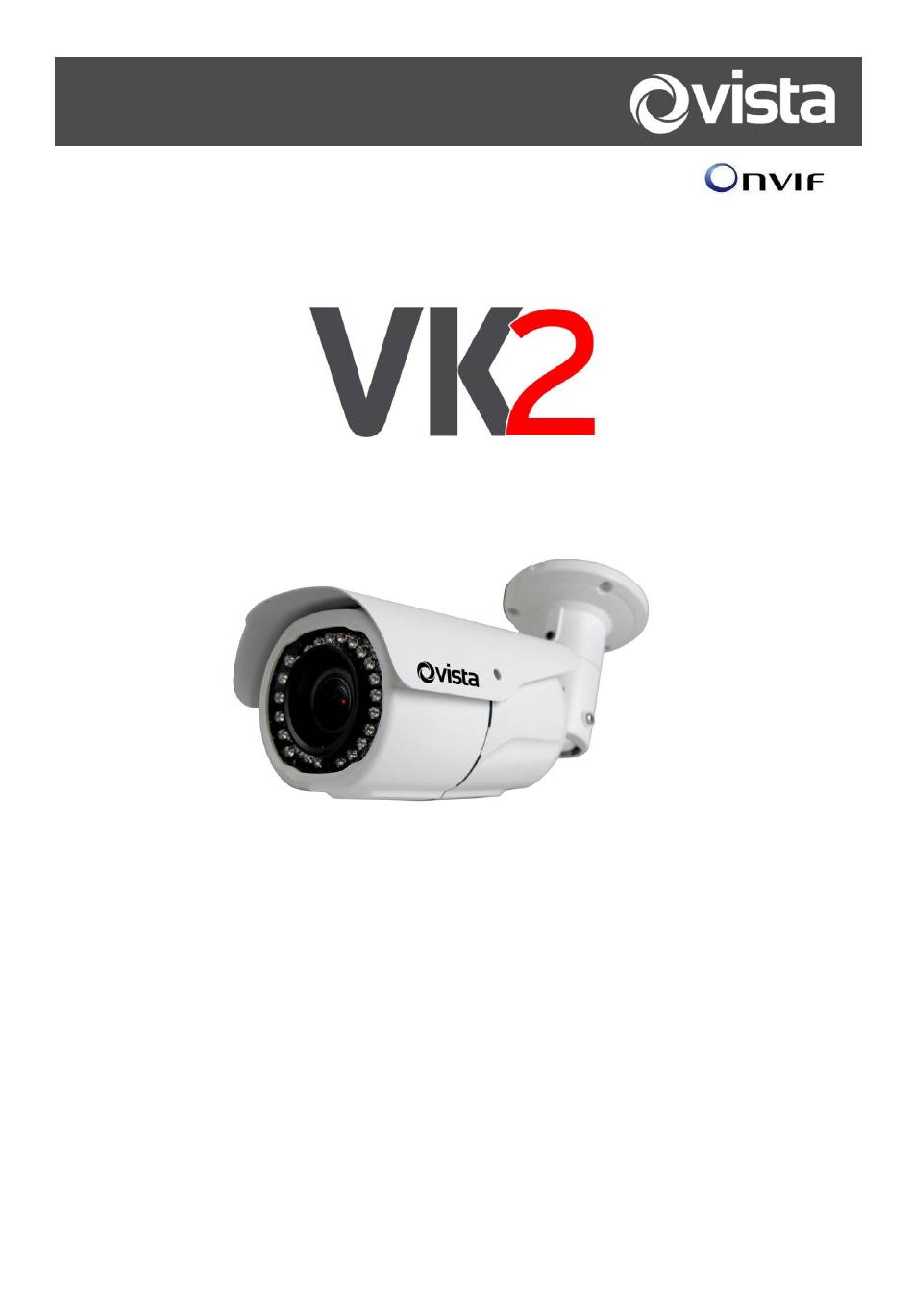

VK2-2/4MPXBIR28V12M User Manual V1.0
VK2-4MP(2MP)XBIR28V12M
USER MANUAL
Please read this manual thoroughly before use and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VK2-2MPXBIR28V12M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vista VK2-2MPXBIR28V12M

Summary of Contents for Vista VK2-2MPXBIR28V12M

  • Page 1 VK2-2/4MPXBIR28V12M User Manual V1.0 VK2-4MP(2MP)XBIR28V12M USER MANUAL Please read this manual thoroughly before use and keep it handy for future reference.

  • Page 2: Before You Begin

    VK2-2/4MPXBIR28V12M User Manual V1.0 Before You Begin Read these instructions before installing or operating this product. Note: This installation should be made by a qualified service person and should conform to local codes. This manual provides installation and operation information. To use this document, you must have the following minimum qualifications: ...
  • Page 3 VK2-2/4MPXBIR28V12M User Manual V1.0 IMPORTANT SAFEGUARDS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

  • Page 4: Table Of Contents

    VK2-2/4MPXBIR28V12M User Manual V1.0 Contents Before You Begin Intended use Customer Support WARNINGS AND CAUTIONS: 1 Introduction 1.1 Components ......................5 1.2 Key Features ......................6 2 Installation 2.1 Overview........................7 2.2 Connection ....................... 9 2.3 Resetting to the factory default settings ..............10 2.4 Network Connection &...

  • Page 5: Introduction

    VK2-2/4MPXBIR28V12M User Manual V1.0 1 Introduction The VK2-4MP(2MP)BIR28V12M IP Bullets are highly featured CCTV cameras offering the installer and user the following: 1. H265 / H264 Compression 2. IR Illumination 3. Hi-Stream bandwidth / storage optimizer function 4. 2 and 4MP resolution options 5.

  • Page 6: Key Features

    VK2-2/4MPXBIR28V12M User Manual V1.0 1.2 Key Features • Brilliant video quality The network camera offers the highly efficient H.265 or H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility. •...

  • Page 7: Installation

    VK2-2/4MPXBIR28V12M User Manual V1.0 2 Installation For the operation of the n etwork c amera, it is necessary to connect a network cable for data transmission, power connection from power adapter. Depending on operation methods, it is possible to connect an alarm cable additionally. For its fixation on different locations, please consult with an installer.
  • Page 8 VK2-2/4MPXBIR28V12M User Manual V1.0 • Installing Camera To mount the bullet camera, fix the base of the camera with the three screws provided in the accessory kit.

  • Page 9: Connection

    VK2-2/4MPXBIR28V12M User Manual V1.0 2.2 Connection • Micro SD memory slot on the Bottom Board Remove the cap at bottom of the camera to insert the SD memory card. • Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub.

  • Page 10: Resetting To The Factory Default Settings

    VK2-2/4MPXBIR28V12M User Manual V1.0 2.3 Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup > System > Maintenance web page (described in “System > Maintenance” of User Manual) or use the Reset button on the network camera inside the bottom cap.

  • Page 11: Network Connection & Ip Assignment

    VK2-2/4MPXBIR28V12M User Manual V1.0 2.4 Network Connection & IP assignment The camera supports the operation through the network. When a camera is first connected to the network, it is necessary to allocate an IP address to the device with the “SmartManager” utility on the CD.

  • Page 12: Operation

    VK2-2/4MPXBIR28V12M User Manual V1.0 3 Operation The network camera can be used with Windows operating system and browsers. The rec- ommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls.

  • Page 13: Access From The Internet

    VK2-2/4MPXBIR28V12M User Manual V1.0 3.2 Access from the internet Once connected, the network camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT traversal feature, which will attempt to automatically configure the router to allow access to the network cam- era.

  • Page 14: Live View Page

    VK2-2/4MPXBIR28V12M User Manual V1.0 3.4 Live View Page The Live View page comes in several screen modes. Users are allowed to select the most suitable one out of those modes. Adjust the mode in accordance with your PC specifications and monitoring purposes.
  • Page 15 VK2-2/4MPXBIR28V12M User Manual V1.0 The Digital Zoom button activates a zoom-in or zoom-out function for video image on the live screen. The Full Screen button causes the video image to fill the entire screen area. No other windows will be visible. Press the ‘Esc’ button on the computer keyboard to cancel full screen view.

  • Page 16: Playback

    VK2-2/4MPXBIR28V12M User Manual V1.0 3.5 Playback The Playback window contains a list of recordings made to the memory card. It shows each recording’s start time, length, the event type used to start the recording, calendar and time slice bar indicates if the recording is existed or not. The description of playback window follows.
  • Page 17 VK2-2/4MPXBIR28V12M User Manual V1.0 3) Time Chart Display an hour-based search screen for the chosen date. If there is recording data, a blue section will be displayed on a 24-hour basis. If you select a particular hour in the chart, a yellow square on the hour will be displayed.

  • Page 18: Network Camera Setup

    VK2-2/4MPXBIR28V12M User Manual V1.0 3.6 Network Camera Setup This section describes how to configure the network camera. Administrator has unrestricted access to all the Setup tools, whereas Operators have access to the settings of Basic Configuration, which are Live View, Video & Image, Audio, Event, Dome Configuration, and System.
  • Page 19 VK2-2/4MPXBIR28V12M User Manual V1.0 1) Users User access control is enabled by default. The administrator can set up other users, by giving user names and passwords. It is also possible to allow anonymous viewer login, which means that anybody may access the Live View page, as described below: The user list displays the authorized users and user groups (levels): User Group Authority...
  • Page 20 VK2-2/4MPXBIR28V12M User Manual V1.0 2) Network The network camera supports both IP version 4 and IP version 6. Both versions may be enabled simultaneously, and at least one version must always be enabled. When using IPv4, the IP address for the network camera can be set automatically via DHCP, or a static IP address can be set manually.
  • Page 21 VK2-2/4MPXBIR28V12M User Manual V1.0 3) Video & Image User can setup and change setting of individual video stream in this page. Please refer to “Video & Image > Basic” for more details about Video & Image setup.
  • Page 22 VK2-2/4MPXBIR28V12M User Manual V1.0 4) Audio The network camera can transmit audio to other clients using an external microphone and can play audio received from other clients by attaching a speaker. User can setup and change setting of Audio in this page. Please refer to “Audio”...

  • Page 23: Video & Image

    VK2-2/4MPXBIR28V12M User Manual V1.0 3.6.2 Video & Image 1) Basic • Sensor Setting: – Capture mode: User can select sensor capture mode between 1920x1080(2MP) /2592x1520(4MP) and NTSC/PAL (Some models are fixed to NTSC or PAL). • Stream 1 Setting: – Codec: The codec supported in Stream 1 is H.264 and H.265 There are 3 pre-programmed stream profiles available for quick set-up.
  • Page 24 VK2-2/4MPXBIR28V12M User Manual V1.0 applications, the importance of this profile faded when the High Profile was developed for those applications. – Resolution: This enables users to determine a basic screen size when having an access through the Web Browser or PC program. The screen size control comes in several modes.
  • Page 25 VK2-2/4MPXBIR28V12M User Manual V1.0 2) Privacy Masking The privacy masking function allows you to mask parts of the video image to be transmitted. You can set up to eight privacy masks. The privacy masks are configured by Mask windows. Each window can be selected by click- ing with the mouse.
  • Page 26 VK2-2/4MPXBIR28V12M User Manual V1.0 4) Hi-Stream The Hi-Stream function allows reduce bandwidth by using compression and frame rate control. • Enable ROI: Select ‘Enable ROI’ to active Hi-Stream function. Video mode will be fixed to CVBR. Create region: Click the right button of mouse and select New ROI Area. Click the left button of mouse and drag to make window.
  • Page 27 VK2-2/4MPXBIR28V12M User Manual V1.0 5) Camera Setup In this page, user can setup Exposure Control, White Balance Control, Image Appearance, and Day & Night control. • Video Preview: User can check the setting via video preview pop-up window...
  • Page 28 VK2-2/4MPXBIR28V12M User Manual V1.0 • Exposure Control – Mode: Determines exposure mode among automatic and flicker-free modes. – Max. gain: Sets maximum gain threshold. – Shutter: Determines shutter mode between automatic and fixed. For automatic 6 sets the maximum shutter speed, and for fixed 5 sets the shutter speed for the camera. In case of fixed shutter speed, this pull-down shows selectable shutter speeds depend on the exposure selection in 1.
  • Page 29 VK2-2/4MPXBIR28V12M User Manual V1.0 • Enhance Control – Enable wide dynamic range: Activates WDR which cannot be used with Defog function. If WDR is activated, shutter mode becomes automatic only. – Enable flip horizontally: Check this box to flip the image. –...
  • Page 30 VK2-2/4MPXBIR28V12M User Manual V1.0 6) OSD This camera provides two OSD’s (on screen display) on each stream, title and date & time. User can drag green “OSD Title” and “Date & Time” to the desired position and check at preview window.

  • Page 31: Audio

    VK2-2/4MPXBIR28V12M User Manual V1.0 3.6.3 Audio The network camera can transmit audio to other clients using an external microphone and can play audio received from other clients by attaching a speaker. The Setup page has an additional menu item called Audio, which allows different audio configurations, such as full duplex and simplex. •...

  • Page 32: Event

    VK2-2/4MPXBIR28V12M User Manual V1.0 – Output volume: If the sound from the speaker is too low or high it is possible to adjust the output gain for the active speaker attached to the network camera. – Mute: User can disable the output audio transmission by checking the box. When the settings are complete, click Save button to save the settings, or click Reset button to clear all of the information you entered without saving it.
  • Page 33 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ Alarm In This camera provides 1 Alarm In port and user can set the port. The Port can be given as Normally Open or Normally Close state, and its Normal state can be configured. In order to use the alarm port, check the “Enable alarm port 1”...
  • Page 34 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ Manual Trigger This option makes use of the manual trigger button provided on the Live View page, which is used to start or stop the event type manually. Alternatively, the event can be triggered via the product’s API (Application Programming Interface).
  • Page 35 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ Motion This option makes use of the motion detection function with 16 programmable areas, 8 Include and Exclude zones each. Click right mouse button on the preview window shows selection pop-up of New Motion, New Mask, Select, Delete, and Freeze.
  • Page 36 VK2-2/4MPXBIR28V12M User Manual V1.0 – Name: User definable zone name. – Type: shows zone type and cannot be changed. – Threshold: Determines how large the motion in the zone can trigger event in percentage. – Dwell time: Determines how long the triggered event holds from the last trigger- ing. –...
  • Page 37 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ Network Loss This is used to trigger an event every time the network connection is failed. Select “Enable network loss” to activate the Network Loss event. Select a dwell time for how long the event will last from the point of detection. When the settings are complete, click Save button to save the settings, or click Reset button to clear all of the information you entered without saving it.
  • Page 38 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ Time Trigger Time Trigger is to set alarms at specific time. User can set up to four time triggers and each time trigger can be set to specific date in the calendar, every day, day of the week, or date of every month.
  • Page 39 VK2-2/4MPXBIR28V12M User Manual V1.0 ▽ VA The network cameras provide VA (Video Analysis) functions of “Intelligent Motion”, “Intrusion” and “Tampering”. • Video Content Analysis Setting: Check Enable video content analysis box to use a VA function. In order to setup VA function. –...
  • Page 40 VK2-2/4MPXBIR28V12M User Manual V1.0 * Intelligent Motion: Once selected, blue cells appear on the video preview window. Select cells at the desired position. The following is a description of 'Setting items' for 'Intelligent Motion'. . Rule Name: User can type in the rule name. .
  • Page 41 VK2-2/4MPXBIR28V12M User Manual V1.0 2) Event Out ∇ SMTP(E-Mail) The network camera can be configured to send event and error email messages via SMTP (Simple Mail Transfer Protocol). • SMTP (E-Mail) Setting: Select “Enable” to activate the SMTP operation. – Sender: Enter an email address to be used as the sender for all messages sent by the network camera.
  • Page 42 VK2-2/4MPXBIR28V12M User Manual V1.0 • SMTP (E-Mail) Test: User can check the SMTP setting via a sample email. – Receiver: Enter an email address and click the Test button to test that the mail servers are functioning and that the email address is valid. When the settings are complete, click Save button to save the settings, or click Reset button to clear all of the information you entered without saving it.
  • Page 43 VK2-2/4MPXBIR28V12M User Manual V1.0 – Pre-event: A pre-event buffer contains images from the time immediately preced- ing the event trigger. These are stored internally in the server. This buffer can be very useful when checking to see what happened to cause the event trigger. Check the box to enable the pre-trigger buffer, enter the desired total length in seconds, minutes or hours, and specify the required image frequency.
  • Page 44 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ Audio Alert When the network camera detects an event, it can output a predefined audio data to external speaker. Check the “Enable audio alert” box to enable the service. • Audio Alert Setting To use the audio alert with the network camera, an audio data file made by user must be uploaded from your PC.
  • Page 45 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ Record When the network camera detects an event, it can record the video stream onto the Micro SD Memory (not supplied) or NAS (Network Attached Device) as a storage device. Check the “Enable Record” box to enable the service. •...
  • Page 46 VK2-2/4MPXBIR28V12M User Manual V1.0 to selection. – SD: Mounted SD card. – CIFS: A file format for a NAS device. – NFS: A file format for a NAS device. NOTE 1: Common Internet File System (CIFS) is a remote file access protocol that forms the basis for Windows file sharing, network printing, and various other network services.
  • Page 47 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ XML Notification When the network camera detects an event, Notification server is used to receive notification messages as a type of XML data format. Check the box to enable the service. • XML Notification Setting: –...
  • Page 48 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ Boost The Boost feature is used in conjunction with event detection. When this feature is turned ON, the Frame rate and Bit rate in the boost condition can be set to a different value than the ones in the normal condition field.
  • Page 49 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ Notification Server When the network camera detects an event, the Notification Server is used to receive up- loaded image files and/or notification messages. Check the box to enable the service. • Notification Server Setting: – Type: User can select message transmission type among HTTP, HTTPS, TCP, and UTP.
  • Page 50 VK2-2/4MPXBIR28V12M User Manual V1.0 3) Event Map The event map allows you to change the settings and establish a schedule for each event trigger from the network camera; up to a max. 15 events can be registered. Click the Add button to make a new event map; a popup window displays as below. To change an existing event, select that event and click the Modify button;...
  • Page 51 VK2-2/4MPXBIR28V12M User Manual V1.0 • General: Enter the name for a new event map. • Event In: Select an event type in the drop-down list. • Event Out: – E-mail: Select the email addresses you want to notify via email that an event has occurred.

  • Page 52: System

    VK2-2/4MPXBIR28V12M User Manual V1.0 3.6.5 System 1) Information You can enter the system information. This page is very useful when you require device information after installation. • Device Name Configuration: Enter the device name. • Location Configuration: Enter the location information. You can enter up to four locations. When the settings are complete, click Save button to save the settings, or click Reset button to clear all of the information you entered without saving it.
  • Page 53 VK2-2/4MPXBIR28V12M User Manual V1.0 2) Security ∇ Users User access control is enabled by default when the administrator sets the root password on first access. New users are authorized with user names and passwords, or the administrator can choose to allow anonymous viewer login to the Live View page, as described below: •...
  • Page 54 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ HTTPS For greater security, the network camera can be configured to use HTTPS (Hypertext Trans- fer Protocol over SSL (Secure Socket Layer)). Then all communication that would otherwise go via HTTP will instead go via an encrypted HTTPS connection. •...
  • Page 55 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ IP Filtering Checking the Enable IP address filtering box enables the IP address filtering function. Up to 256 IP address entries may be specified (a single entry can contain multiple IP ad- dresses). Click the Add button to add new filtered addresses. When the IP address filter is enabled, addresses added to the list are set as allowed or de- nied addresses.
  • Page 56 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ OpenVPN OpenVPN is a Virtual Private Network using OpenSSL authentication. User can set the camera in either Server mode or Client mode. • OpenVPN Server Mode Select Enable openVPN activates mode selection buttons. Choose Server mode, then Server Mode Configuration appears where you can configure Server Mode Settings.
  • Page 57 VK2-2/4MPXBIR28V12M User Manual V1.0 • OpenVPN Client Mode Select Enable openVPN activates mode selection buttons. Choose Client mode, then Client Mode Configuration appears where you can configure Client Mode Settings. In Client Mode Configuration, you can setup Server URL, Protocol type, Port num- ber, LZO usage, and Renegotiation time.
  • Page 58 VK2-2/4MPXBIR28V12M User Manual V1.0 3) Date & Time • Current Server Time This displays the current date and time (24h clock). The time can be displayed in 12h clock format (see below). • New Server Time – Time zone Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight savings time, check the box “Automatically adjust for daylight saving time changes”.
  • Page 59 VK2-2/4MPXBIR28V12M User Manual V1.0 4) Network ∇ Basic • IP Address Configuration: – Obtain IP address via DHCP: Dynamic Host Configuration Protocol (DHCP) is a protocol that lets network administrators centrally manage and automate the assignment of IP addresses on a network. DHCP is enabled by default. Although a DHCP server is mostly used to set an IP address dynamically, it is also possible to use it to set a static, known IP address for a particular MAC address.
  • Page 60 VK2-2/4MPXBIR28V12M User Manual V1.0 – Obtain DNS Server via DHCP: Automatically use the DNS server settings pro- vided by the DHCP server. – Use the following DNS server address to enter the desired DNS server by spec- ifying the following: ·...
  • Page 61 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ DDNS • Internet DDNS (Dynamic Domain Name Service) When using the high-speed Internet with the telephone or cable network, users can operate the network camera on the floating IP environment in which IPs are changed at every access.
  • Page 62 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ Create a setting for sending and receiving an audio or video on a real-time basis. These settings are the IP address, port number, and Time-To-Live value (TTL) to use for the media stream(s) in multicast H.264 format. Only certain IP addresses and port numbers should be used for multicast streams.
  • Page 63 VK2-2/4MPXBIR28V12M User Manual V1.0 many network cameras or users, a higher value may cause a heavy load to the network. Consult with a network manager for detailed information. – Always enable multicast: Check the box to start multicast streaming without opening an RTSP session.
  • Page 64 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ Quality of Service (QoS) provides the means to guarantee a certain level of a specified re- source to selected traffic on a network. Quality can be defined as a maintained level of bandwidth, low latency, and no packet losses. The main benefits of a QoS-aware network are: The ability to prioritize traffic and thus allow critical flows to be served before flows with lesser priority.
  • Page 65 VK2-2/4MPXBIR28V12M User Manual V1.0 – Automatic frame rate: Selected if not influenced by a network-related program or equipment without a limitation on the network bandwidth. When the settings are complete, click Save button to save the settings, or click Reset button to clear all of the information you entered without saving it.
  • Page 66 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ Zeroconf Zero configuration networking (zeroconf) is a set of techniques that automatically creates a usable Internet Protocol (IP) network without manual operator intervention or special config- uration servers. Zero configuration networking allows devices such as computers and printers to connect to a network automatically.
  • Page 67 VK2-2/4MPXBIR28V12M User Manual V1.0 ∇ Bonjour The network camera includes support for Bonjour. When enabled, the network camera is automatically detected by operating systems and clients that support this protocol. Click the check box to enable Bonjour. Enter a name in the Friendly name field. NOTE: Also known as zero-configuration networking, Bonjour enables devices to automat- ically discover each other on a network, without having to enter IP addresses or configure DNS servers.
  • Page 68 VK2-2/4MPXBIR28V12M User Manual V1.0 5) Language Select a user language. The language choices are English, Korean, French, German, Rus- sian and Chinese. When the settings are complete, click Save button to save the settings, or click Reset button to clear all of the information you entered without saving it.
  • Page 69 VK2-2/4MPXBIR28V12M User Manual V1.0 6) Maintenance • Maintenance: – Restart: The unit is restarted without changing any of the settings. Use this method if the unit is not behaving as expected. – Reset: The unit is restarted and most current settings are reset to factory default values.
  • Page 70 VK2-2/4MPXBIR28V12M User Manual V1.0 7) Support The support page provides valuable information on troubleshooting and contact information, should you require technical assistance. • Log Search: The network camera supports system and event log information. Click the log Search button to search the Access, Event, Setup or Control log data. •...
  • Page 71 VK2-2/4MPXBIR28V12M User Manual V1.0 – System Check: Click the System Check button to get the important information about the cameras system resources. You can see the pop-up window below. – Media Check: Click the Media Check button to get the information about the cameras video and audio stream.

  • Page 72: Help

    VK2-2/4MPXBIR28V12M User Manual V1.0 3.7 Help The Help information window will be provided as a popup window so that users can open and read it without needing to log-in. It will offer a description of the setting and Help page so that users can manipulate the network camera without a reference to the manual.

  • Page 73: A Appendix

    VK2-2/4MPXBIR28V12M User Manual V1.0 A Appendix A.1 Troubleshooting Troubleshooting if problems occur, verify the installation of the network camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problems/Symptoms Possible Causes or Corrective Actions The camera cannot be ac-...

  • Page 74: Alarm Connection

    VK2-2/4MPXBIR28V12M User Manual V1.0 A.2 Alarm Connection The following connection diagram gives an example of how to connect a network camera. A.3 Preventive Maintenance Preventive maintenance allows detection and correction of minor that faults before they be- come serious and cause equipment failure. Every three-month, perform the following maintenance.

  • Page 75: System Requirement For Web Browser

    VK2-2/4MPXBIR28V12M User Manual V1.0 A.4 System Requirement for Web Browser • Operating System: Microsoft Windows OS Series • CPU: Intel Core 2 Duo 2GHz or higher, 1GB RAM or more, 10GB free disk or higher • VGA: AGP, Video RAM 32MB or higher (1024x768, 24bpp or higher) A.5 General Performance Considerations When setting up your system, it is important to consider how various settings and situations will affect performance.

  • Page 76: Product Specification

    VK2-2/4MPXBIR28V12M User Manual V1.0 A.6 Product Specification BULLET NETWORK CAMERA Model Lens MVF 2.8 ~ 12mm, F1.6, P-Iris MVF 2.8 ~ 12mm, F1.6, P-Iris Angle of View 100°(H) ~ 33°(H) 97°(H) ~ 31°(H) 1/2.8” Sony STARVIS CMOS Image Sensor 1/3” CMOS Sensor Color: 0.03Lux@F1.6 Color: 0.14Lux@F1.6 Min.
  • Page 77 VK2-2/4MPXBIR28V12M User Manual V1.0 Security Multi User Authority, IP Filtering, HTTPS, SSL Network Time Sync NTP Server, Synchronized Computer, Manual Software Reset Restart, Reset, Factory Default Hardware Factory Reset Auto Recovery Backup, Restore Remote Upgrade Web Browsing(IE, Chrome, Safari, Firefox), SmartManager SD Recording Mode Event, Continuous NETWORK...
  • Page 78 VK2-2/4MPXBIR28V12M User Manual V1.0 NETWORK CAMERA Rev.A...
