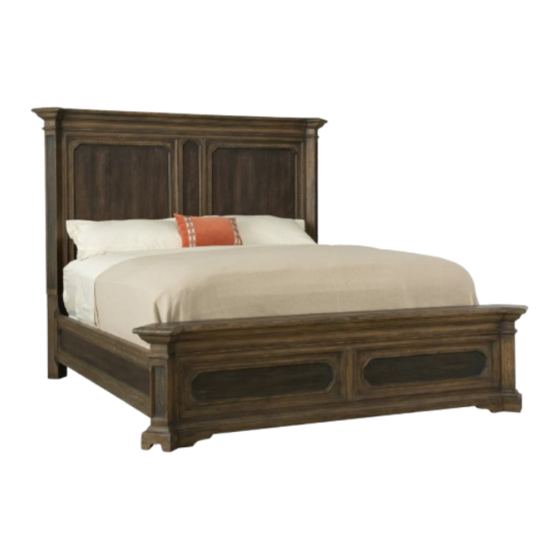

ITEM# 5960-90251-MULTI Woodcreek 5/0 Mansion Headboard
5960-90252-MULTI Woodcreek 5/0 Mansion Footboard
5960-90267-MULTI Woodcreek 6/0-6/6 Mansion Headboard
5960-90268-MULTI Woodcreek 6/0-6/6 Mansion Footboard
5960-90253-MULTI Woodcreek 5/0-6/6 Rails
5960-90263-MULTI Woodcreek 6/0 Rails

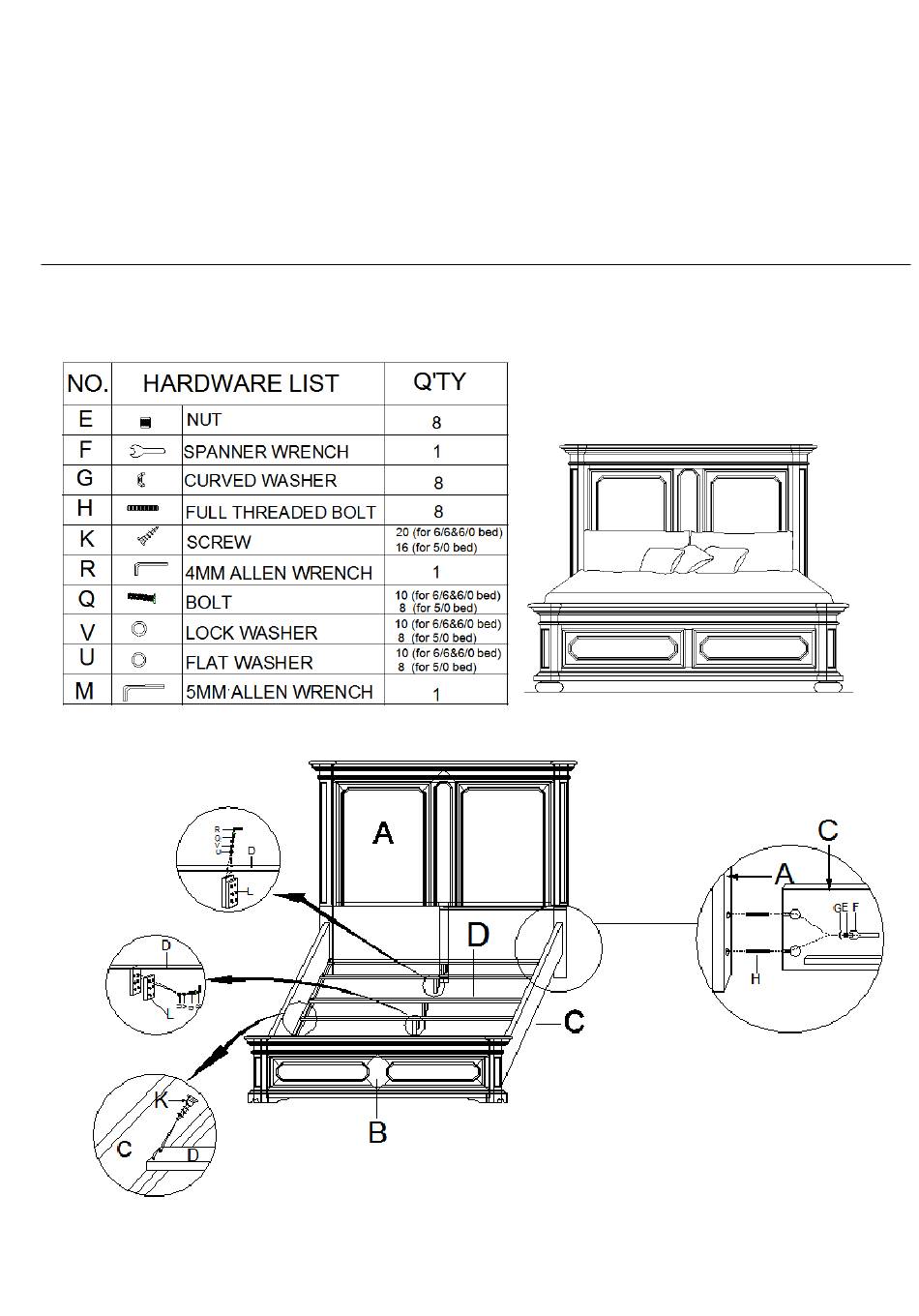

Caution: Please make sure you have all parts indicated below prior to assembly.
This bed is heavy and can best be assembled with the help of two or more people.
Diagram 2
Diagram 5
Diagram 3
ASSEMBLY INSTRUCTION
1/3
Diagram 1
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 5960-90251-MULTI
Summary of Contents for Hooker Furniture 5960-90251-MULTI
- Page 1 ASSEMBLY INSTRUCTION ITEM# 5960-90251-MULTI Woodcreek 5/0 Mansion Headboard 5960-90252-MULTI Woodcreek 5/0 Mansion Footboard 5960-90267-MULTI Woodcreek 6/0-6/6 Mansion Headboard 5960-90268-MULTI Woodcreek 6/0-6/6 Mansion Footboard 5960-90253-MULTI Woodcreek 5/0-6/6 Rails 5960-90263-MULTI Woodcreek 6/0 Rails Caution: Please make sure you have all parts indicated below prior to assembly.
- Page 2 Please note the hardware bag to assemble side rails to HB&FB is in the box of side rails. Assembly steps: 1. Insert 2 bolts (H) into holes of each side post on Headboard (A) and Footboard (B), attach the ends of side rails (C) to bolts (H) on posts by using 2 curved washers (G) and 2 nuts (E), tighten nuts (E) securely with spanner wrench (F).
- Page 3 Note: You can change the height of slats by adjusting the height of cleats on side rail as shown in diagram 4. Remove bolts (I), lock washers (O) and flat washers (J) from the cleats by turning the bolts (I) with allen wrench (M) in anti-clockwise direction. Adjust the cleats to a desired position, and then secure lock washers, flat washers, bolts in clockwise direction by turning with allen wrench.
