Hooker Furniture Hill Country 5960-10446-MULTI Assembly Instructions

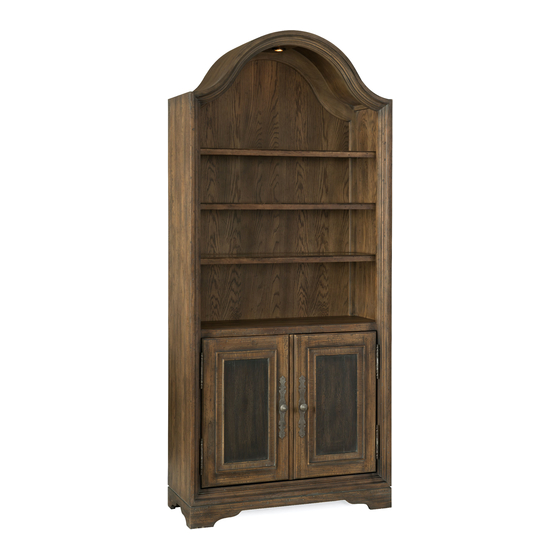

Pleasanton bunching bookcase

ASSEMBLY INSTRUCTION

(for connecting the wire of the light on this b

)

ookcase

Item#: 5960-10446-MULTI Pleasanton Bunching Bookcase

***

Caution: Please read all instructions carefully before starting the assembly process.

Please note this bookcase can be used alone with can light on by a touch dimmer. Also, when

two or more are bunched together, you can control all can lights by touching one dimmer.

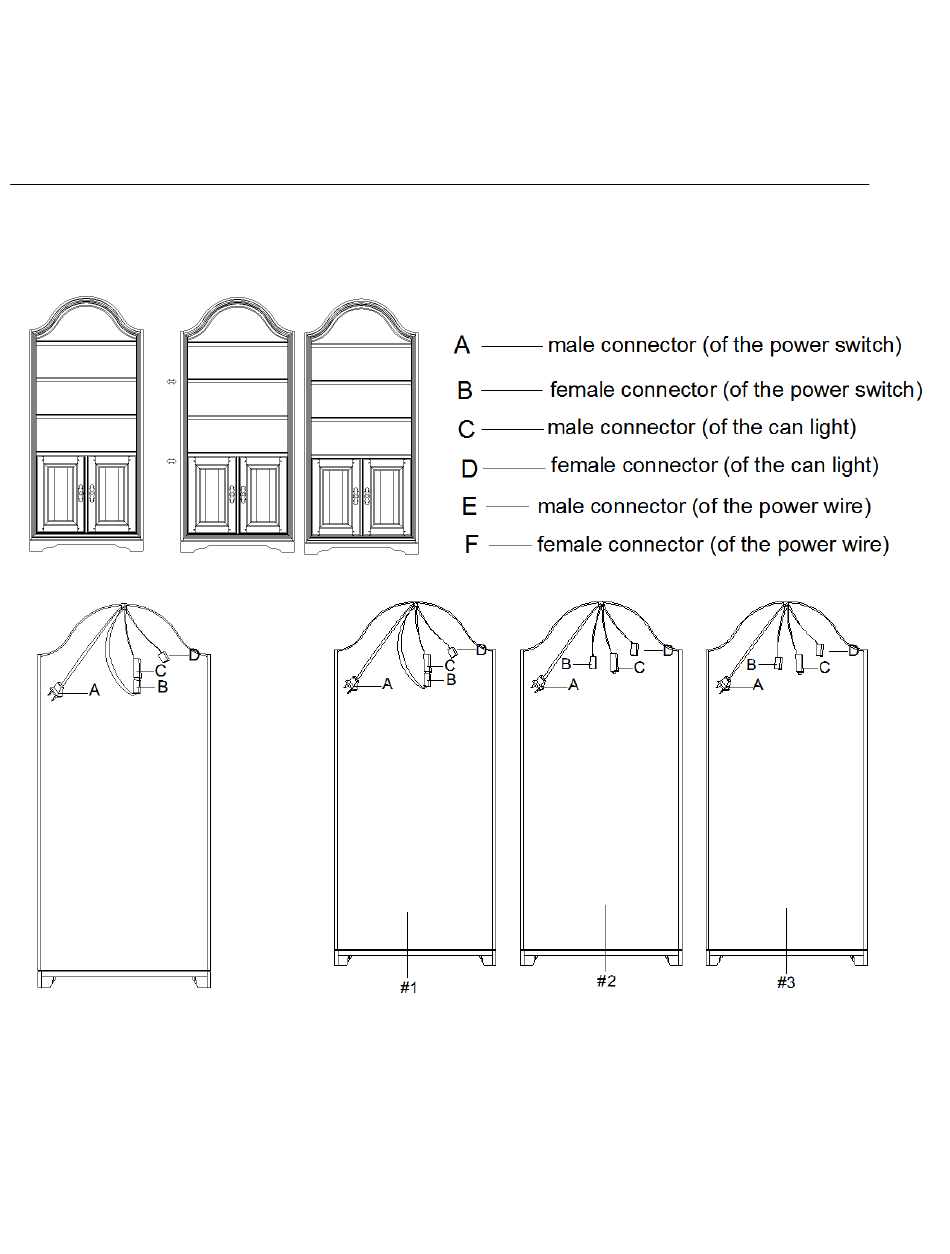

Diagram 1

Diagram 2

Assembly steps:

1. When each piece of bookcase is used alone, attach male connector of the power switch (A) to a

wall plug. (see diagram 1)

1/2

Table of Contents

Do you have a question about the Hill Country 5960-10446-MULTI and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTION (for connecting the wire of the light on this b ookcase Item#: 5960-10446-MULTI Pleasanton Bunching Bookcase Caution: Please read all instructions carefully before starting the assembly process. Please note this bookcase can be used alone with can light on by a touch dimmer. Also, when two or more are bunched together, you can control all can lights by touching one dimmer.
Page 2 2. Touch dimmer is at the inside of right post. 3. If you want to bunch two or more bookcases together, place them all side by side in a desired location. 4. Leave male connector of the can light (C) and female connector of power Switch (B) for the first bookcase (#1) as it is.
