P.O Box 578 Casino, NSW, 2470 Australia
Phone: International ++614 2902 9083
Australia (04) 2902 9083
Website:
http://rcs-rc.com
E mail:
Info@rcs-rc.com
TX-5vL
Digital Proportional R/C
THE PRIMARY PURPOSE OF THE TX-5vL IS FOR CONTROLLING LIVE STEAM LOCOS.
THE SECONDARY PURPOSE IS FOR USE WITH CENTRE OFF ESC's.
WE NOW RECOMMEND USING THE TX-5vL WITH RCS ESC's THAT USE THE BV1 OPERATING PROGRAM.
THESE INSTRUCTIONS REFER SPECIFICALLY TO THE
When used with battery powered locos they should be read in conjunction with the RCS ESC you are using.
SMALL KNOB SETS THE VALVE GEAR.
300º KNOB CONTROL OF REGULATOR.
2 X 300º KNOB CONTROL SERVO FOR
OTHER FUNCTIONS SUCH AS
DRAINCOCKS, BLOWERS ETC.
1 X FULL MOVEMENT SERVO.
CAN ALSO BE USED WITH MOST RCS "LOW OFF" & "CENTRE OFF" ESC's.
When used for battery R/C you will supply a locomotive or trail car, the 14 – 24 volt traction batteries (depending on ESC), a fuse,
ON-OFF switch and wires where necessary, to connect the ESC to the battery and motor(s).
Where soldering is necessary, we recommend a low wattage soldering iron and resin core solder.
TO AVOID CONFUSION WITH OTHER OPERATORS, WE SUGGEST YOU MARK THE TX TO SHOW THE OPERATORS NAME.
DO NOT ATTEMPT TO ALTER THE TUNING OF THE RADIO EQUIPMENT.
DO NOT USE RADIO CONTROL EQUIPMENT IN THUNDERSTORMS.
CHILDREN UNDER 12:
RCS TX & RX PRODUCTS MUST NOT BE USED FOR CONTROLLING RIDE ON LOCOMOTIVES CAPABLE OF
Thank you for purchasing this DSM2 5 channel TX handpiece.
INSTRUCTION MANUAL

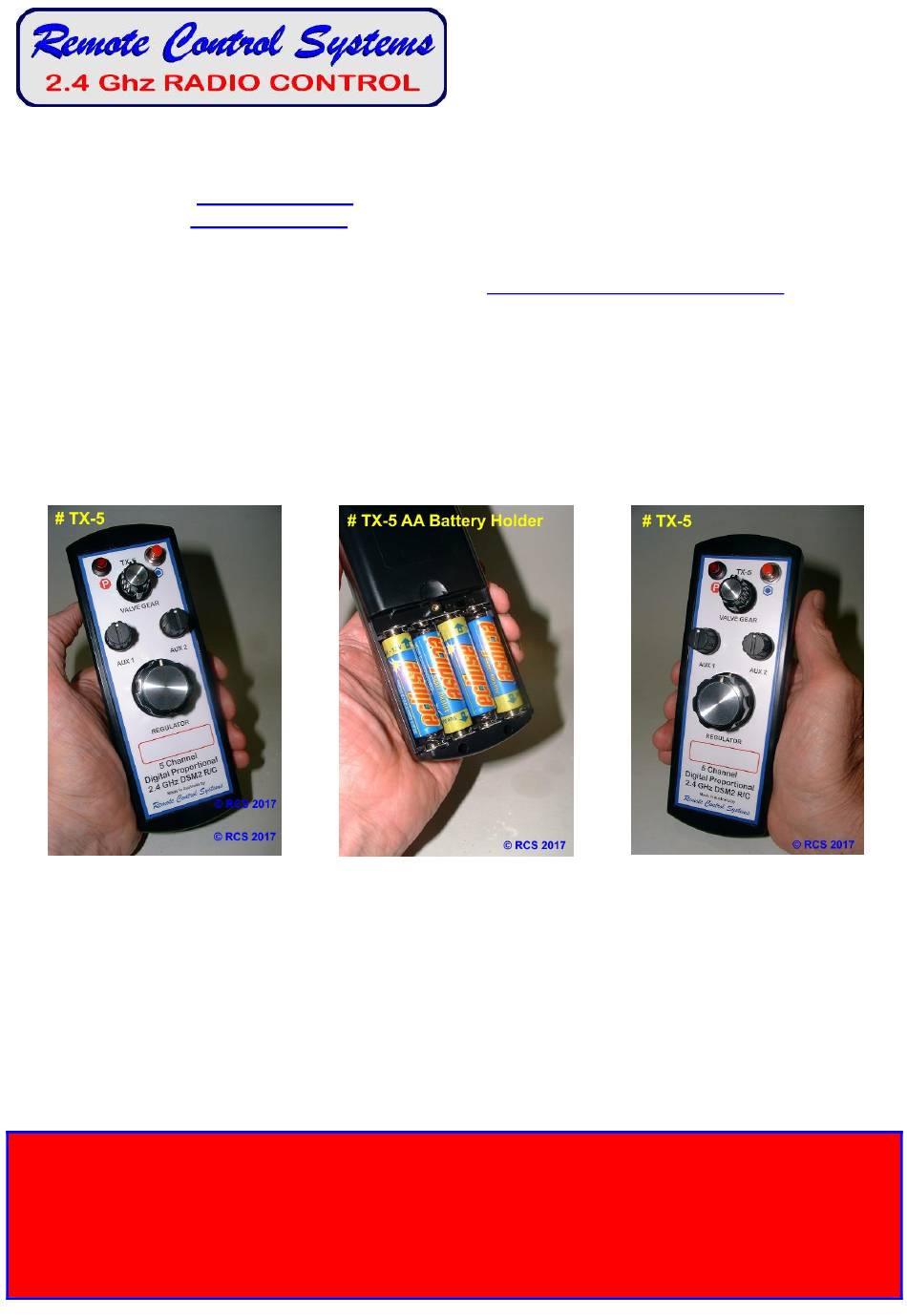

REMOVE REAR OF TX-5VL TO INSERT
4 X AA BATTERIES OF ANY SORT.
POLARITY IS IMPORTANT!!!
PRIMARY USE IS WITH LIVE STEAM LOCOS.
THE TX-5vL IS GUARANTEED FOR ONE YEAR.
CAUTION
ADULT SUPERVISION RECOMMENDED DURING USE.
CARRYING MEMBERS OF THE GENERAL PUBLIC.
TABLE OF CONTENTS
PROVIDED IN INSTRUCTIONS.
Page # 1 Introduction.
Page # 2 Preparing the TX-5vL. Binding.
Page # 3 Preparing & driving Live Steam locos.
Page # 4 Diagrams of servo connections.
Page # 5 Using W/Centre OFF battery R/C ESC's.
Page # 6 Using W/Low OFF battery R/C ESC's.
Other instructions for use with battery R/C are
found with the ESC.
http://www.rcs-rc.com/pages/instructions
DELTANG R/C
BASED TX-5vL HANDPIECE.
ALL FOUR KNOBS CAN BE USED FOR
SETTING DIRECTION & SPEED.
1 X FULL MOVEMENT SERVO.
AUX KNOBS CAN BE USED FOR SOUND
SYSTEM TRIGGERS.
!!
Advertisement
Table of Contents
Related Manuals for Remote Control Systems TX-5vL
Summary of Contents for Remote Control Systems TX-5vL
- Page 1 THE PRIMARY PURPOSE OF THE TX-5vL IS FOR CONTROLLING LIVE STEAM LOCOS. THE SECONDARY PURPOSE IS FOR USE WITH CENTRE OFF ESC’s. WE NOW RECOMMEND USING THE TX-5vL WITH RCS ESC’s THAT USE THE BV1 OPERATING PROGRAM. INSTRUCTION MANUAL THESE INSTRUCTIONS REFER SPECIFICALLY TO THE DELTANG R/C BASED TX-5vL HANDPIECE.
- Page 2 THESE INSTRUCTIONS REFER TO THE 2.4 GHz 5 CHANNEL R/C. LAYOUT OF THE TX-5vL TRANSMITTER HAND PIECE. The valve gear knob is in the upper middle. The steam regulator knob sits just below. Top left is the ON – OFF switch. Top right is the Bind/Ch # 5 pushbutton. (Can be used for uncoupling).
- Page 3 R/C being centered. You can feel the détente when twisting the small knob. Turn TX-5vL hand piece ON before the loco. When the loco is linked turn the big knob fully to the left (CCW). Once steam has been raised select the direction of valve gear with the small knob.
- Page 5 TRAVEL IN REVERSE. TROUBLESHOOTING. The TX-5vL batteries will eventually go flat if left switched on. The TX-5VL operating program will likely be disrupted. The Ch # 1 centering on the TX-5vL system will need to be reset; 1.) Centre the Large Ch# 1 knob.
- Page 6 5. USING THE TX-5vL WITH AN RCS “LOW OFF” ESC’. The TX-5vL can be used with RCS LOW OFF ESC’s such as the OMEGA-3v8k using only program BV1. This TX-5vL hand piece is essentially a 5 channel stick R/C in a smaller case.
