Summary of Contents for Remote Control Systems EVO-BASIC

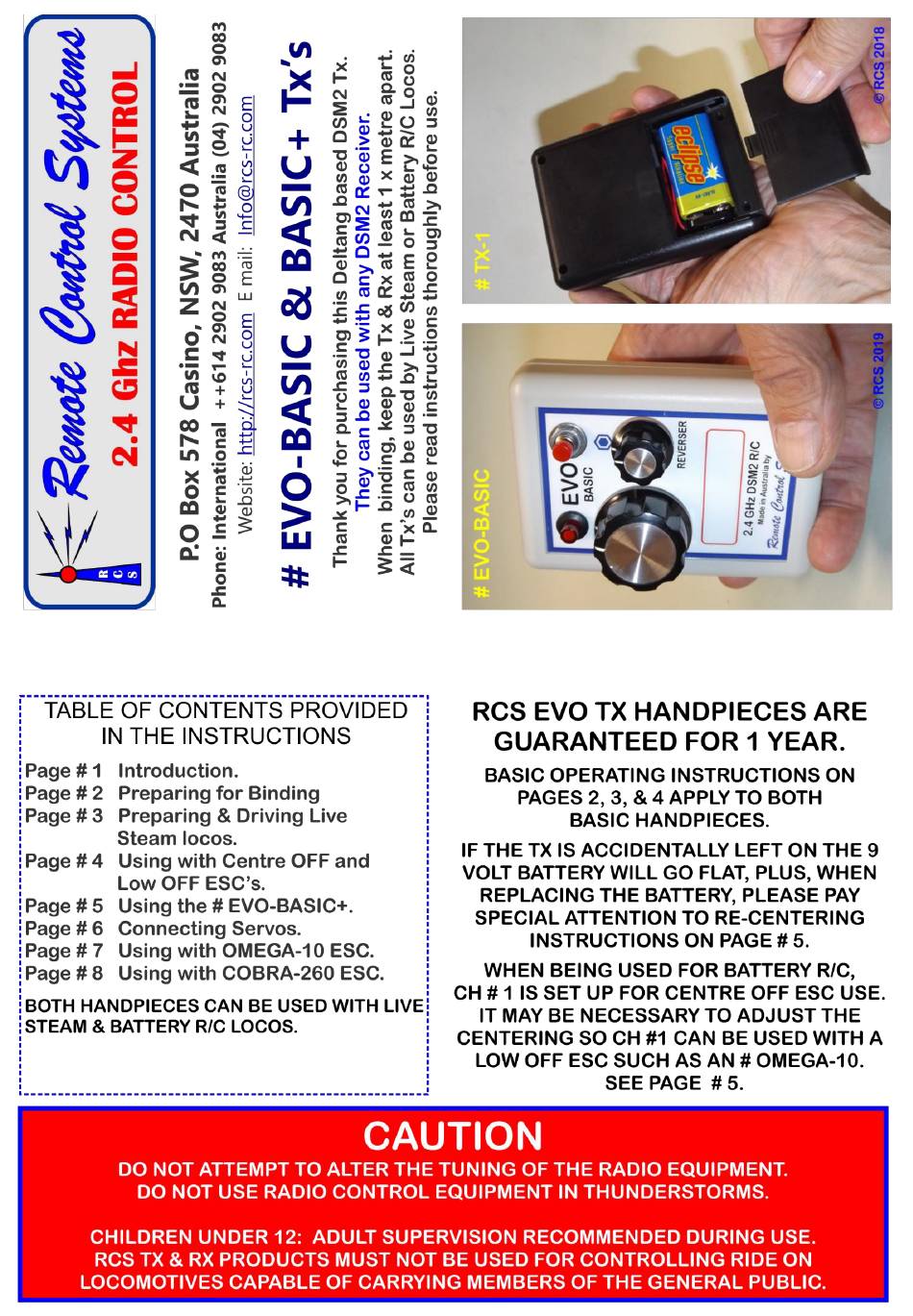

- Page 2 # EVO-BASIC Sound Trigger. There are two available for use with Ch # 5 when using a Low OFF or Centre OFF ESC. The # MRW-RSS single relay & # MRW-SSSS sound triggers control for LGB & other sound equipped locos.
- Page 3 Channel # 1 & Ch # 3 are both 100% (90°) servo throw. This will suit most situations. Turn the # EVO-BASIC handpiece ON. Make sure Rx is OFF. Then re-insert the servos into the correct Rx sockets. The valve gear servo goes in Ch # 3 (Elevator) socket. The regulator servo is controlled by Channel # 1 (Big knob).
- Page 4 Operation is essentially the same as for Live Steam control. See page # 3 for pics and text. This # EVO-BASIC hand piece is a 5 channel stick R/C in a smaller case and using only three channels. Make sure the large throttle knob is fully CCW (OFF) and small knob is centered before you switch the system on.
- Page 5 # EVO-BASIC+ for Live steam locomotives. The two extra buttons can use R/C switches that are able to operate electric motors for water pumps etc. # EVO-BASIC+ for battery R/C locos the two extra pushbuttons on the end plate have 1 x trigger on Ch # 2 & one trigger on Ch # 4.
- Page 6 – 6 –...
- Page 7 – 7 –...
- Page 8 – 8 –...
