P.O Box 578 Casino, NSW, 2470 Australia
Phone: International ++614 2902 9083
Australia (04) 2902
Website:
http://rcs-rc.com
E mail:
Info@rcs-rc.com

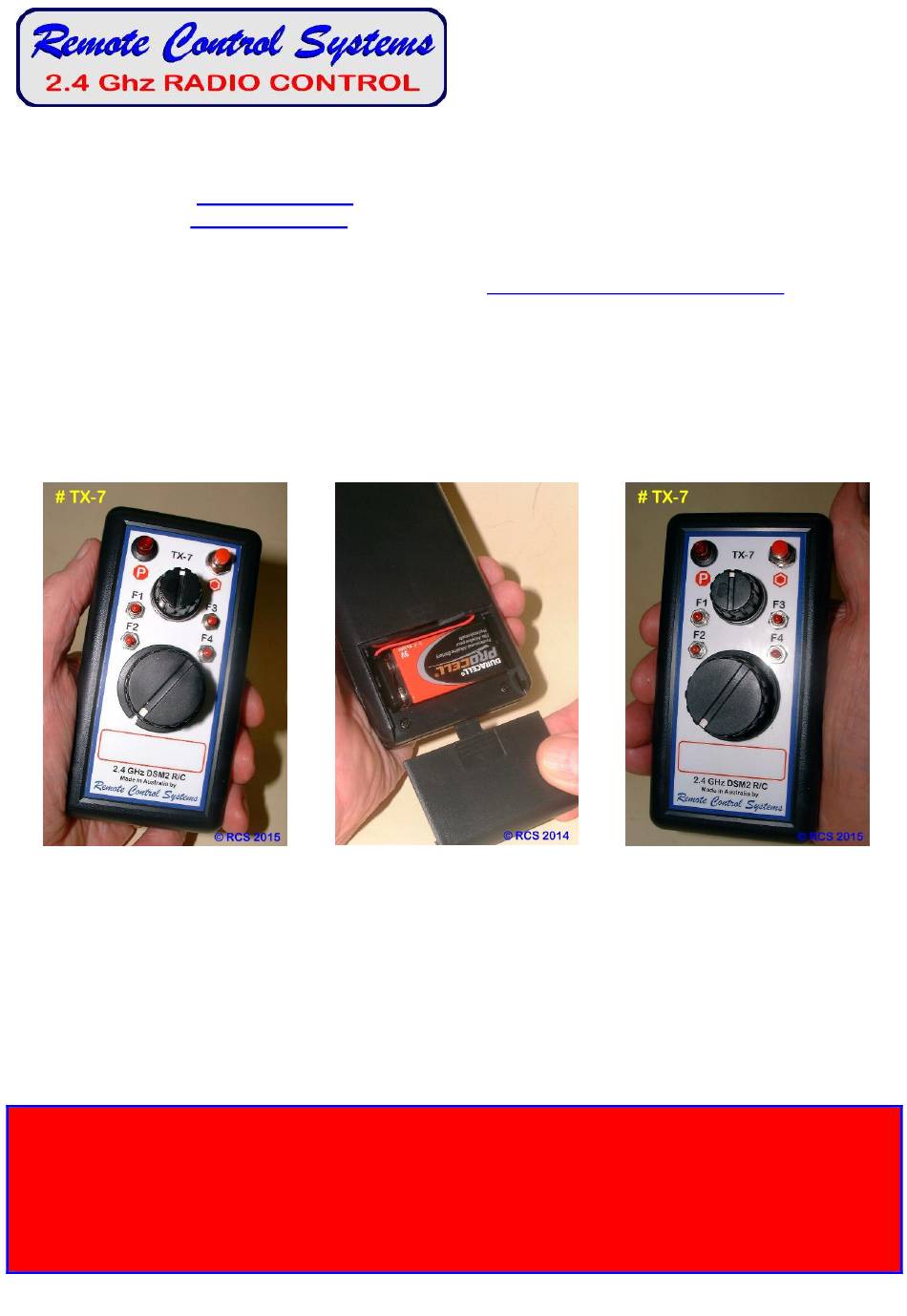

TX-7
Digital Proportional R/C
THE TX-7 IS FOR CONTROLLING LIVE STEAM LOCOS + "LOW OFF" or "CENTRE OFF" BATTERY ESC's.
THESE INSTRUCTIONS REFER SPECIFICALLY TO THE TX-7 HANDPIECE.
WHEN USED FOR LIVE STEAM A
SMALL KNOB SETS THE VALVE GEAR.
300º KNOB CONTROL OF REGULATOR.
1 X FULL THROW SERVO FOR WHISTLE.
2 X 1/2 SERVOTHROWS X 2 X SERVOS
FOR "LOW OFF" BATTERY R/C THE TX-7 MUST USE AN RCS ESC WITH
THE TX-7 CAN BE USED FOR "CENTRE OFF" BATTERY R/C WITH ANY BRAND OF ESC.
When used for battery R/C you will supply a locomotive or trail car, the 14 – 20 volt traction batteries (depending on ESC), a fuse,
ON-OFF switch and wires where necessary, to connect the ESC to the battery and motor(s).
Where soldering is necessary, we recommend a low wattage soldering iron and resin core solder.
TO AVOID CONFUSION WITH OTHER OPERATORS, WE SUGGEST YOU MARK THE TX TO SHOW WHICH LOCO IT IS OPERATING.
DO NOT ATTEMPT TO ALTER THE TUNING OF THE RADIO EQUIPMENT.
DO NOT USE RADIO CONTROL EQUIPMENT IN THUNDERSTORMS.
CHILDREN UNDER 12:
RCS TX & RX PRODUCTS MUST NOT BE USED FOR CONTROLLING RIDE ON LOCOMOTIVES CAPABLE OF
Thank you for purchasing this DSM2 5 channel TX handpiece.
INSTRUCTION MANUAL
They should be read in conjunction with the RCS ESC you are using.
REMOVE REAR OF TX-7 TO INSERT
THE 9 VOLT BATTERY.
LED BLINKS WHEN BATTERY LOW.
THE TX-7 IS GUARANTEED FOR ONE YEAR.
CAUTION
ADULT SUPERVISION RECOMMENDED DURING USE.
CARRYING MEMBERS OF THE GENERAL PUBLIC.
TABLE OF CONTENTS
PROVIDED IN INSTRUCTIONS.
Page # 1 Introduction.
Page # 2 Preparing the TX-7. Binding.
Page # 3 Preparing & driving Live Steam locos.
Page # 4 Hooking up servos.
Page # 5 Additional lighting.
Page # 6 Using with a battery R/C ESC.
Specific instructions for use with battery R/C are
found with the ESC.
http://www.rcs-rc.com/pages/instructions
WHEN USED FOR BATTERY R/C
SMALL KNOB SETS THE DIRECTION.
300º KNOB CONTROLS SPEED.
1 X BUTTON FOR SERVO UNCOUPLE.
4 X SOUND SYSTEM TRIGGERS.
BV1.
!!
Advertisement
Table of Contents
Related Manuals for Remote Control Systems TX-7
Summary of Contents for Remote Control Systems TX-7
- Page 1 Digital Proportional R/C Thank you for purchasing this DSM2 5 channel TX handpiece. THE TX-7 IS FOR CONTROLLING LIVE STEAM LOCOS + “LOW OFF” or “CENTRE OFF” BATTERY ESC’s. INSTRUCTION MANUAL THESE INSTRUCTIONS REFER SPECIFICALLY TO THE TX-7 HANDPIECE.
- Page 2 – 2 – PREPARING THE #TX-7 RCS TX-7 THESE INSTRUCTIONS REFER TO THE 2.4 GHz 5 CHANNEL R/C. LAYOUT OF THE TX-7kTRANSMITTER HAND PIECE. The small valve gear knob is in the upper middle (Ch # 3). The larger steam regulator knob sits just below (Ch # 1).
- Page 3 There are 4 x small pushbuttons that provide 2 x ½ servo throws on 2 x servos. See diagrams. NEUTRAL OFF POSITION OF SETTING THE VALVE GEAR SETTING THE VALVE GEAR TURN BIG KNOB CW TO THE TX-7 FOR LIVE STEAM. FOR FORWARDS. FOR REVERSE INCREASE SPEED...
- Page 6 The TX-7 can be used with RCS LOW OFF ESC’s such as the OMEGA-3v8k using the BV1 operating program. This TX-7 hand piece is essentially a 5 channel stick R/C in a smaller case and using all five channels. Make sure the large throttle knob is fully CCW (OFF) and small knob is centered before you switch the system on.
