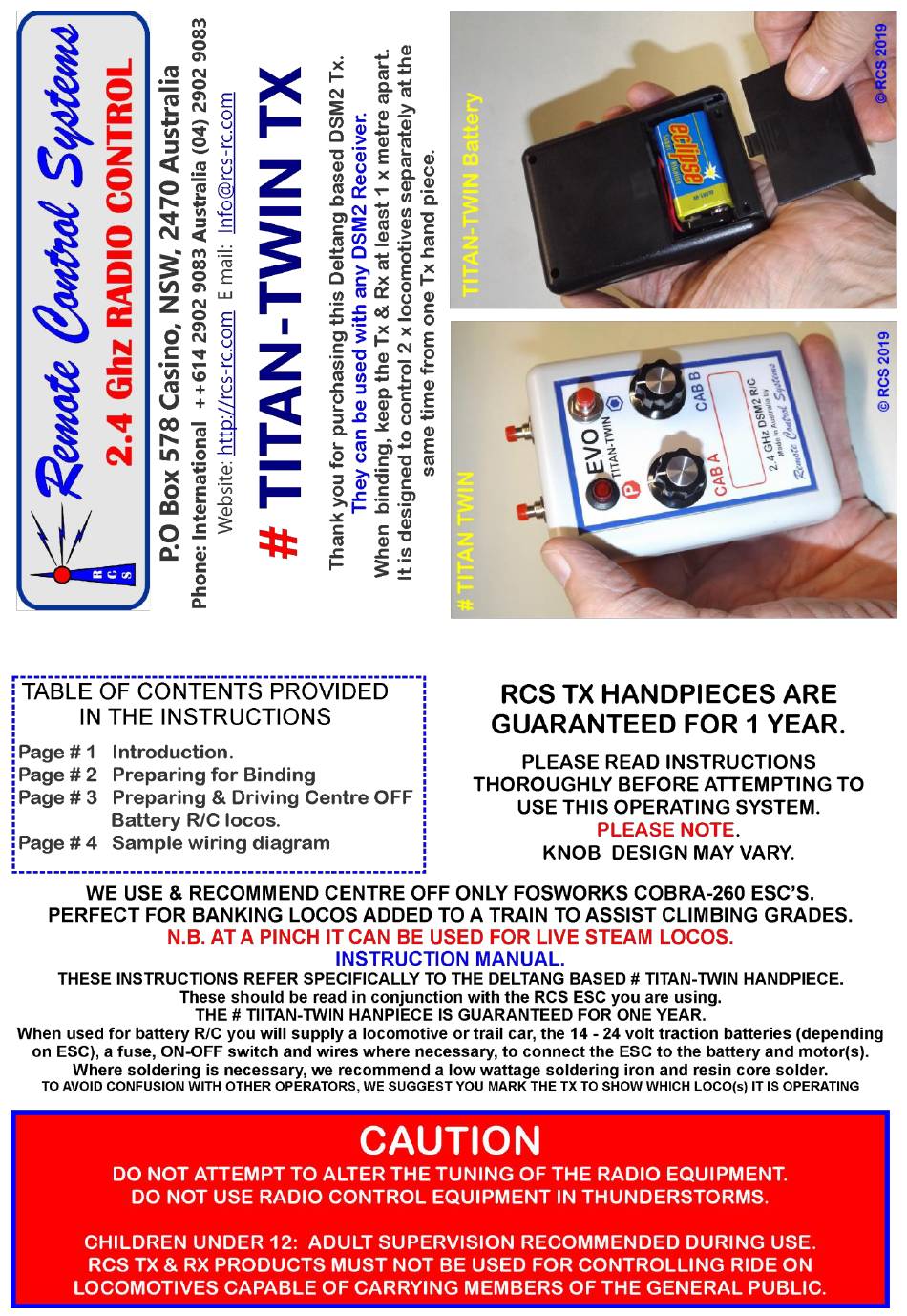

Remote Control Systems TITAN-TWIN TX Manual

Table of Contents

Need help?

Do you have a question about the TITAN-TWIN TX and is the answer not in the manual?

Page 2 – 2 – PREPARING THE #TITAN-TWIN. RCS # TITAN-TWIN. THESE INSTRUCTIONS REFER TO THE 2.4 GHz 5 CHANNEL R/C. N.B. CAB “A” and CAB “B” both have the standard 90° (100%) servo throw requirement. 1. “BINDING”. Unless they are already bound, the 1st procedure is to once only “BIND” the receiver(s) (Rx’s) to the Transmitter (TX). When binding two Rx’s to the one Tx handpiece we recommend doing so one at a time.
Page 3 - 3 - 2. USING THE # TITAN-TWIN WITH A “CENTRE OFF” ESC. GENERAL INFORMATION. CAB “A” NEUTRAL CAB “A” FORWARDS CAB “A” REVERSE The # TITAN-TWIN handpieces are one regular 4 x channel TX split in half. There are two knobs. One for each cab. Both knobs must be centred at the détente click. The white dot or stripe on the knob should be facing forwards when firstly the TX and then the Loco(s) are turned ON.
