Remote Control Systems BIK-TC2 Quick Start Manual

R 2.4 Ghz
C RADIO
S CONTROL
PO BOX 578 CASINO, NSW 2470, AUSTRALIA
PHONE: INTERNATIONAL ++614 2902 9083
AUSTRALIA (04) 2902 9083
Web: http://www.rcs-rc.com Email: rcs@rcs-rc.com
RCS # BIK-TC2.
DIY INSTALLATION KIT FOR TRAIL CARS
Use this battery installation kit with any R/C.
It comes rated at 2 or 3 amps.
It comprises the following components:
1 x PCB with ON-OFF switch, charge jack,
polyswitch fuses, screw terminals and an
LED power ON indicator.
2 x purchase of red /black system hook up
wire.
1 x JST 2 x wire cable connector.
It is not necessary to suppress motor noise
Black
Red
Y-Cable is sold
separately.
Black
Chg
OFF - ON
Red
Skt
Red
Black
You will need a small soldering iron, resin
core solder and some heatshrink tubing to
insulate solder joints.
If you anticipate using regular twin stick
NiCd or NiMh battery packs with Tamiya
type connectors on each pack you can also
purchase the # Y-CABLE which will put 2 x
Twin Stick battery packs in series.

INSTALLATION.

1. Place the BIK-TC2 in any suitable
location such as a box car door. You can
mount with double stick tape or a good
quality silicone adhesive. Do not allow
metal objects to touch the rear of the PCB.
Damage to PCB may result.

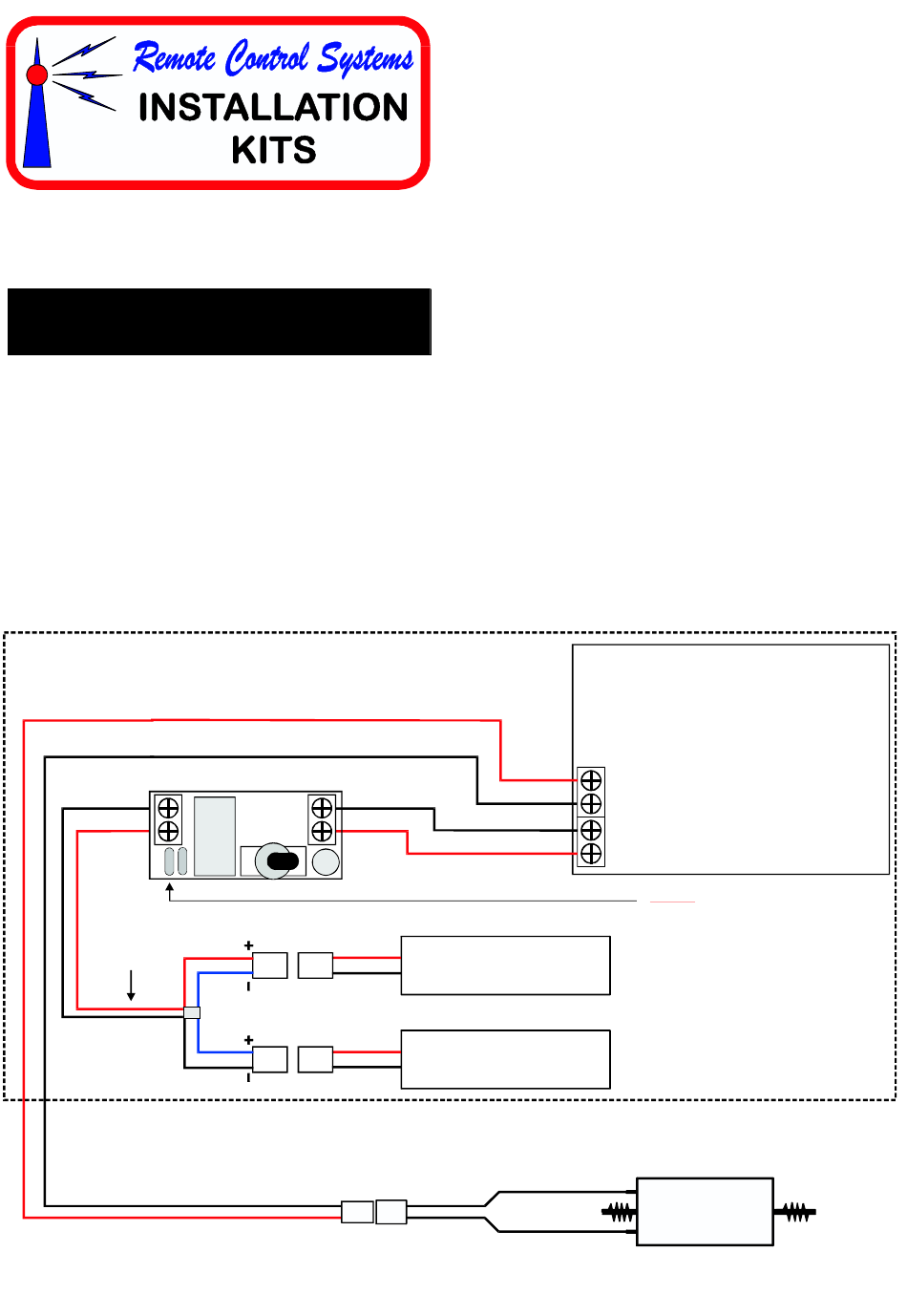

2. Follow the wiring diagram carefully. It is
most important to get the connections
correct. Especially at the ESC.
As various brands of locos are wired
differently we cannot offer "One Size Fits
All" instructions. It is essential the loco
track pick ups be disabled otherwise throttle
output voltage will be transferred to the
track & cause all sorts of problems.
The antenna wire should be kept as high as
possible.
Red
Black
Black
Red
7.2 volt NI-CAD
BATTERY IN TRAIL CAR
7.2 volt NI-CAD
BATTERY IN TRAIL CAR
RCS ESC.
+ Motor out
- Motor out.
- Negative
+ Power IN.
FUSES
Two orange polyswitches.
