P.O Box 578 Casino, NSW, 2470 Australia
Phone: International ++614 2902 9083
Australia (04) 2902 9083
Website:
http://rcs-rc.com
E mail:
info@rcs-rc.com

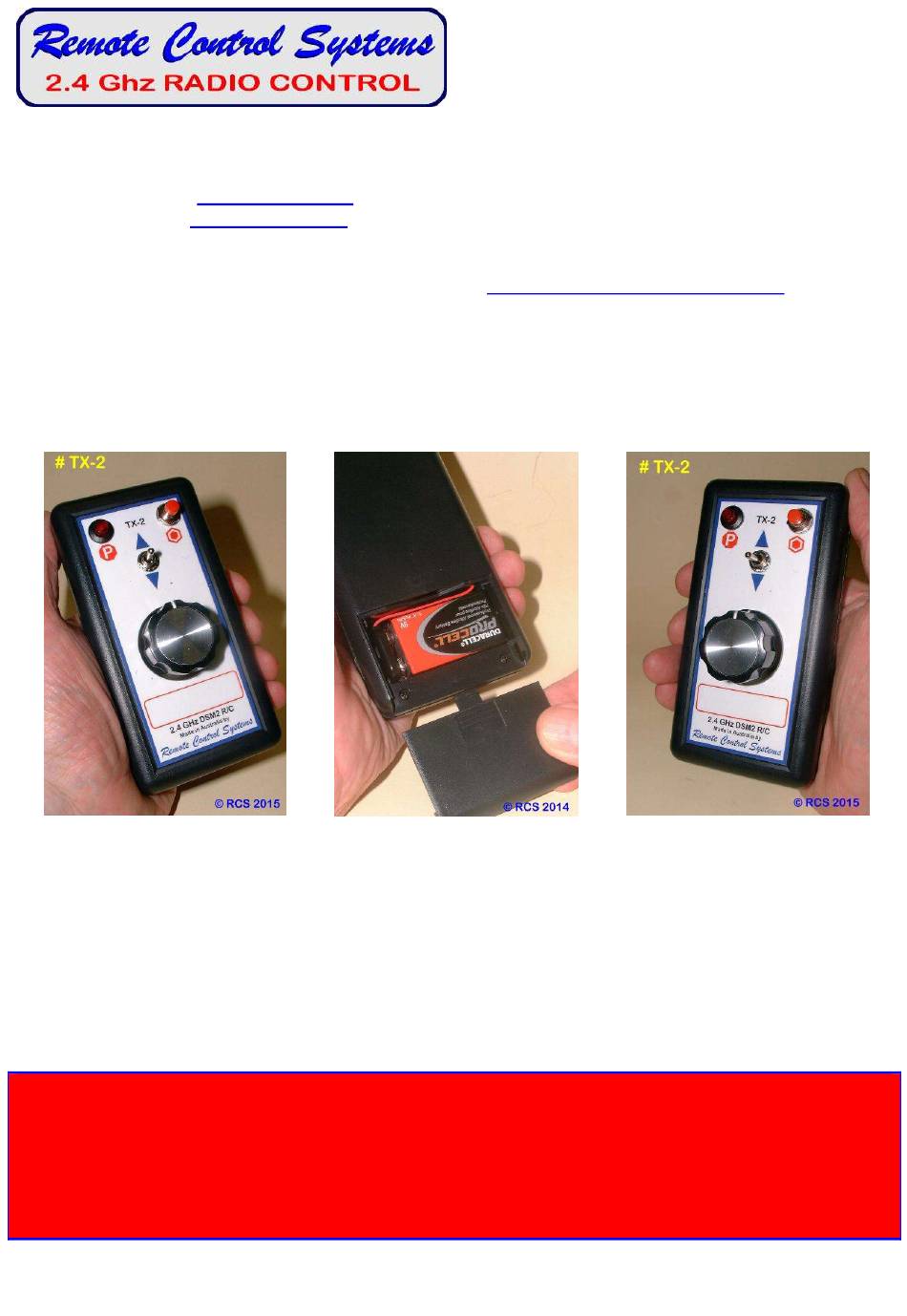

TX-2
Digital Proportional R/C
THESE INSTRUCTIONS REFER SPECIFICALLY TO THE
SWITCH SETS THE DIRECTION.
300º KNOB CONTROL OF REGULATOR.
1 X FULL THROW SERVO FOR WHISTLE.
FOR USE WITH "CENTRE OFF" BATTERY R/C ESC's & MOST RCS "LOW OFF" ESC's.
THE TX-2 IS NOT SUITABLE FOR USE WITH LIVE STEAM LOCOS.
When used for battery R/C you will supply a locomotive or trail car, the 14 – 20 volt traction batteries (depending on ESC), a fuse,
ON-OFF switch and wires where necessary, to connect the ESC to the battery and motor(s).
Where soldering is necessary, we recommend a low wattage soldering iron and resin core solder.
TO AVOID CONFUSION WITH OTHER OPERATORS, WE SUGGEST YOU MARK THE TX TO SHOW WHICH LOCO IT IS OPERATING.
DO NOT ATTEMPT TO ALTER THE TUNING OF THE RADIO EQUIPMENT.
DO NOT USE RADIO CONTROL EQUIPMENT IN THUNDERSTORMS.
CHILDREN UNDER 12:
RCS TX & RX PRODUCTS MUST NOT BE USED FOR CONTROLLING RIDE ON LOCOMOTIVES CAPABLE OF
Thank you for purchasing this DSM2 3 channel TX handpiece.
INSTRUCTION MANUAL
They should be read in conjunction with the RCS ESC you are using.
REMOVE REAR OF TX-2 TO INSERT
THE 9 VOLT BATTERY.
LED BLINKS WHEN BATTERY LOW.
A HIGH QUALITY 9V SNAP IS USED.
THE TX-2 IS GUARANTEED FOR ONE YEAR.
CAUTION
ADULT SUPERVISION RECOMMENDED DURING USE.
CARRYING MEMBERS OF THE GENERAL PUBLIC.
TABLE OF CONTENTS
PROVIDED IN INSTRUCTIONS.
Page # 1 Introduction.
Page # 2 Preparing the TX-2. Binding.
Page # 3 Preparing & driving Live Steam locos.
Page # 4 Connecting servos.
Page # 5 Using with a Centre off battery R/C ESC.
Page # 6 Using with a Low off battery R/C ESC.
Other instructions for use with battery R/C are
found with the ESC.
http://www.rcs-rc.com/pages/instructions
DELTANG R/C
BASED TX-2 HANDPIECE.
WHEN USED FOR BATTERY R/C
LARGE KNOB HAS CENTRE "CLICK" OFF
WITH 150º EITHER SIDE SETS THE
3 X BUTTONS FOR SOUND TRIGGER.
DIRECTION & SPEED.
!!
Advertisement
Table of Contents
Related Manuals for Remote Control Systems TX-2
Summary of Contents for Remote Control Systems TX-2
- Page 1 3 X BUTTONS FOR SOUND TRIGGER. FOR USE WITH “CENTRE OFF” BATTERY R/C ESC’s & MOST RCS “LOW OFF” ESC’s. THE TX-2 IS NOT SUITABLE FOR USE WITH LIVE STEAM LOCOS. THE TX-2 IS GUARANTEED FOR ONE YEAR. When used for battery R/C you will supply a locomotive or trail car, the 14 – 20 volt traction batteries (depending on ESC), a fuse, ON-OFF switch and wires where necessary, to connect the ESC to the battery and motor(s).
- Page 2 THESE INSTRUCTIONS REFER TO THE 2.4 GHz 5 CHANNEL R/C. LAYOUT OF THE TX-2 TRANSMITTER HAND PIECE. The valve gear SWITCH is in the upper middle. The larger speed control knob sits just below. Top left is the ON – OFF switch with LED. Top right is the Bind/Ch # 5 pushbutton. Use for servo whistle.
- Page 3 Twist the knob gently left or right until the loco starts moving. The TX-2 has been designed so that normally twisting the knob to the right (CW) is forwards direction and movement. If the loco runs backwards we reverse the motor wiring to correct the direction and maintain the control standard.
- Page 4 4B. USING THE TX-2 WITH AN RCS “LOW OFF” ESC’. The TX-2 can be used with RCS LOW OFF ESC’s such as the Rx65b, ALPHA-3v2 & OMEGA-3v6k. We use the # Rx65b, ALPHA-3v2 set to “LOW OFF”. The Ch # 5 Bind button is programmed as a sound trigger.
