Eterna POLY10PIR Installation Instructions

LAMP SPECIFICATIONS:
Lumens total flux
Lumens 120° flux
Rated Wattage
Rated luminous flux
Nominal life time of the lamp
Colour temperature
Number of switching cycles
before premature lamp
failure
Warm-up time up to 60 % of
the full light output
Dimmable
LED array dimensions (L/W)
Nominal beam angle
Rated power
Rated lamp lifetime
Lamp power factor
Lumen maintenance factor at
end of nominal life
Starting time
Colour rendering
Colour consistency
Rated peak intensity
Voltage
Not suitable for accent lighting
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
Issue 2015
HELPLINE:
• T: 01933 673 144
• F: 01933 678 083
• E: sales@eterna-lighting.co.uk
PG 6
10W 20W 30W
800 lm 2000 lm 3000 lm
750 lm 1870 lm 2800 lm
9.3W 19.9W 30W
900 lm 2000 lm 3000 lm
25,000 hrs 25,000 hrs 25,000 hrs
4000K 4000K 4000K
15,000 15,000 15,000
Instant full light Instant full light Instant full light
No No No
42 x 22mm 60 x 30mm 77 x 33mm
120° 120° 120°
9.3W 19.9W 30W
25,000 hrs 25,000 hrs 25,000 hrs
>0.9 >0.9 >0.9
≥70% ≥70% ≥70%
<0.5s <0.5s <0.5s
>65 >65 >65
Within 6 step Within 6 step Within 6 step
Macadam ellipse Macadam ellipse Macadam ellipse
326cd 852cd 1300cd
230V 230V 230V
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
1M
Visit our website:
www.eterna-lighting.co.uk
TRADE
PRODUCT:
INFORMATION
AVAILABLE ON
APPLICATION
POLY10PIR / POLY20PIR / POLY30PIR

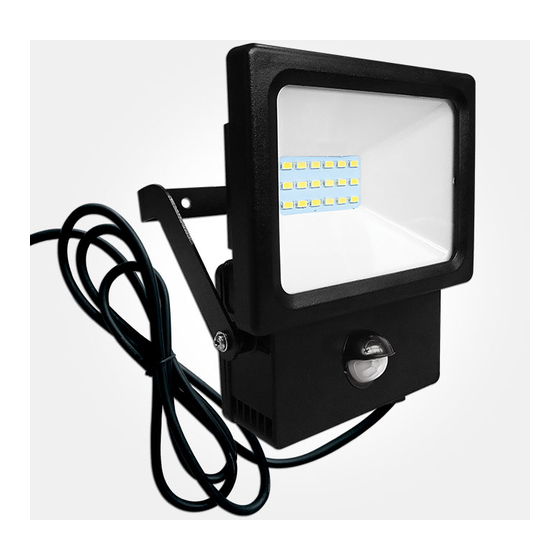

10W / 20W / 30W Polycarbonate LED Floodlights With PIR
Made in China
PLEASE READ THESE INSTRUCTIONS BEFORE USING YOUR NEW FITTING
INSTALLATION INSTRUCTIONS
A guide for qualified electricians
ENERGY
20W
10W
Model:
These instructions are provided as a guideline to assist you.
PLEASE RETAIN FOR FUTURE REFERENCE
30W
Pack contents:
1 x LED floodlight with
PIR complete with 2 core
1.0mm x 0.8m silicone
2
cable and quick fix
mounting bracket
PG 1
