Eterna FL10SMDPIR Installation Instructions

LAMP SPECIFICATIONS:
Lumens total flux
Lumens 120° flux
Rated Wattage
Rated luminous flux
Nominal life time of the lamp
Colour temperature
Number of switching cycles
before premature lamp failure
Warm-up time up to 60 % of
the full light output
Dimmable
Lamp dimensions (H/W)
Nominal beam angle
Rated power
Rated lamp lifetime
Lamp power factor
Lumen maintenance factor at
end of nominal life
Starting time
Colour rendering
Colour consistency
Rated peak intensity
Rated beam angle
Not suitable for accent lighting

EVENTUALLY, YOU MAY WANT TO REPLACE THIS PRODUCT:

Regulations require the recycling of Waste from Electrical and Electronic Equipment (European "WEEE
Directive" effective August 2005—UK WEEE Regulations effective 2nd January 2007). Environment Agency
Registered Producer: WEE/GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE RECYCLE IT
WHERE FACILITIES EXIST - DO NOT DISPOSE WITH HOUSEHOLD WASTE.
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return it to the place where you bought it. Our Technical Team
will gladly advise on any Eterna Lighting product, but may not be able to give specific instructions regarding
individual installations.
Issue 2014
HELPLINE:
• T: 01933 673 144
• F: 01933 678 083
• E: sales@eterna-lighting.co.uk
PG 6
FL10SMDPIR FL20SMDPIR FL30SMDPIR
710 lm 1410 lm 2130 lm
660 lm 1310 lm 1980 lm
11W 21.6W 31.1W
660 lm 1310 lm 1980 lm
30,000 hrs 30,000 hrs 30,000 hrs
4000K 4000K 4000K
15,000 15,000 15,000
Instant full light Instant full light Instant full light
No No No
7 x 22mm 30 x 85mm 30 x 85mm
120° 120° 120°
11W 21.6W 31.1W
30,000 30,000 30,000
≥0.90 ≥0.90 ≥0.90
70% 70% 70%
<0.5 sec <0.5 sec <0.5 sec
≥65 ≥65 ≥65
Within 6 step Within 6 step Within 6 step
Macadam ellipse Macadam ellipse Macadam ellipse
210cd 420cd 630cd
120° 120° 120°
1M
Visit our website:
www.eterna-lighting.co.uk
Installation INSTRUCTIONS
A guide for qualified electricians
10W
Pack contents:

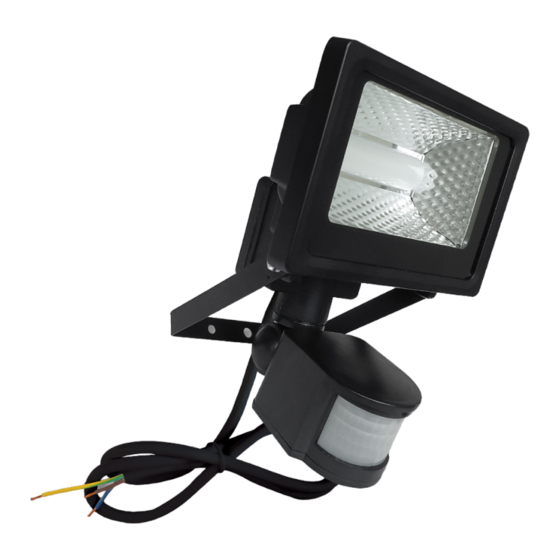

1 x LED SMD floodlight
complete with 3 core
1.0mm 2 x 0.8m silicone
cable, mounting bracket Model:
and PIR
FL10SMDPIR / FL20SMDPIR / FL30SMDPIR
10W / 20W / 30W LED SMD Floodlights With 180° PIR
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE USING YOUR NEW FITTING
PLEASE RETAIN FOR FUTURE REFERENCE
20 & 30W
PG 1
