Eterna POLY10 Installation Instructions

LAMP SPECIFICATIONS:
800 lm 2000 lm 3000 lm
Lumens total flux
750 lm 1870 lm 2800 lm
Lumens 120° flux
Rated Wattage
Rated luminous flux
Nominal life time of the lamp 25,000 hrs
Colour temperature
Number of switching cycles
before premature lamp
failure
Warm-up time up to 60 % of
Instant full light
the full light output
Dimmable
LED array dimensions (L/W) 42 x 22mm
Nominal beam angle
Rated power
Rated lamp lifetime 25,000 hrs
Lamp power factor
Lumen maintenance factor at
end of nominal life
Starting time
Colour rendering
Within 6 step
Colour consistency
Macadam ellipse
Rated peak intensity
Voltage
Not suitable for accent lighting
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
Issue 2015
HELPLINE:
• T: 01933 673 144
• F: 01933 678 083
• E: sales@eterna-lighting.co.uk
10W 20W 30W
9.3W 19.9W 30W
900 lm 2000 lm 3000 lm
25,000 hrs 25,000 hrs
4000K 4000K 4000K
15,000 15,000 15,000
Instant full light Instant full light
No No No
60 x 30mm 77 x 33mm
120° 120° 120°
9.3W 19.9W 30W
25,000 hrs 25,000 hrs
>0.9 >0.9 >0.9
≥70% ≥70% ≥70%
<0.5s <0.5s <0.5s
>65 >65 >65
Within 6 step Within 6 step
Macadam ellipse Macadam ellipse
326cd 852cd 1300cd
230V 230V 230V
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
1M
Made in China
Visit our website:
www.eterna-lighting.co.uk
INSTALLATION INSTRUCTIONS
A guide for qualified electricians
TRADE
PRODUCT:
ENERGY
INFORMATION
AVAILABLE ON
APPLICATION
20W
10W
Model:
POLY10 / POLY20 / POLY30

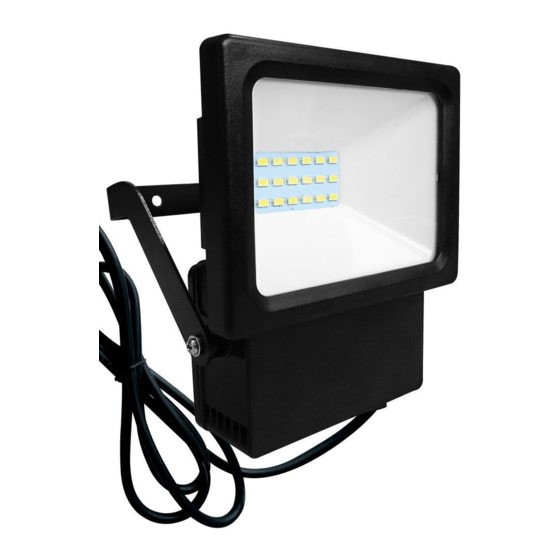

10W / 20W / 30W Polycarbonate LED Floodlights
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
30W
Pack contents:
1 x LED floodlight
complete with 2 core
1.0mm x 0.8m silicone
2
cable and quick fix
mounting bracket
