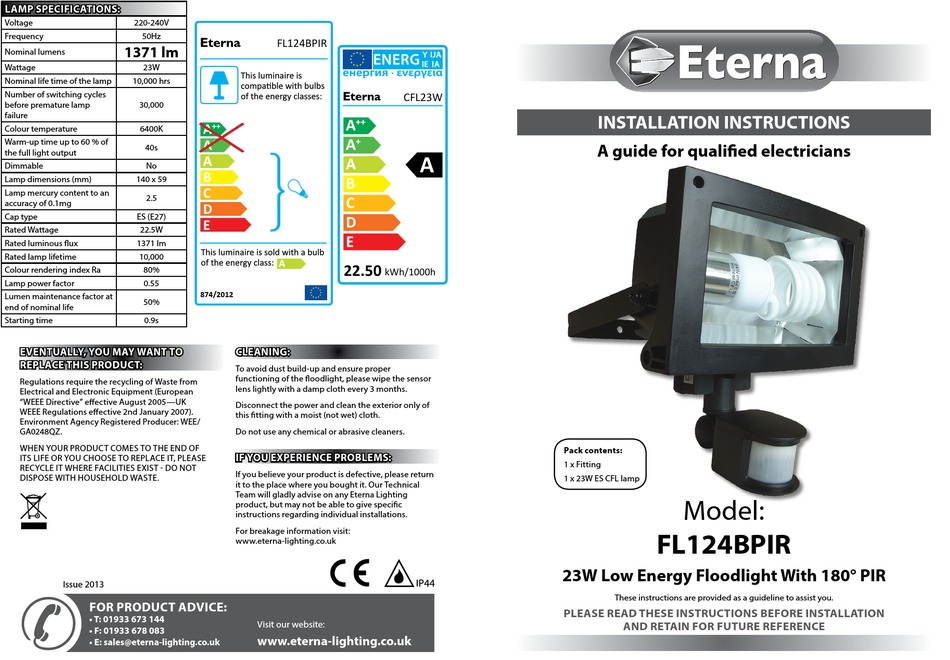

Eterna FL124BPIR Installation Instructions

LAMP SPECIFICATIONS:
Voltage 220-240V
Frequency 50Hz
1371 lm
Nominal lumens
Wattage 23W
Nominal life time of the lamp 10,000 hrs
Number of switching cycles
before premature lamp 30,000
failure
Colour temperature 6400K
Warm-up time up to 60 % of
40s
the full light output
Dimmable No
Lamp dimensions (mm) 140 x 59
Lamp mercury content to an
2.5
accuracy of 0.1mg
Cap type ES (E27)
Rated Wattage 22.5W
Rated luminous flux 1371 lm
Rated lamp lifetime 10,000
Colour rendering index Ra 80%
Lamp power factor 0.55
Lumen maintenance factor at
50%
end of nominal life
Starting time 0.9s
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
Issue 2013
FOR PRODUCT ADVICE:
• T: 01933 673 144
• F: 01933 678 083
• E: sales@eterna-lighting.co.uk
FL124BPIR
MODELNO.
A
XXX
22.50
874/2012
CLEANING:
To avoid dust build-up and ensure proper
functioning of the floodlight, please wipe the sensor
lens lightly with a damp cloth every 3 months.
Disconnect the power and clean the exterior only of
this fitting with a moist (not wet) cloth.
Do not use any chemical or abrasive cleaners.
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
For breakage information visit:
www.eterna-lighting.co.uk
Visit our website:
www.eterna-lighting.co.uk
CFL23W
MODELNO.
A
++
A
kWh/1000h
Pack contents:
1 x Fitting
1 x 23W ES CFL lamp

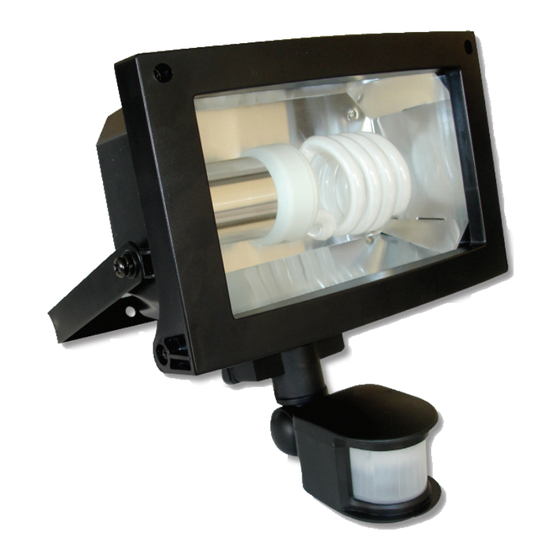

23W Low Energy Floodlight With 180° PIR
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
INSTALLATION INSTRUCTIONS
A guide for qualified electricians
Model:
FL124BPIR
These instructions are provided as a guideline to assist you.
AND RETAIN FOR FUTURE REFERENCE
