MODELNO.
PIR80BK
874/2012
SPecificatioN:
• Detection range:
Approx 120° (horizontal),
max. 12 metres
• Duration time from: (10±5) seconds to (4±1)
minutes adjustable
• Weatherproof:
IP44
• Voltage:
230V ~ 50 Hz
• Wattage:
The fitting is rated at
60W max.
• LUX control level:
From daylight to night
adjustable
• Protection:
Class I
110913-BT
for Product advice:
• t: 01933 673 144
• f: 01933 678 083
• e: sales@eterna-lighting.co.uk
cLeaNiNg:
• To avoid dust build-up and ensure proper
functioning of the bulkhead light, please wipe
the sensor lens lightly with a damp cloth every 3
months.
• Disconnect the power and clean the exterior only of
this fitting with a moist (not wet) cloth.
• Do not use any chemical or abrasive cleaners.
LamP rePLacemeNt:
• Switch off the electricity at the mains.
• Release front diffuser cover with screwdriver.
• Remove and replace lamp making sure it sits
correctly in the lampholder.
• Replace front diffuser cover by hand.
• Restore power.
rePLacemeNt LamP tyPe:
Requires 1 x suitable BC energy saving lamp.
Wattage:
Fitting is rated at 60W
Supply Voltage:
230V
Type:
B22
eveNtuaLLy, you may waNt to
rePLace tHiS Product:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEn yoUR PRoDUCT CoMES To THE EnD oF
ITS LIFE oR yoU CHooSE To REPLACE IT, PLEASE
RECyCLE IT WHERE FACILITIES EXIST - Do noT
DISPoSE WITH HoUSEHoLD WASTE.
if you exPerieNce ProBLemS:
If you believe your product is defective, please return
it to the place where you bought it. our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
Visit our website:
www.eterna-lighting.co.uk

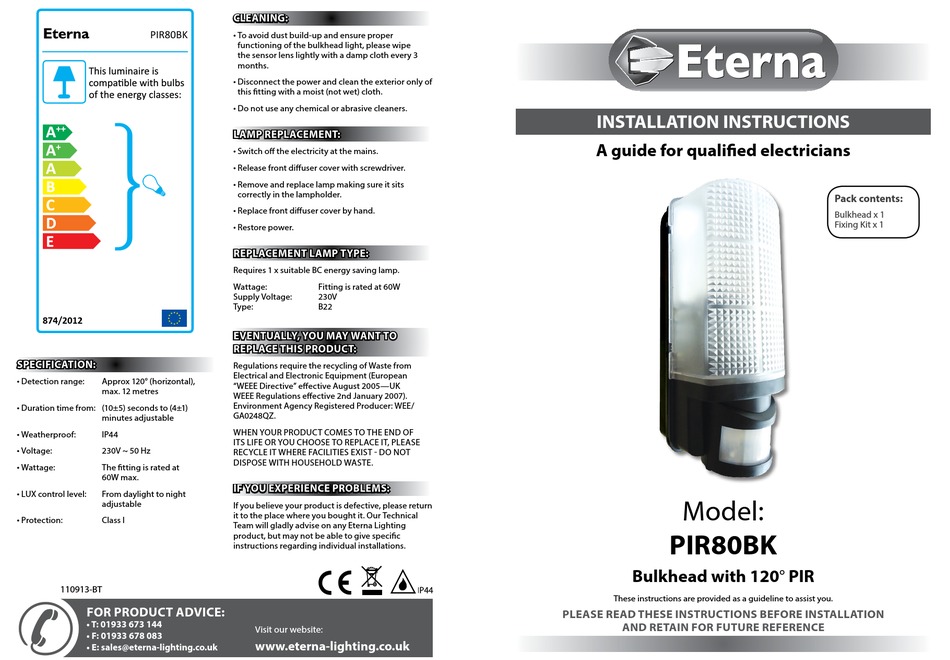

iNStaLLatioN iNStructioNS
a guide for qualified electricians
Model:
Pir80BK

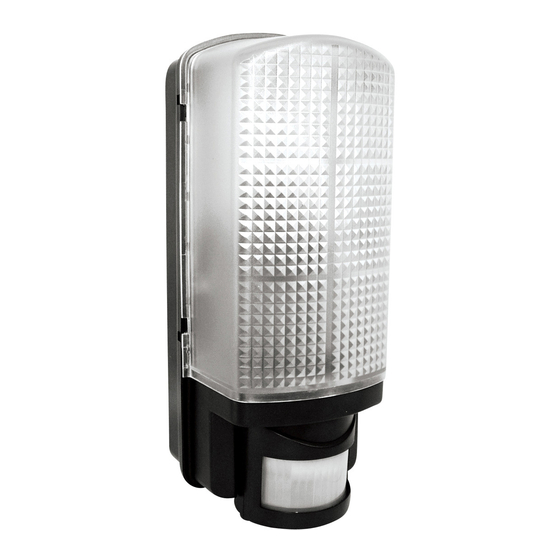

Bulkhead with 120° Pir
These instructions are provided as a guideline to assist you.
PLeaSe read tHeSe iNStructioNS Before iNStaLLatioN
aNd retaiN for future refereNce
Pack contents:
Bulkhead x 1
Fixing Kit x 1
Advertisement
Related Manuals for Eterna PIR80BK
Summary of Contents for Eterna PIR80BK
- Page 1 If you believe your product is defective, please return it to the place where you bought it. our Technical • Protection: Class I Team will gladly advise on any Eterna Lighting Pir80BK product, but may not be able to give specific instructions regarding individual installations.
- Page 2 2.5 metres (6 to 8ft) above the area to be scanned is fit for the purpose for which you have intended (refer to Fig. 1 below). it. Eterna Lighting cannot accept any liability for Terminal Block loss, damage or premature failure resulting from inappropriate use.
- Page 3 (power cable) (power cable) Yellow / Green (power cable) Screw (A) uNderStaNdiNg tHe coNtroLS: trouBLeSHootiNg aNd uSer HiNtS: (Referring to Fig. 5 below) Note: all passive infra red detectors are more sensitive in cold and dry weather than warm and wet weather. adJuStiNg tHe duratioN time: The length of time that the light remains switched on after activation can be adjusted from (10±5) seconds to ProBLem...
