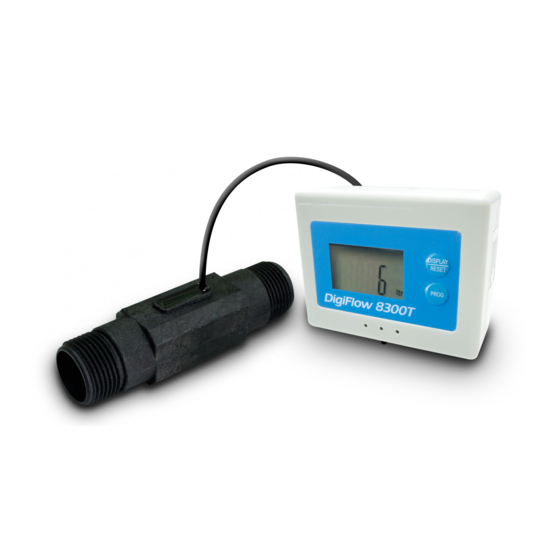

DigiFlow 8300T-88, LCD Display Flow Monitor
Features :
Filter capacity monitor, programmed digit by
digit
End of capacity alert
Minus counting
Battery operated, 2 AA alkaline batteries
Low battery power alert
Application :
Water treatment system
Agriculture water supply system
Industrial water treatment system
1.0 Electrical :
Operating Voltage : 3 DC Volts
Operating Current : 1.0 mA (work), 0.015 mA (sleep)
2.0 Application :
Mounting Method : Vertical or Horizontal
Flowing Direction : One direction
Flow Rate : 0.8 - 26.5 GPM
Reading : 1 – 99,999 Gallons with Audible Alert
Flow media : Water
3.0 General :
Temperature : Max 140 F (no freezing)
Pressure : Max. 145 PSI
Weight : 6.7 ounce
Accuracy : +/- 10 %
Connection : 1" NPT male
Materials : Sensor housing : PA66 with 50% glass fiber
Turbine : Plastic magnet
Stick of turbine : #304 stainless steel (option : ceramic)
1
