Savant 6710M-32TM Quick Start Manual

Mini flow totalizer and flow rate meter

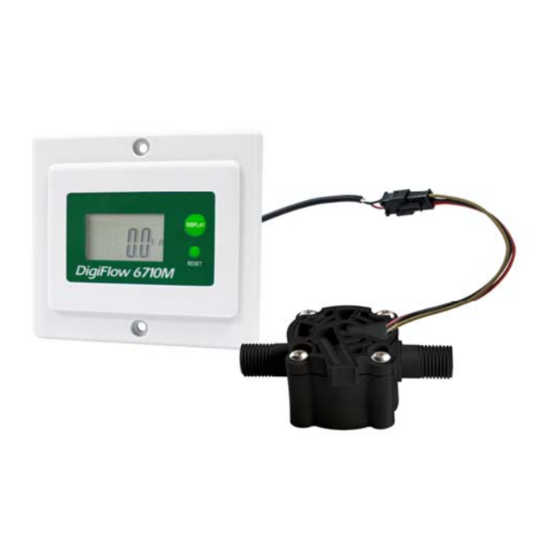

Savant DigiFlow 6710M-32TM, Mini Flow Totalizer and Flow Rate Meter

SAVANT ELECTRONICS INC.

1670-3, Sec.1, Huanzhong road, Taichung 40761, Taiwan

Tel : 886 4 2425 5578

Email :

savantco@ms65.hinet.net

Website :

www.digisavant.com

Features :

Flow totalizing up to 99999 liters



Flow rate display from 0.2 to 5 liter/min.





Automatic data memorized





Water cooler



Water dispenser



Cooling system for machinery

1.0 Electrical :

Operating Voltage : 3 DC Volts

Operating Current : 3.5 mA (work), 0.015 mA (sleep)

2.0 Mechanic :

Fax : 886 4 2425 0396

39.2

29.9

Table of Contents

Do you have a question about the 6710M-32TM and is the answer not in the manual?

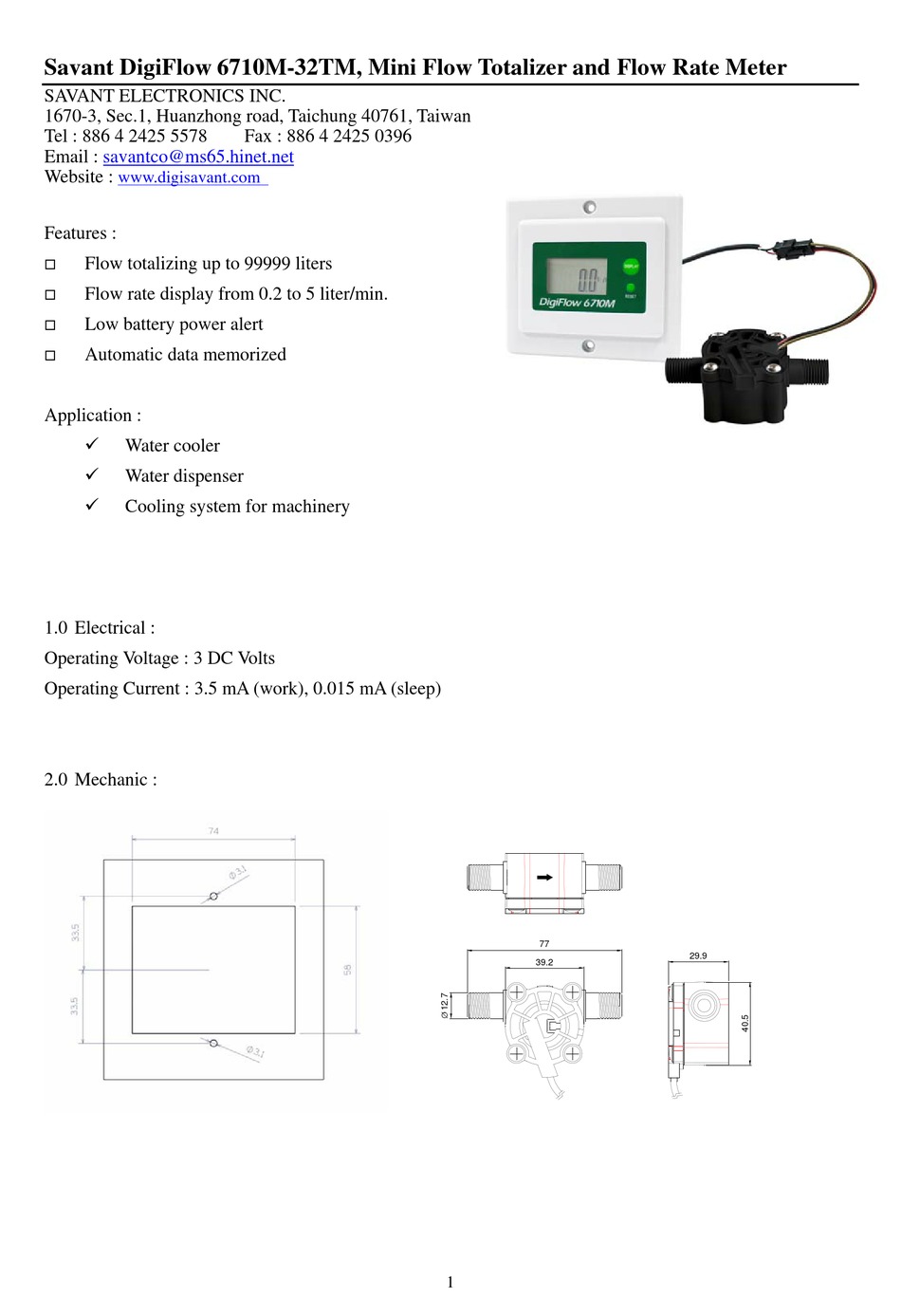

Page 1 Savant DigiFlow 6710M-32TM, Mini Flow Totalizer and Flow Rate Meter SAVANT ELECTRONICS INC. 1670-3, Sec.1, Huanzhong road, Taichung 40761, Taiwan Tel : 886 4 2425 5578 Fax : 886 4 2425 0396 Email : savantco@ms65.hinet.net Website : www.digisavant.com Features : Flow totalizing up to 99999 liters ...
Page 2 The operating voltage of the DigiFlow 6710M-32TM is 3V DC. Connecting the power cord with proper power adapter or battery pack. 5.2 Connecting Fitting The specification of the DigiFlow 6710M-32TM connection is 1/4” BSP male. You could use any 1/4” BSP male connectors. 5.3 Operating The DigiFlow 6710M-32TM automatically turns on the screen when there is water flowing through the sensor.
Page 3 5.4 Display and Mode Selection : Press the “DISPLAY” button will turn on the screen of the DigiFlow 6710M-32TM . Pressing the “DISPLAY” button again could choose to display accumulated flowing volume (flow totalization) or real-time flow rate. 5.5 Reset Use stick to keep pressing the “RESET”...
