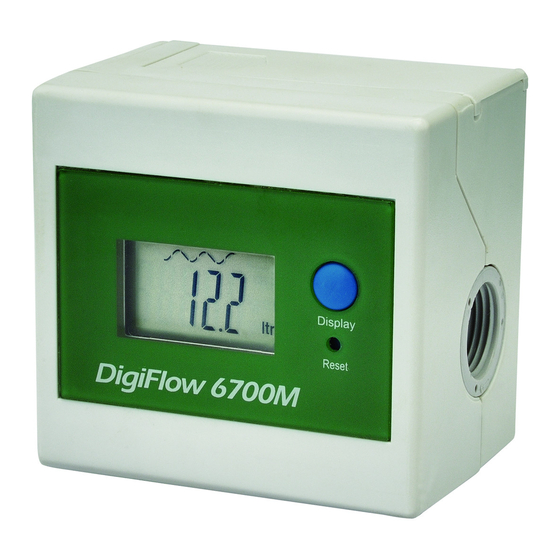

Savant DigiFlow 6700M, Digital Flow Totalizer and Flow Rate Meter
SAVANT ELECTRONICS INC.
1670-3, Sec.1, Huanzhong road, Taichung 40761, Taiwan
Tel : 886 4 2425 5578
Email :
savantco@ms65.hinet.net
Website :
www.homewaterfilter.com.tw
Features :
Flow totalizing up to 9999.9 liters
Flow rate display from 1.5 to 14.1 liter/min.
Battery operated, 2 AAA batteries
Automatic data memorized when battery power is off
Water cooler
Water dispenser
Cooling system for machinery

1.0 Electrical :

Operating Voltage : 3 DC Volts
Operating Current : 1.0 mA (work), 0.05 mA (sleep)
Fax : 886 4 2425 0396
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DigiFlow 6700M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Savant DigiFlow 6700M

  • Page 1 Savant DigiFlow 6700M, Digital Flow Totalizer and Flow Rate Meter SAVANT ELECTRONICS INC. 1670-3, Sec.1, Huanzhong road, Taichung 40761, Taiwan Tel : 886 4 2425 5578 Fax : 886 4 2425 0396 Email : savantco@ms65.hinet.net Website : www.homewaterfilter.com.tw Features : Flow totalizing up to 9999.9 liters...
  • Page 2 2.0 Mechanic : 3.0 Application : Mounting Method : Back Mount Flowing Direction : Bi-Direction Flow Rate : 1.5 – 14.1 liter/min Right to Left Left to Right 4.0 General : Temperature : 0 to 40℃ (32 to 104 ℉) Pressure : Max.
  • Page 3 Slide off the cover case of the battery room, and put into 2 AAA batteries. Then slide the cover case back. 5.2 Connecting Fitting The specification of the DigiFlow 6700M connectors is 3/8” MNPT female. You could use any 3/8” MNPT male connectors. 5.3 Operating The DigiFlow 6700M will automatically turn on when there is water flowing through the sensor.
