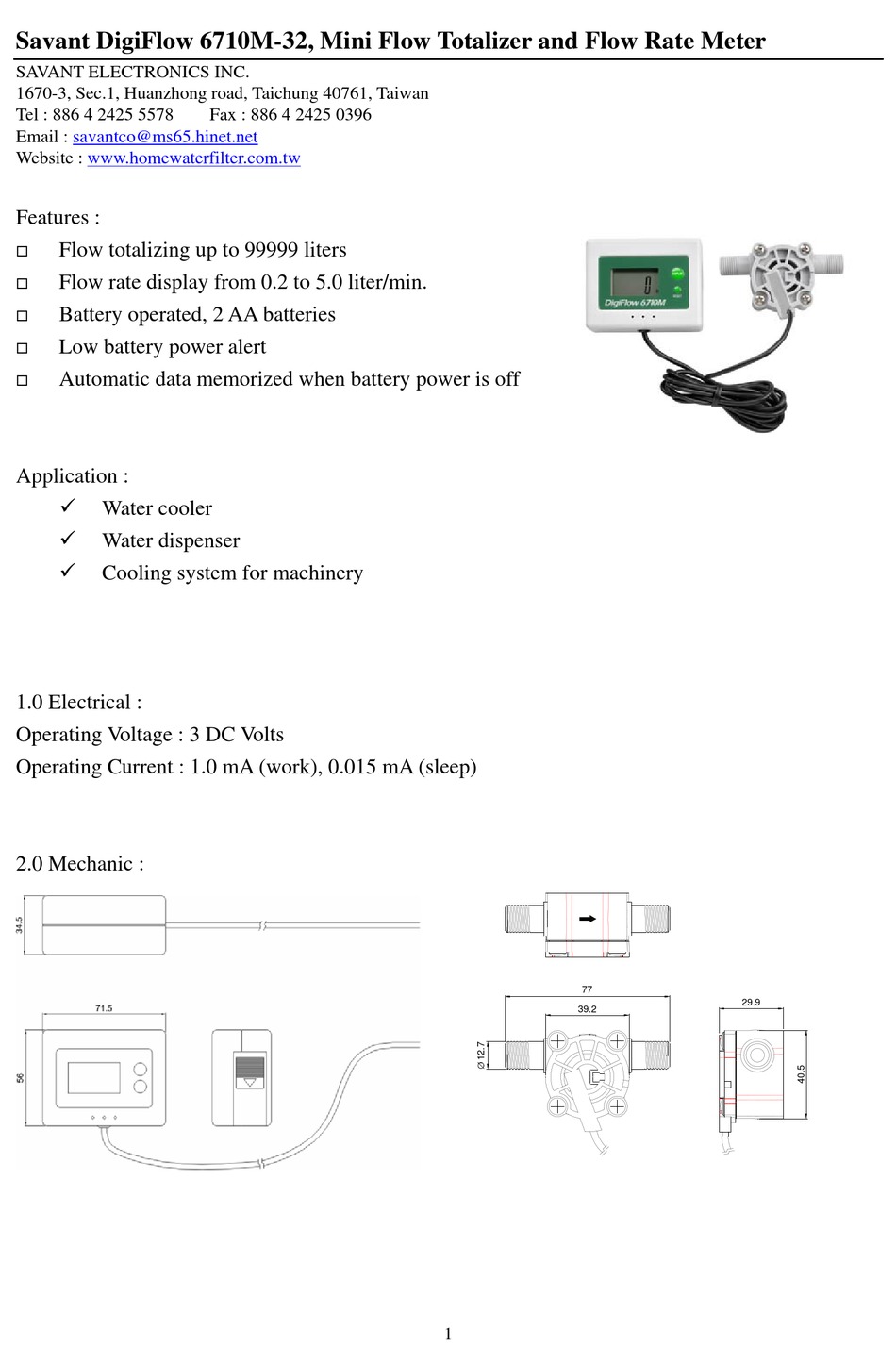

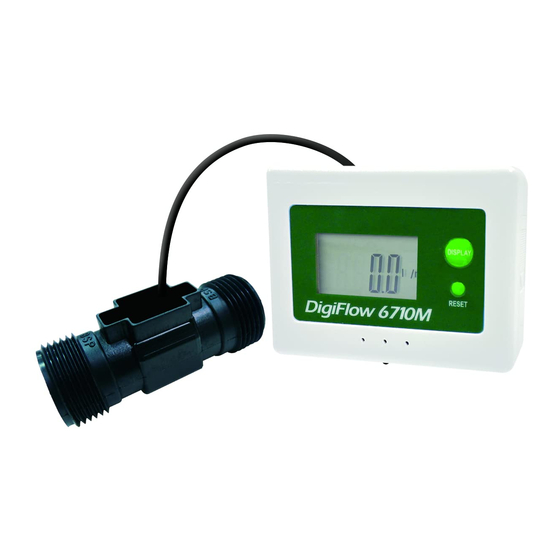

Savant DigiFlow 6710M-32, Mini Flow Totalizer and Flow Rate Meter
SAVANT ELECTRONICS INC.
1670-3, Sec.1, Huanzhong road, Taichung 40761, Taiwan
Tel : 886 4 2425 5578
Email :
savantco@ms65.hinet.net
Website :
www.homewaterfilter.com.tw
Features :
Flow totalizing up to 99999 liters
Flow rate display from 0.2 to 5.0 liter/min.
Battery operated, 2 AA batteries
Automatic data memorized when battery power is off
Water cooler
Water dispenser
Cooling system for machinery
1.0 Electrical :
Operating Voltage : 3 DC Volts
Operating Current : 1.0 mA (work), 0.015 mA (sleep)
2.0 Mechanic :
Fax : 886 4 2425 0396
77
39.2
1
29.9
Advertisement
Table of Contents
Related Manuals for Savant 6710M-32
Summary of Contents for Savant 6710M-32
- Page 1 Savant DigiFlow 6710M-32, Mini Flow Totalizer and Flow Rate Meter SAVANT ELECTRONICS INC. 1670-3, Sec.1, Huanzhong road, Taichung 40761, Taiwan Tel : 886 4 2425 5578 Fax : 886 4 2425 0396 Email : savantco@ms65.hinet.net Website : www.homewaterfilter.com.tw Features : Flow totalizing up to 99999 liters ...
- Page 2 3.0 Application : Installation Method : Horizontal installation ONLY Flow Direction : One way Flow Rate : 0.2 – 5.0 liter/min 0° 30° 30° Max. M3x10mm 4.0 General : Temperature : 0 to 80℃ (32 to 170 ℉) Pressure : Max. 6.0 bar (85 psi) Weight : 140 g (5.38 oz) Accuracy : +/- 10% Connection : 1/4 inch NPT male...
- Page 3 5.4 Display and Mode Selection : Press the “DISPLAY” button will turn on the LCD of the DigiFlow 6710M Mini Flow . Pressing the “DISPLAY” button again could choose to display accumulated flowing volume (flow totalization) or real-time flow rate. 5.5 Reset Use stick to keep pressing the “RESET”...
