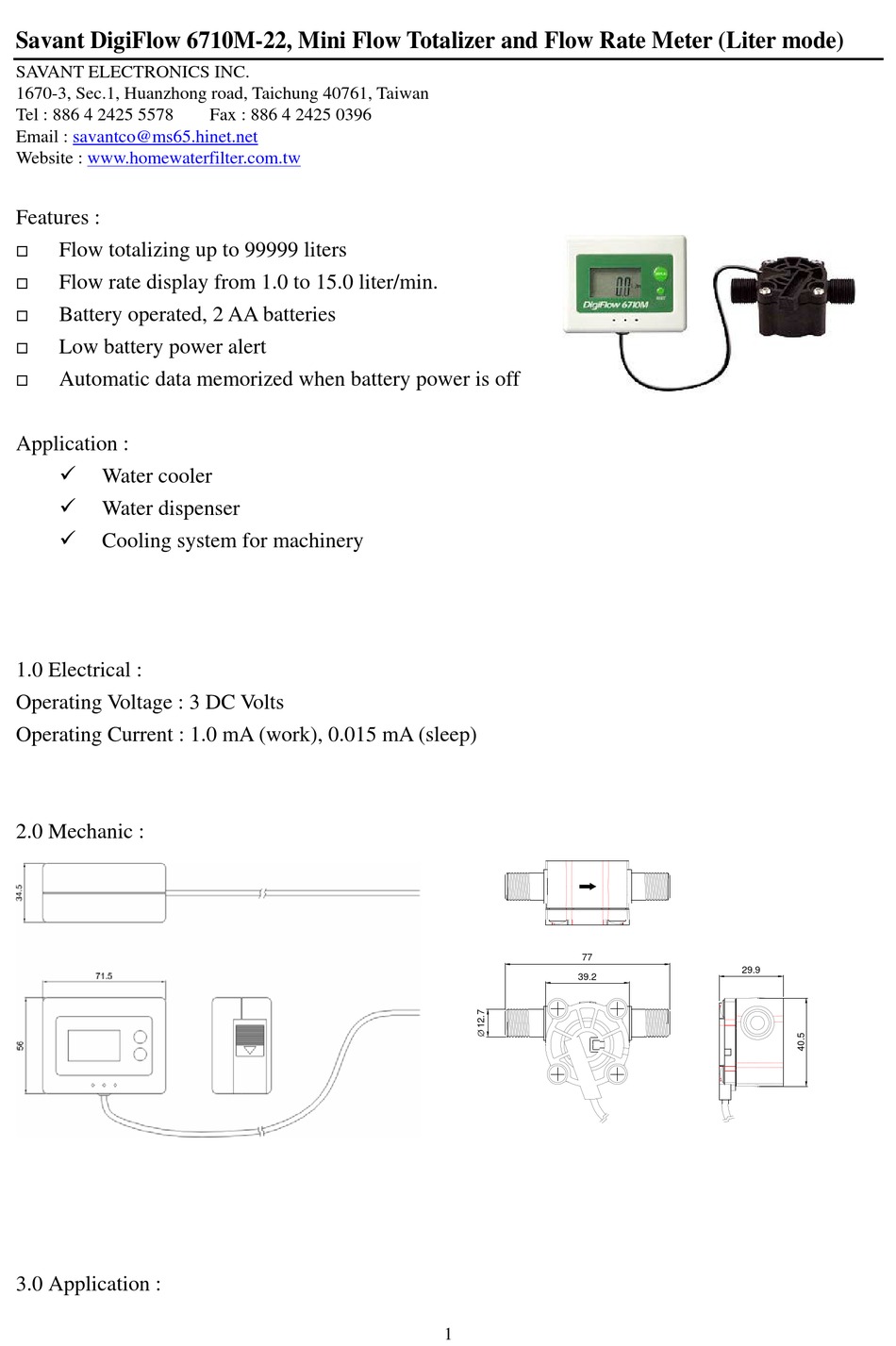

Savant DigiFlow 6710M-22, Mini Flow Totalizer and Flow Rate Meter (Liter mode)
SAVANT ELECTRONICS INC.
1670-3, Sec.1, Huanzhong road, Taichung 40761, Taiwan
Tel : 886 4 2425 5578
Email :
savantco@ms65.hinet.net
Website :
www.homewaterfilter.com.tw
Features :
Flow totalizing up to 99999 liters
Flow rate display from 1.0 to 15.0 liter/min.
Battery operated, 2 AA batteries
Automatic data memorized when battery power is off
Application :
Water cooler
Water dispenser
Cooling system for machinery
1.0 Electrical :
Operating Voltage : 3 DC Volts
Operating Current : 1.0 mA (work), 0.015 mA (sleep)
2.0 Mechanic :
3.0 Application :
Fax : 886 4 2425 0396
77
39.2
1
29.9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Savant DigiFlow 6710M-22
Summary of Contents for Savant DigiFlow 6710M-22
- Page 1 Savant DigiFlow 6710M-22, Mini Flow Totalizer and Flow Rate Meter (Liter mode) SAVANT ELECTRONICS INC. 1670-3, Sec.1, Huanzhong road, Taichung 40761, Taiwan Tel : 886 4 2425 5578 Fax : 886 4 2425 0396 Email : savantco@ms65.hinet.net Website : www.homewaterfilter.com.tw...
- Page 2 Slide off the cover case of the battery room, and put into 2 AA batteries. Then slide the cover case back. 5.2 Connecting Fitting The specification of the DigiFlow 6710M-22 Mini Flow connectors is 3/8” BSP male. You could use any 1/4” BSP male connectors. 5.3 Operating The DigiFlow 6710M-22 Mini Flow will automatically turn on when there is water flowing through the sensor.
- Page 3 Press the “DISPLAY” button will turn on the LCD of the DigiFlow 6710M-22 Mini Flow . Pressing the “DISPLAY” button again could choose to display accumulated flowing volume (flow totalization) or real-time flow rate. 5.5 Reset Use stick to keep pressing the “RESET” button for 4 seconds, the total measuring volume will be reset to be zero.
