Savant DigiFlow 6000R Quick Start Manual

Digital multi filter monitor flow totalizer

Table of Contents

Download this manual

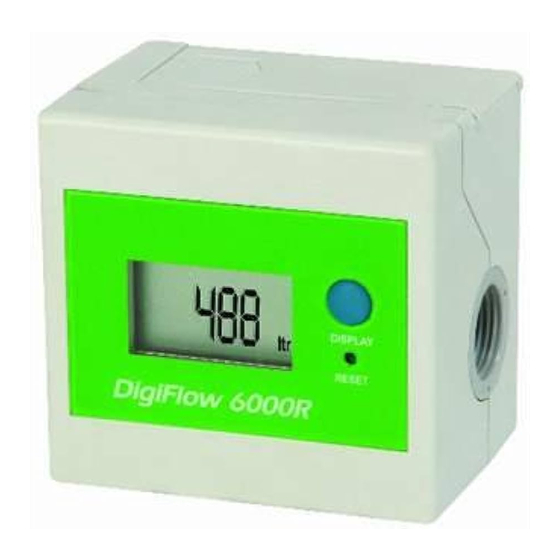

Savant DigiFlow 6000R, Digital Multi Filter Monitor Flow Totalizer

SAVANT ELECTRONICS INC.

188-2, Sec. 2, Chang Ping Road, Taichung, Taiwan

Tel : 886 4 2421 3758

Email :

savantco@ms65.hinet.net

Website :

www.homewaterfilter.com.tw

Features :

Up to 5 filter capacity life monitor, up to 99500 liters

or 19900 gallons

End of filter life alert

Battery operated, 2 AAA batteries

Automatic data memorized when battery power is off

Application :

Under sink water treatment system

Counter top water treatment system

Commercial water treatment system

Water dispenser

1.0 Electrical :

Operating Voltage : 3 DC Volts

Operating Current : 1.0 mA (work), 0.015 mA (sleep)

Fax : 886 4 2421 3710

Table of Contents

Need help?

Do you have a question about the DigiFlow 6000R and is the answer not in the manual?

Page 1 Savant DigiFlow 6000R, Digital Multi Filter Monitor Flow Totalizer SAVANT ELECTRONICS INC. 188-2, Sec. 2, Chang Ping Road, Taichung, Taiwan Tel : 886 4 2421 3758 Fax : 886 4 2421 3710 Email : savantco@ms65.hinet.net Website : www.homewaterfilter.com.tw Features :...
Page 2 2.0 Mechanic : 3.0 Application : Mounting Method : Back Mount Flowing Direction : Bi-Direction Right to Left Left to Right Flow Rate : Max. 4.10 gpm, 15.10 lpm Min. 0.45 gpm, 1.70 lpm 4.0 General : Temperature : 0 to 80℃ (32 to 176 ℉) Pressure : Max.
Page 3 5.4 Operating The DigiFlow 6000R will be automatically turn on when there is water flowing through the sensor. It will automatically turn off in 10 seconds when there is no water flowing. The DigiFlow 6000R display the total flowing volume.
Page 4 5.6 End o Life Alert When there is any filter remaining capacity reaches 0 gallon (liter), the buzzer will beep twice and the DigiFlow 6000R will blink the dedicated filter, for example, like “ FLT 2” to notice user that the 2 filter cartridge is in its end of life, and out of function.
