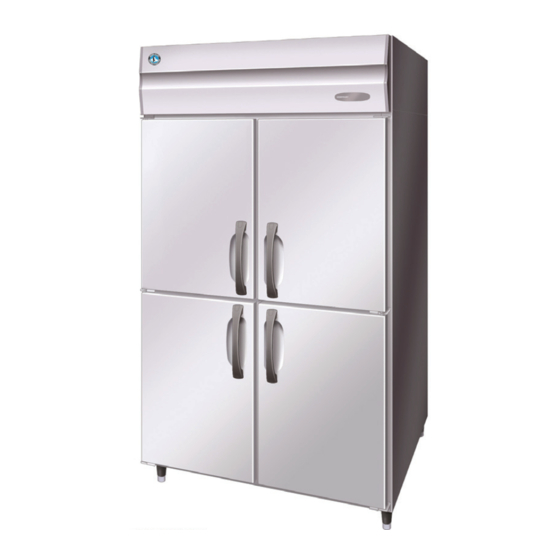

商用冷柜 HRE-77B-CHD-N HRE-127B-CHD-N COMMERCIAL REFRIGERATED STORAGE CABINET HFE-77B-CHD-N 使用说明书 HFE-127B-CHD-N HRFE-77B-CHD-N INSTRUCTION MANUAL HRE/HFE-127B-CHD-N ● 使 用说明书是本产品不可分割的重要组成部分,用户须妥善保管。 ● 请 务必仔细阅读本使用说明书中描述的指南和警告事项,因为这些指南和警告事项 为安装人员/用户提供了正确安装、持续安全地使用和保养本产品所需的重要信息。 ● 请 妥善保管本使用说明书,以便必要时参考使用。 ● This booklet is an integral and essential part of the product and should be kept and preserved by the user.
ENGLISH WARNING 2. ACCESSORIES Do not wet this product or use it in potentially wet conditions. This may Width 700mm 1200mm cause electric leakage, resulting in a) Shelf: 4 [4] 8 [8] electric shock or fire. b) Shelf clip: 16 [16] 32 [32] Keep Dry 16 [16] (HRFE)
ENGLISH Shakeproof Leg Min. 30 cm Shakeproof Fitting Side View Min. 100 cm Fig. 2 Bottom View Fig. 3 * Protect the unit from tipping over by fixing the four legs with the following tip-resistant kit (optional): 4. SET UP [Tip-resistant kit] Adjustable leg (4Y2042-01, optional) IMPORTANT...
ENGLISH (accessory) into the caster joints. Use the spanner Hook (accessory) to loosen or tighten the casters. After making the unit level, tighten the casters securely. Shelf Clip Lock the stoppers of the front casters. Push Shelf Post Fig. 6 CAUTION Spacer Attach the shelf clips properly to make the shelf...
ENGLISH 6. ELECTRICAL CONNECTIONS IMPORTANT This refrigerated storage cabinet is provided with no power switch or earth leakage circuit breaker, but with overcurrent protection only. Install an earth leakage circuit breaker with (1) Hook overload protection rated at least 15A on the main power supply.
ENGLISH * The drain outlets are at the bottom of the body. 7. Do not use combustible spray or place Use the accessories to connect the drain hoses. volatile and flammable substances near the unit. They could catch fire from a spark of a * HRFE type is provided with two defrost water drain switch or the like.
ENGLISH 2) The compressor and condenser fan motor will The cabinet temperature is factory-adjusted to start in 3 minutes. 37°F for the refrigerator and 0°F for the freezer. If necessary, readjust the temperature as follows: 2. FRONT PANEL 1) Open the front panel. 2) Press the set point button to display the current To open and close the front panel: set point temperature.
ENGLISH 4. FRAME HEATER 1. INTERIOR, EXTERIOR, SHELF The front frame is provided with a built-in heater to * Clean the interior and exterior at least once a prevent condensation. It is factory-adjusted to “low”. week for sanitary use. The unit can be moved by If condensation forms on the front frame, the frame unlocking the casters [caster models].
(2) Air filter not clean. E5, E8, Thermistor defective. Immediately contact an authorized Hoshizaki service company. EA, Eb, Controller board defective. Immediately contact an authorized Hoshizaki service company.
Hoshizaki warrants to the original owner/user that all Hoshizaki branded products shall be free of defects The error codes are indicated in the following order...
Page 24
Room 501, Tower 1, Kerry Enterprise Centre, 128 Tianmu Road West, Jing’an District, Shanghai, 200070 China Tel: +86 21 5228-8181 Fax: +86 21 5228-0113 Hoshizaki Hong Kong Co., Limited Unit G, 17/F, World Tech Center, No. 95 How Ming Street, Kwun Tong, Kowloon, Hong Kong Tel: +852 2866-2108...
