Summary of Contents for Horizon Hobby EFL78500

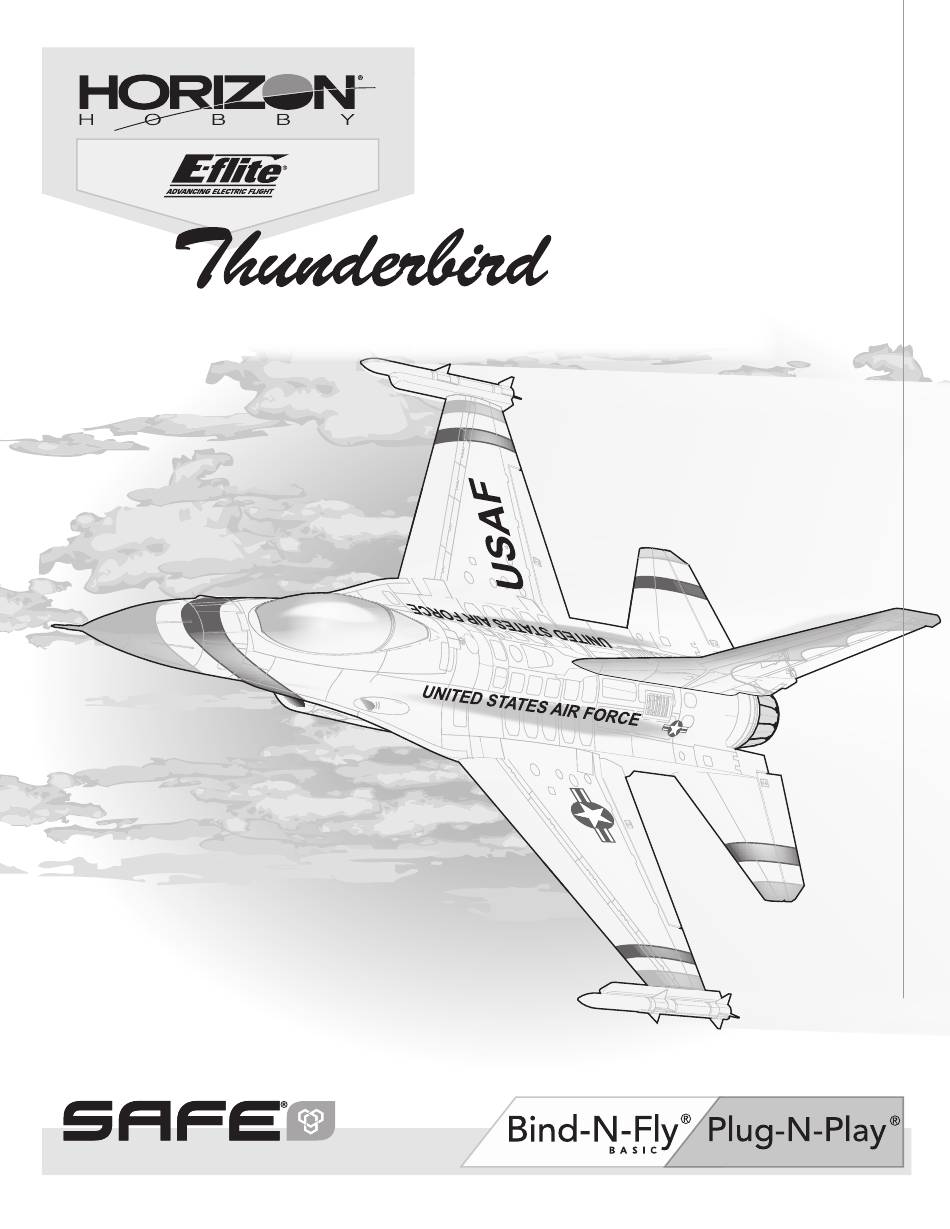

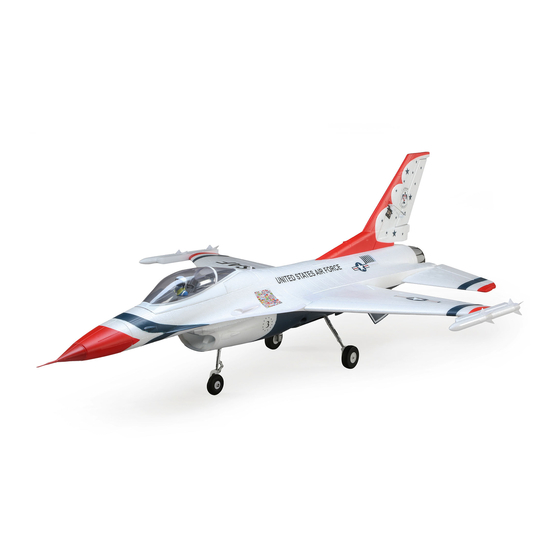

- Page 1 F-16 with 70mm EDF Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni SAFE Select Technology, Optional Flight Envelope Protection ®...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com or www.towerhobbies.com and click on the support or resources tab for this product. Meaning of Special Language:...
-
Page 3: Table Of Contents
Box Contents Quick Start Information Set up your transmitter using the Transmitter Setup transmitter setup chart Hi Rate Low Rate Travel and Dual 26mm 18mm Rates 18mm 14mm 20mm 16mm Center of Gravity 90 – 110mm back from leading edge of (CG) wing at the fuselage. -
Page 4: Safe ® Select Technology (Bnf Basic)
SAFE Select Technology (BNF Basic) ® The evolutionary SAFE Select technology can offer an extra level of protection so you can perform the first flight with confidence. No complex transmitter ® programming is required. Just follow the simple bind process to make the SAFE Select system active. When activated, bank and pitch limitations keep you from over-controlling and automatic self-leveling makes recovery from risky or confusing attitudes as simple as releasing the sticks. -
Page 5: Model Assembly
Model Assembly Sub Fin Installation 1. Wipe the mounting areas on the sub fins and the fan cover with a paper towel to pick up any dust or loose paint before applying glue. 2. Use CA glue to attach the sub fins to the fan cover. Apply a thin layer in the fin mounting cavity on the fan cover. - Page 6 Model Assembly Continued Vertical Tail Installation 1. Connect the rudder servo to the servo extension tucked into the cavity. Verify the servo is operating correctly with your radio system before proceeding. 2. Wipe the mounting areas on the vertical tail and fuselage with a paper towel to pick up any dust or loose paint before applying glue.
-
Page 7: Scale Accessories Optional
Model Assembly Continued Wing Installation 1. Slide the wing tube into the fuselage. 2. Slide the wings onto the wing tube. 3. Secure the wing halves into position from the bottom using the four included 3 x 16mm screws. Disassemble in reverse order. 3 x 16mm Phillips head machine Scale Accessories Optional Armament Installation... -
Page 8: Battery Installation And Esc Arming
Battery Installation and ESC Arming Battery Selection The Spektrum 3200mAh 22.2V 6S 50C Li-Po battery (SPMX32006S50) is 5. Keep the aircraft immobile and away from wind upright and on flat surface, recommended. Refer to the Optional Parts List for other recommended or the system will not initialize. -
Page 9: Binding / Switching On And Off Safe Select (Bnf Basic)
Transmitter and Receiver Binding / Switching ON and OFF SAFE Select (BNF Basic) This product requires an approved Spektrum DSM2 /DSMX compatible Switching ON SAFE Select Binding Sequence ™ ® ® transmitter. Visit www.bindnfly.com for a complete list of approved transmitters. -
Page 10: Safe® Select Switch Designation
SAFE Select Switch Designation ® SAFE Select technology can be easily assigned to any open switch (2 or 3 ® Mode 1 and 2 Transmitters position) on your transmitter. With this feature, you have the flexibility to enable or disable the technology while in flight. IMPORTANT: Before assigning your desired switch, ensure that the travel for that channel is set at 100% in both directions and the aileron, elevator, rudder and throttle are all on high rate with the travel at 100%. -
Page 11: Center Of Gravity (Cg)
Center of Gravity (CG) This CG location has been determined with the recommended Li-Po battery (SPMX32006S50). 90 – 110mm The CG location is given below and is measured from the leading edge of the wing at the root with the landing gear down. back from leading edge The CG location is adjusted by moving the battery pack forward or backward in the of wing at the fuselage. -
Page 12: Flying Tips And Repairs
Flying Tips and Repairs Consult local laws and ordinances before choosing a flying location. WARNING: Always decrease throttle after a crash. Range Check your Radio System NOTICE: If a crash is imminent, reduce the throttle and trim fully. Failure to do so could result in extra damage to the airframe, as well as damage to the Before you fly, range check the radio system. -
Page 13: Post Flight
Post Flight 1. Disconnect the flight battery from the ESC (Required for Safety and 5. Repair or replace all damaged parts. battery life). 6. Store the flight battery apart from the aircraft and monitor the 2. Power OFF the transmitter. battery charge. -
Page 14: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater respond to throttle but responds to Throttle channel is reversed... -
Page 15: Ama National Model Aircraft Safety Code
AMA National Model Aircraft Safety Code Effective January 1, 2018 A model aircraft is a non-human-carrying device capable of sustained flight within visual line of sight of the pilot or spotter(s). It may not exceed limitations of this code and is intended exclusively for sport, recreation, education and/or competition. All model flights must be conducted in accordance with this safety code and related AMA guidelines, any additional rules specific to the flying site, as well as all applicable laws and regulations. -
Page 16: Limited Warranty
Product, (iv) attempted service by Return Merchandise Authorization (RMA) number. Pack the Product securely anyone other than a Horizon Hobby authorized service center, (v) Product not using a shipping carton. Please note that original boxes may be included,... -
Page 17: Fcc Information
EU Manufacturer of Record: F-16 Thunderbirds 70mm EDF BNF Basic (EFL78500); Hereby, Horizon Hobby, LLC Horizon Hobby, LLC declares that the device is in compliance with 2904 Research Road the following: EU Radio Equipment Directive 2014/53/EU. Champaign, IL 61822 USA EU Importer of Record: F-16 Thunderbirds 70mm EDF (EFL7875);... -
Page 18: Recommended Receivers
Recommended Receivers•Empfohlene Empfänger Récepteurs Recommandés•Ricevitori Raccomandati PNP Only • Nur PNP • PNP Uniquement • Solo PNP Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice Telemetry Equipped Receivers Empfänger mit Telemetrie Récepteurs avec télémétrie Riceventi con telemetria AR620 6-Channel Air Integrated AR620-6-Kanal-Flugzeugempfänger Récepteur aérien avec télémétrie... -
Page 19: Optional Parts
Optional Parts • Optionale Bauteile • Pièces optionnelles • Pezzi opzionali Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice EFL5261 Float Set: Timber Timber: Schwimmerset Timber - Flotteurs Set galleggianti: Timber Park Flyer Tool Assortment, Park Flyer Werkzeugsortiment, 5 Park Flyer assortimento attrezzi, EFLA250 Assortiment d'outils park flyer, 5pc... - Page 20 E-flite, DSM, DSM2, DSMX, Bind-N-Fly, BNF, the BNF logo, Plug-N-Play, AS3X, SAFE, the SAFE logo, ModelMatch, Passport, Prophet, IC5, Dynamite, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
