Connection

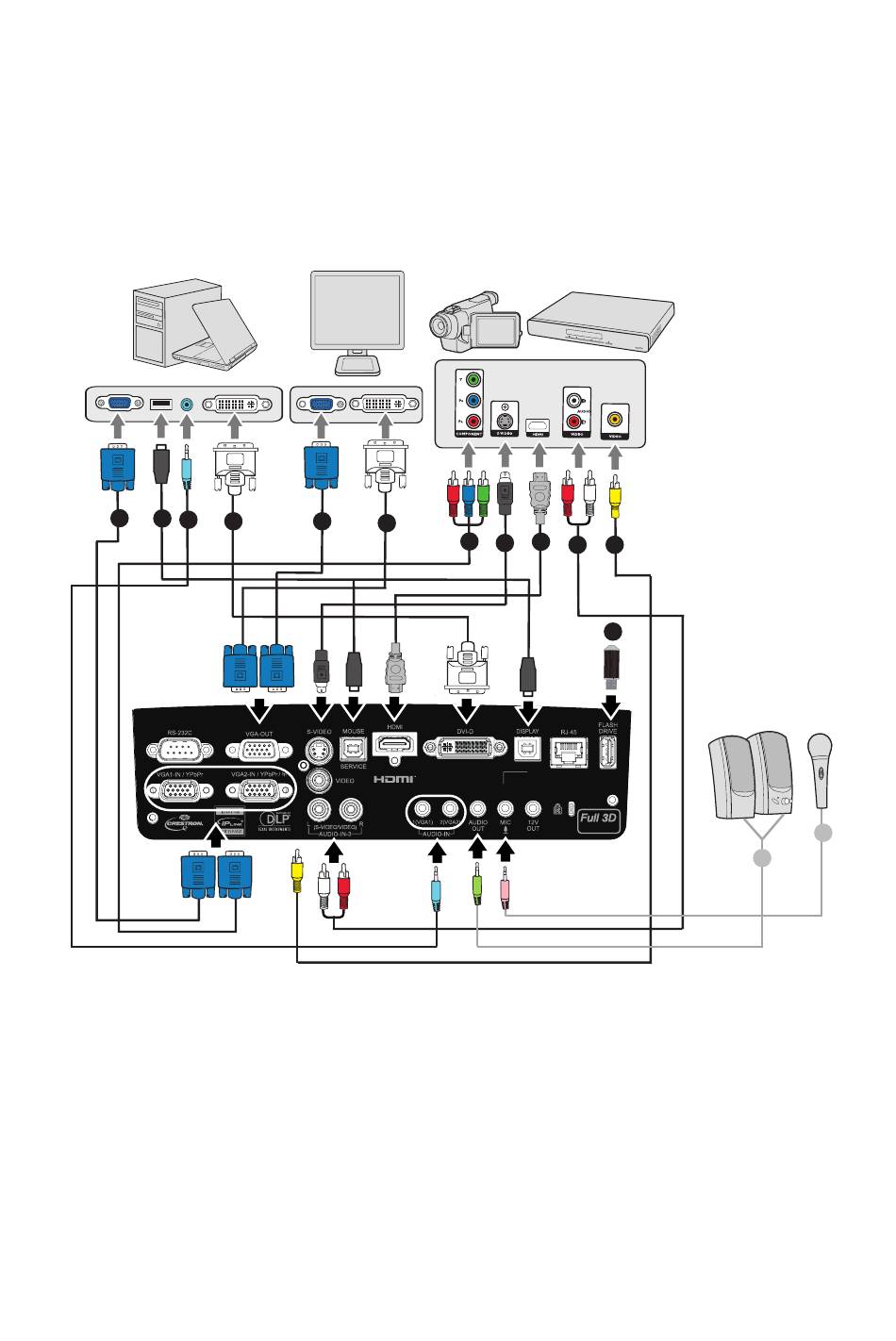

When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
1
2 3
4 1
5
6 8
7
9
10
11
12
3
1. ................................................................... VGA cable (D-Sub to D-Sub)
2. .................................................................. *USB cable (B type to A type)
3. .........................................................................................*Audio cable
4. .........................................................................................*DVI-D cable
5. ................................................................................*VGA to DVI-A cable
6. ....................................................... *VGA (D-Sub) to HDTV (RCA) cable
7. .........................................................................................*S-Video cable
8. .........................................................................................*HDMI cable
9. ......................................................................................*Audio L/R cable
EN-17
