RS232 Commands and Protocol
Function List

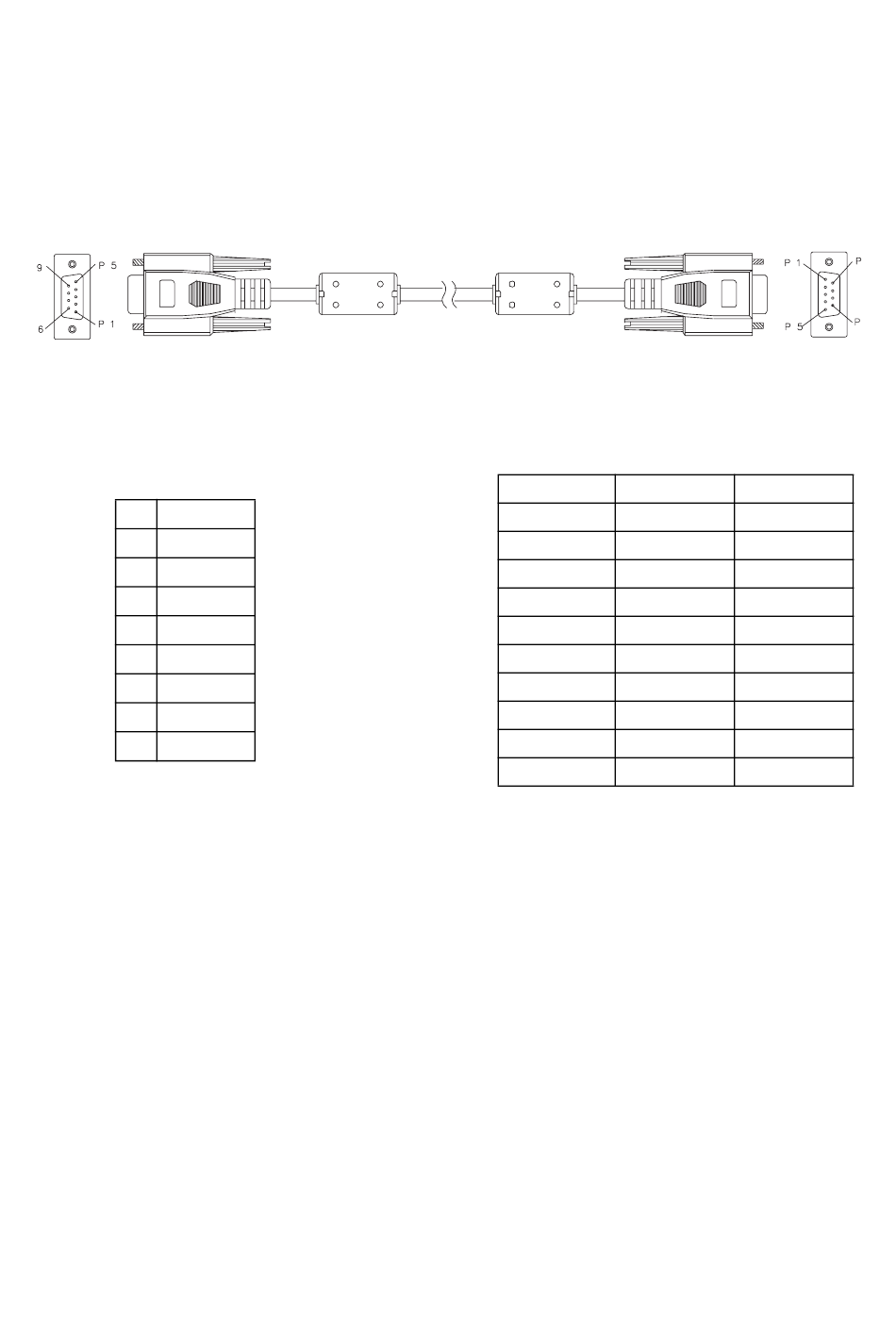

RS232 Pin Assignments
D-Sub 9 pin
(from the projector side)
1 1 CD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
(from the cable side)
C1 COLOR
1 Black
2 Brown
3 Red
4 Orange
5 Yellow
6 Green
7 Blue
8 Purple
9 White
SHELL DW
C2
1
3
2
6
5
4
8
7
9
SHELL
EN-81
