Connection Ports - Optoma EP747A Manual

Introduction
8
English

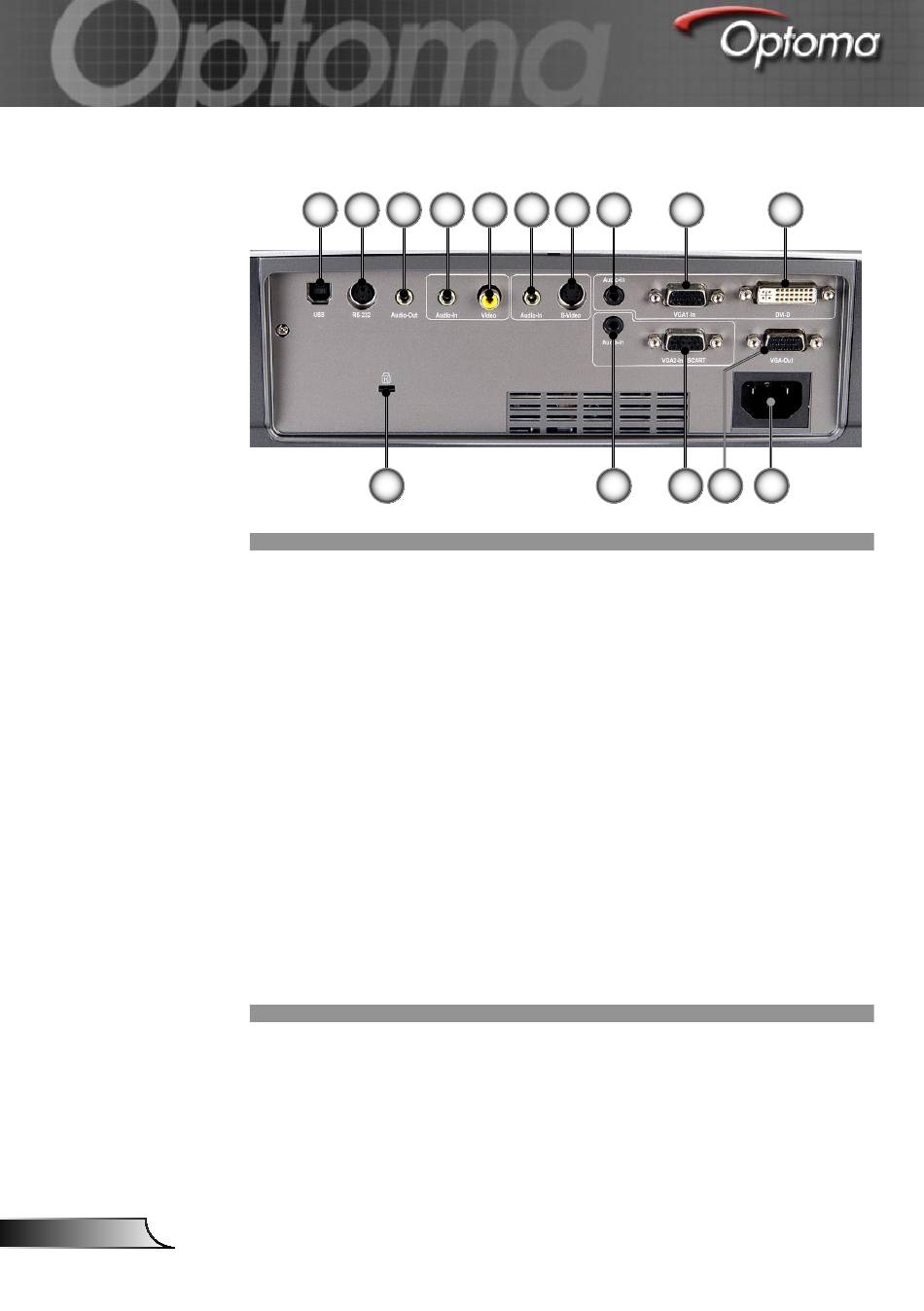

Connection Ports

9 8 8
10
11
1. DVI-D Input Connector (PC Digital/HDTV/HDCP Input)
2. VGA-In Connector (PC Analog signal/HDTV/Component
Video Input)
3. Audio Input Connector (For DVI-D or VGA1-In)
4. S-Video Input Connector
5. Audio Input Connector (For S-Video)
6. Composite Video Input Connector
7. Audio Input Connector (For Composite)
8. Audio Output Connector
9. RS232 Connector
10. USB Connector (Connect to PC for Remote Mouse function)
11. Kensington
TM
12. Audio Input Connector (For VGA2-In SCART)
13. VGA-In SCART Connector (PC Analog signal/HDTV/
Component Video Input)
14. Monitor Loop-through Output Connector
15. Power Socket
7 6 5 4
Lock Port
3 2
12 13 14 15
1
