Digital Watchdog MEGApix DWC-MB45iALPRT User Manual page 11

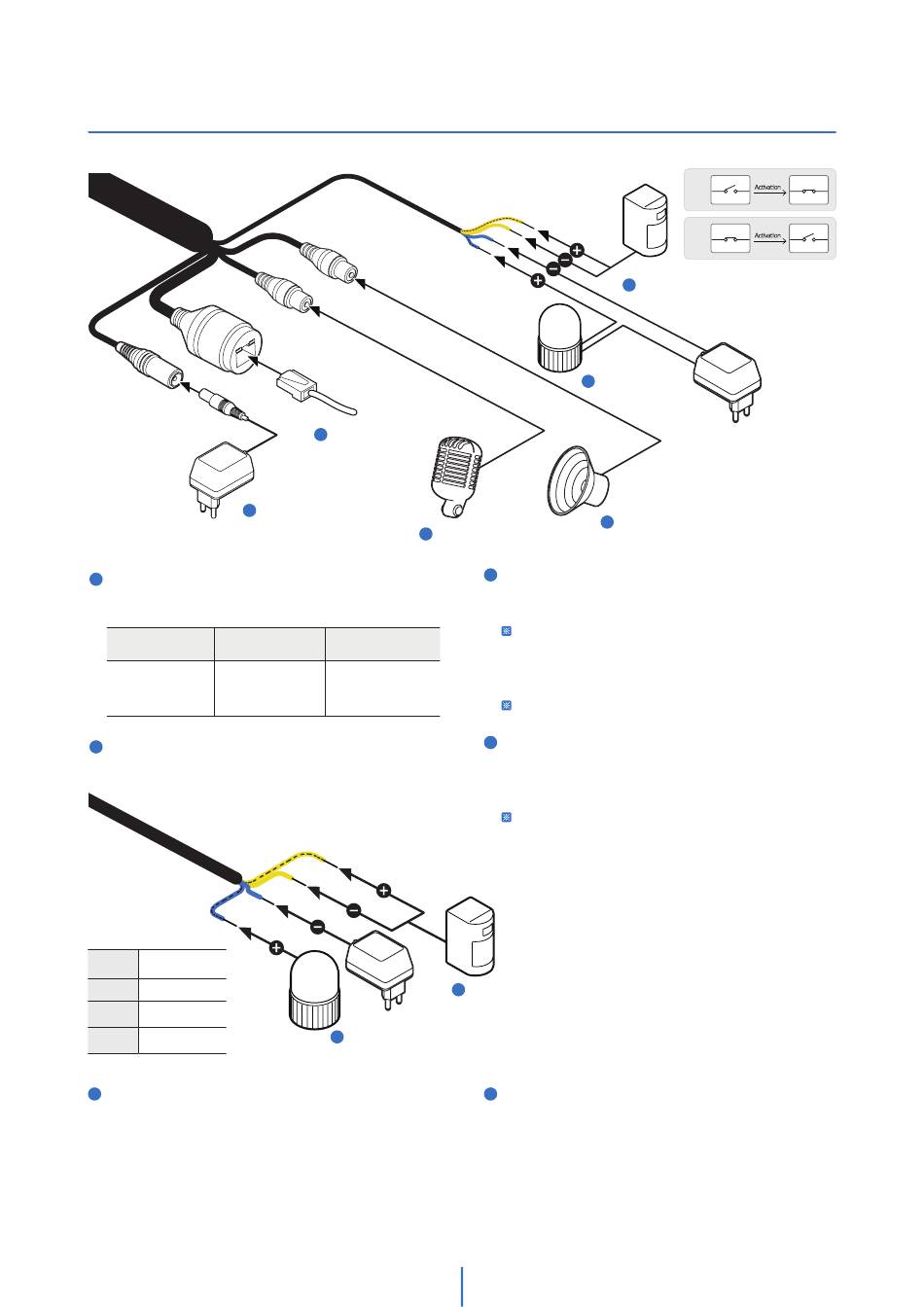

Installation -
Cabling
Power
1
Power Connection
1
Please, check the voltage and current capacity of
rated power carefully.
Power
Rate Power
Consumption
DC 12V 9W
Network Connection
2
Connect the crossover cable into the RJ-45.
YELLOW +
DI
DOT
YELLOW
DI COM
DO1
BLUE
COM
DO1
BLUE + DOT
(N.O.)
Alarm/Relay Out (DO)
5
Connects to the alarm lights, siren or lamps and
the sensor types are normally open and
normally close.
Network
2
Audio Input
3
3
PoE
IEEE 802.3af
class3, max
10.5W
4
Alarm Input
6
Alarm Output
5
6
11
Alarm In
6
Alarm Out
5
Audio Output
4
Audio Output
Connect the 'audio out' port of the camera to the
'line in' port of the speaker.
If the speaker without the amplifier is connected
to the audio out port, it doesn't work properly.
Therefore, the speaker with the amplifier or the
separate amplifier is needed.
Audio Out is available via the RTSP backchannel.
Audio Input
Connect the 'audio in' port of the camera to the
microphone directly or 'line out' port of the
amplifier connected with a microphone.
If the microphone is connected directly, the
microphone with the embedded amplifier such
as condenser mic. needs to be used.
Sensor/Alarm Input (DI)
The sensor/alarm input device's cable should
connect to + and - of the Terminal Block.
N.O
In 1 COM In 1 COM
N.C
In 1 COM In 1 COM
