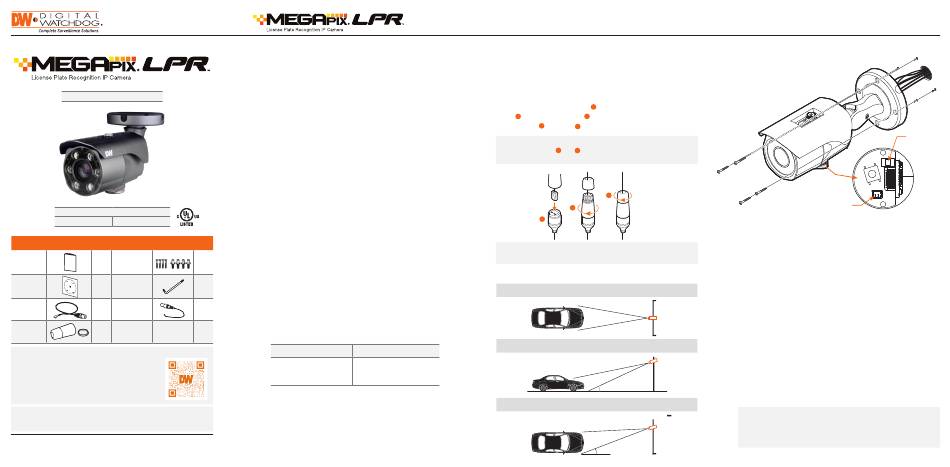

Quick Start Guide

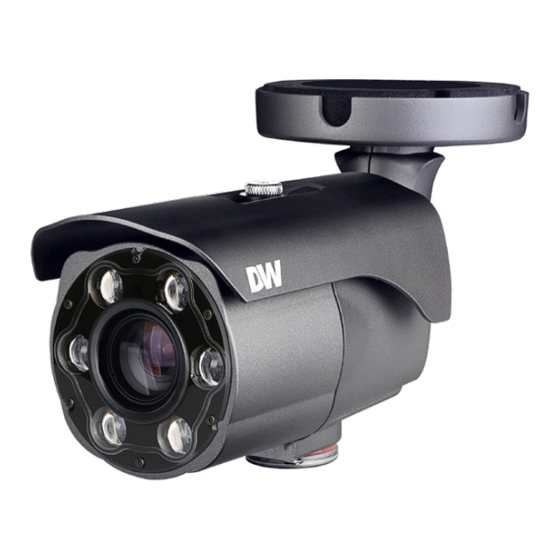

DWC-MB44iALPR
Default Login Information
Username: admin
Password: admin
WHAT'S IN THE BOX
Screws and
Quick setup
1
plastic
guide
anchors – 4pcs
Mounting
1
Torque wrench
template
Test video
1
DC plug cable
cable
Waterproof
1 Set
cap
NOTE:
Download all your support materials and tools in one place
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the
'Search by Product' search bar. Results for applicable
part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for initial
set-up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
digital-watchdog.com
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your
camera.
2. Do not let the cables get caught in improper places or the electric
line cover to be damaged. This may cause a breakdown or fire.
3. CAUTION: These servicing instructions are for use by qualified
service personnel only. To reduce the risk of electric shock do not
perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.
4. This product is intended to be supplied by a UL Listed Power
Supply Unit marked "Class 2" or "LPS" or "PS2" and rated 12 Vdc,
920 mA min.
5. The wired LAN hub providing power over the Ethernet (PoE) in
accordance with IEEE 802-3af shall be a UL Listed device with
the output evaluated as a Limited Power Source as defined in
UL60950-1 or PS2 as defined in UL62368-1.
6. Unit is intended for installation in a Network Environment 0 as
defined in IEC TR 62102. As such, associated Ethernet wiring shall
be limited to inside the building.
STEP 2 – CABLING THE CAMERA TO
EXTERNAL DEVICES
1 Set
Pass the wires through and make all necessary connections.
1. NETWORK CONNECTIONS – Using a PoE Switch or PoE Injector,
1
connect the camera using an Ethernet cable for both data and
power.
2. NETWORK CONNECTIONS – Not using PoE Switch or PoE
1
Injector, connect the camera to the switch using an Ethernet
cable for data transmission and use a power adapter to power the
camera.
Power requirements
Power consumption
DC12V, PoE
DC12V Max 11W
(IEEE 802.3af Class 3)
PoE Max 12.9W
(Adapter not Included)
STEP 3 – INSTALLING THE CAMERA
1. Once all cables are connected, secure the camera to the mounting
surface using the included screws.
2. Loosen the pan and tilt screws at the base of the camera's bracket
to adjust the camera's view and position.
3. To use the camera's water proof wiring:
a.
Install the LAN cable into
.
a
b.
will be assembled to
with a 1/4 turn.
b
a
c.
Thread
c
tightly to
.
b
NOTE:
To ensure moisture seal, make sure the o-ring is in place
between
and
. In extreme environments use of an
a
b
outdoor rated sealer is recommended.
c
b
a
NOTE:
When using the waterproof cap, crimp the RJ45
connector after passing the cable through the
waterproof cap.
STEP 3 – INSTALLING AN LPR CAMERA
THE CAPTURED IMAGE SHOULD BE FILLED WITH THE FULL WIDTH OF THE VEHICLES
THE CAMERA SHOULD BE MOUNTED AT AN ANGLE NO GREATER THAN 30 DEGREES
>11.5ft
< 30°
CAMERA ANGLE NO GREATER THAN 20 DEGREES FOR SIDE MOUNT INSTALLATIONS
< 20°
Quick Start Guide
Reset Button
Test Video
Output
Resetting the camera: To reset the camera, use the tip of a
paper clip or a pencil and press the reset button. Pressing the
button for five (5) seconds will initiate a camera-wide reset of
all the settings, including network settings.
