Digital Watchdog MegaPix LPR Quick Start Manual

Digital Watchdog MegaPix LPR Quick Start Manual

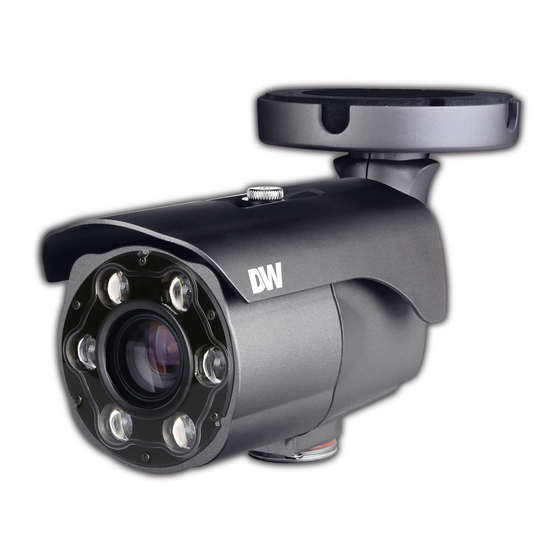

License plate recognition ip camera

Advertisement

Quick Links

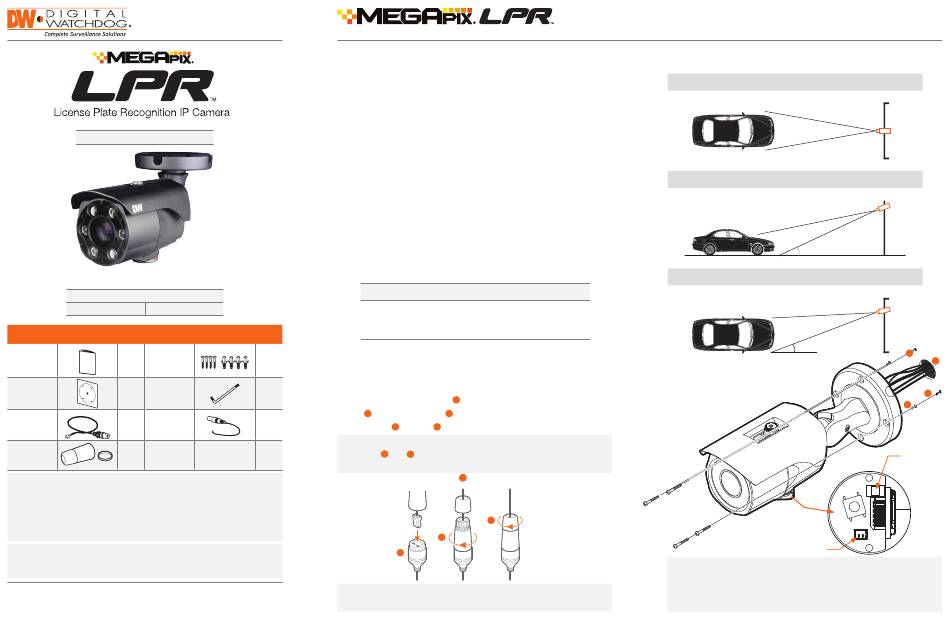

Quick Start Guide
DWC-MB44iALPR
Default Login Information
Username: admin
Password: admin
WHAT'S IN THE BOX
Screw &
QSG Manual
1 Set
Plastic Anchor
– 4pcs
Template
1 Set
Torx Wrench
Sheet
Test Video
1 Set
DC Plug Cable
Cable
Waterproof
1 Set
Cap
NOTE:
Download All Your Support Materials and Tools in One Place
1. Go to: http://www.digital-watchdog.com/support-download/
2. Search your product by entering the part number in the 'Search by Product' search
bar. Results for applicable part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick Start Guides
(QSG), software and firmware will appear in the results.
Attention: This document is intended to serve as a quick reference for initial
set-up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1.
The mounting surface must bear five times the weight of your camera.
2.
Do not let the cables get caught in improper places or the electric line cover
to be damaged. This may cause a breakdown or fire.
3.
Using the mounting template sheet or the camera itself, mark and drill the
necessary holes in the wall or ceiling.
STEP 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
4.
Pass the wires through and make all necessary connections.
a.
NETWORK CONNECTIONS – Using a PoE Switch or PoE Injector,
connect the camera using an Ethernet cable for both data and power.
b.
NETWORK CONNECTIONS – Not using PoE Switch or PoE Injector,
connect the camera to the switch using an Ethernet cable for data
transmission and use a power adapter to power the camera.
Power Requirements
DC12V
POE (IEEE 802.3af Class 3)
STEP 3 – INSTALLING THE CAMERA
1 Set
Loosen the pan and tilt screws at the base of the camera's bracket to adjust
5.
the camera's view and position.
To use the camera's water proof wiring:
6.
1 Set
(1).
Install the LAN cable into
(2).
will be assembled to
b
1 Set
(3).
Thread
c
NOTE:
To ensure moisture seal, make sure the o-ring is in place between
a
and
sealer is recommended.
digital-watchdog.com
NOTE:
When using the waterproof cap, crimp the RJ45 connector after
passing the cable through the waterproof cap.
Power Consumption
DC12V: Max 11W
PoE: Max 12.9W
PoE Injector Not Included
a
.
with a 1/4 turn.
a
tightly to
.
b
. In extreme environments use of an outdoor rated
b
6
8
c
b
a
Quick Start Guide
STEP 3 – INSTALLING AN LPR CAMERA
THE CAPTURED IMAGE SHOULD BE FILLED WITH THE FULL WIDTH OF THE VEHICLES
THE CAMERA SHOULD BE MOUNTED AT AN ANGLE NO GREATER THAN 30 DEGREES
< 30°
CAMERA ANGLE NO GREATER THAN 20 DEGREES FOR SIDE MOUNT INSTALLATIONS
< 20°
Test Video
Output
Resetting the camera: To reset the camera, use the tip of a paper clip
or a pencil and press the reset button. Pressing the button for five (5)
seconds will initiate a camera-wide reset of all the settings, including
network settings.
>11.5ft
3
1
2
4
Reset Button
