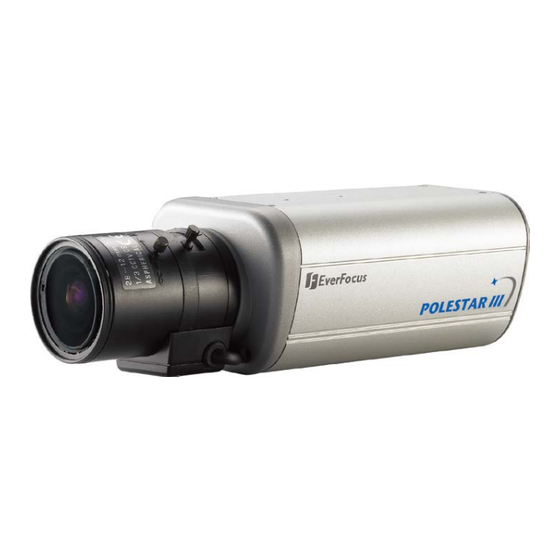

- Page 1 EQ610s Indoor Box Camera 700TVL, True Day/Night, Super Low-Light, D-WDR User’s Manual V2.1 * Lens not included. Copyright © EverFocus Electronics Corp, Release Date: January, 2013...
- Page 2 CAUTIONS 1. Do not install the camera near electric or magnetic fields. 2. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein. 3. Try to avoid facing the camera toward the sun. 4.
-
Page 3: Package Contents
EQ610s 1. INTRODUCTION The EverFocus Polestar III-series EQ610s box camera features an incredible 700TVL resolution in full color with a low-light sensitivity of 0.03 lux. Delivered by Sony EXview HAD CCD II 960H sensor, the camera also features the added benefits of advanced Effio-S DSP technology to enhance image quality. -
Page 4: Specifications
EQ610s 1.3 SPECIFICATIONS Pickup Device 1/3" Sony 960H EXview HAD CCD II Video Format NTSC Picture Elements (H x V) 1020 x 508 1020 x 596 Horizontal Resolution 700TVL Sensitivity 0.03 Lux / F1.2; 0.00006 Lux / Sens-up 512x S/N Ratio... -
Page 5: Camera Overview
EQ610s 2. CAMERA OVERVIEW 2.1 NAMES AND FUNCTIONS OF PARTS 2.1.1 FRONT PANEL Light Sensor Microphone (Reserved for Audio-supporting models) 2.1.2 BRACKET POSITIONS The bracket in the package can be fitted to the screw holes on the top or bottom of the camera for either suspending the camera or supporting it. -
Page 6: Back Panel
EQ610s 2.1.3 BACK PANEL AC 24V / LINE IN DC 12V 12 VDC / 24 VAC~ Model 90-260 VAC~ Model Side Panel: 1) Terminal Block -GND: Ground pin -D/N Out (Day/Night control output): When the camera is in Day mode, it will send out a low-level signal of 0V to the external device. -
Page 7: Installation
EQ610s 6) Down-scroll button 7) Video Output Connector BNC connector that connects to a 75 Ohm coaxial cable to feed the video output of the camera to a color monitor or other video devices. 8) Power Input Terminal Connects to the appropriate power source (12 VDC / 24 VAC~ or 90-260 VAC~). - Page 8 EQ610s 4. CONNECTIONS 1. Connect the cable from the keyboard’s RS485 port to the camera’s two corresponding RS485 terminal block connectors. 2. Connect the cable from the video output jack of the camera to a monitor’s input jack. 3. The RS485 ID has to be the same as the CAM ID of the keyboard. (Please refer to the “6.9 System”...
-
Page 9: Camera Setup Operations
EQ610s 5. CAMERA SETUP OPERATIONS This camera utilizes an On Screen Display (OSD) user setup menu. 5.1 SETUP BUTTONS To set items on the user setup menu, use the following buttons on the back panel. Set (Enter) button The cursor direction buttons and the SET/Enter button ①... -
Page 10: Osd Operation
EQ610s OSD Operation ** MAIN MENU ** ┘ LENS AUTO < ┘ EXPOSURE < ┘ WHITE BALANCE < ┘ 2DNR & 3DNR < ┘ DAY/NIGHT AUTO < ┘ IMAGE < ┘ EFFECT < ┘ SYSTEM < ┘ EXIT < 1. Open the OSD menu Press the ENTER button to open the OSD’s main menu on your screen. - Page 11 EQ610s 6. Configuration with the OSD 6.1 LENS Once you have opened the OSD’s main menu on your screen, use the UP and DOWN buttons to scroll to the “LENS” menu item. Use the LEFT and RIGHT buttons to toggle between the MANUAL and AUTO modes. If you selected AUTO, you can press the ENTER button to open the LENS >...
- Page 12 EQ610s MODE There are two modes to select from: AUTO IRIS and SHUT+AUTO IRIS. To change the mode, highlight the MODE field and press the LEFT and RIGHT buttons to toggle between the two modes. In AUTO IRIS mode, SHUT (shutter speed) is activated and adjustable ...
- Page 13 EQ610s 6.3 WDR 1. When the main menu is displayed on the screen, use the UP and DOWN buttons to scroll to the “WDR” menu item. ** MAIN MENU ** ┘ LENS AUTO < ┘ EXPOSURE < ┘ WHITE BALANCE <...
-
Page 14: White Balance
EQ610s BLC (Back Light Compensation) On the main menu, scroll to WDR and select BLC mode in the right-hand column. Even when there is a bright backlight behind an object, bright images of the object and its background can still be captured by selecting the BLC mode. - Page 15 EQ610s ATW (Auto Trace White Balance) This mode can be used to view areas with a color temperature range of 1800°K to 10500°K (e.g., around fluorescent lights, outdoors, around sodium vapor lamps or inside tunnels). Press ENTER if you want to access the ATW setting options.
- Page 16 EQ610s 6.5 2DNR & 3DNR (Digital Noise Reduction) ** MAIN MENU ** ** 2DNR & 3DNR ** ┘ LENS AUTO < ┘ EXPOSURE < 2DNR MIDLOW 3DNR MIDLOW ┘ WHITE BALANCE < ┘ 2DNR & 3DNR < ┘ DAY/NIGHT AUTO <...
- Page 17 EQ610s • D/N IN mode must be selected if the camera receives its Day/Night mode-change signal from an external device that is attached to the camera via the terminal block. In this submenu you can configure the Night Input value (High or Low – referring to whether a higher-voltage signal or lower-voltage signal will trigger Night Mode, depending on the signal-sending device’s setup) and the Burst value (On or Off).
- Page 18 EQ610s • BURST : Turn the BURST function off to reduce the color noise when the camera switches to B&W mode. If the camera cannot switch back to COLOR mode from B&W mode, please turn the BURST function on. Note: The BURST function can also be switched on/off in the B&W mode’s submenu.
- Page 19 EQ610s Level: -050~050. Adjusts the value of the hue. MIRROR This setting lets you rotate the camera view on your screen. Options are NORMAL, VERTICAL (vertically rotated), MIRROR (horizontally rotated), and ROTATE (vertically and horizontally rotated). POS. / NEG. ON/OFF. Positive/Negative Reversal. Select ON or OFF to enable or disable this function.
- Page 20 EQ610s - DETECT SENSE The higher the number, the more sensitive the camera’s motion detector will be. - BLOCK DISP Block Display displays small blocks around movement points on the screen. It is generally used to test if the motion detection function is working.
- Page 21 EQ610s - AREA SEL Up to 15 areas can be masked. Use your LEFT and RIGHT buttons to select the number of the mask you want to switch on/off or edit. By default, all 15 mask areas will be activated and displayed on the screen, in five different-colored columns.
-
Page 22: Camera Title
EQ610s E-ZOOM ** E-ZOOM ** This function is only active if the DIS function is RATIO |||||||||||||||||||| 001 switched off. Select ON and press the ENTER ||||||||| ||||||||||| 000 TILT |||||||||||||||||||| 001 button to do further setups. The setup options... - Page 23 EQ610s COMM - CAMERA ID Select the camera’s ID number. - DISP CAM ID Switch this OFF if you don’t want to display the camera’s ID on the display monitor, or select where you on the monitor’s screen you want it displayed.
