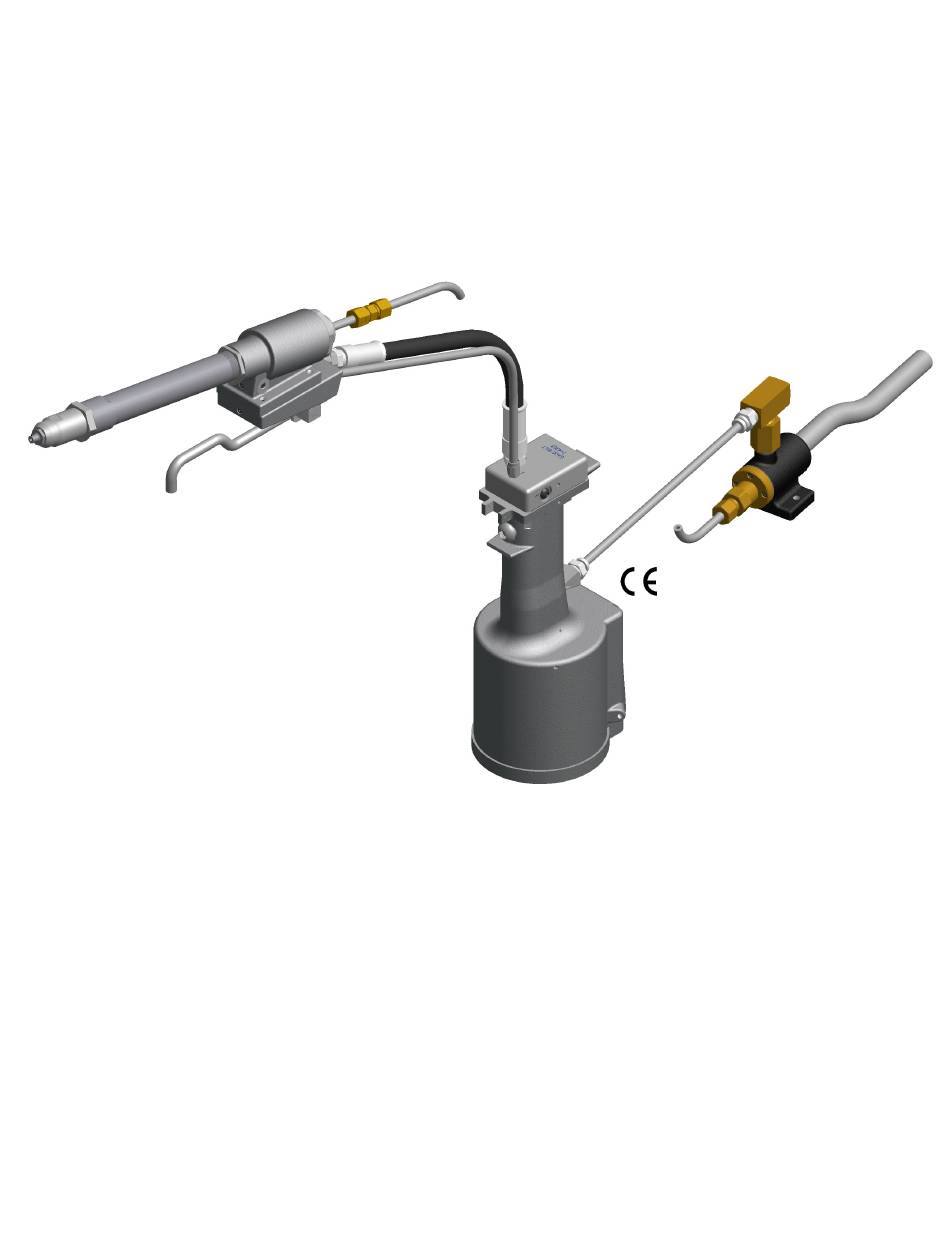

- Page 1 GB703SRVT/4N6E INSTALLATION TOOL GAGE BILT TOOLS ARE AVAILABLE WORLDWIDE E-MAIL US FOR A DISTRIBUTOR NEAR YOU. GAGE BILT Inc. GAGE BILT 44766 Centre Court (586) 226-1500 Clinton Twp. MI 48038 (586) 226-1505 Fax e-mail: solutions@gagebilt.com/ www.gagebilt.com MADE IN U.S.A.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Description Page Warnings ..................................... 3 Principle of Operation ................................4 How to use the GB703SRVT/4N6E ............................5 Description, Maintenance and Hydraulic Thread Preparation ....................6 Filling and Bleeding .................................. 7 Troubleshooting ..................................8 Overhaul ..................................... 9 Disassembly and Parts Lists ............................. 10-12 DEXRON®... -
Page 3: Warnings
73.2 dB (A). In this for damage or wear. Any repair should be done by condition the max level was 81.5 dB (A). Therefore, qualified personnel trained on Gage Bilt it is required where prolonged use, hearing procedures. -
Page 4: Principle Of Operation
PRINCIPLE OF OPERATION When the lever assy is depressed, the pressurized air inside of the tool is released allowing spring pressure to move the valve spool assy causing the air to be redirected. The air is directed to the top of the air piston assy, moving it in a downward direction. The air below the air piston assy is then directed through the valve sleeve and exhausted out of the bottom of the tool. -
Page 5: How To Use The Gb703Srvt/4N6E
HOW TO USE THE GB703SRVT/4N6E WARNING: Operator MUST read and understand all warnings and cautions. WARNING: It is required that eye protection and hearing protection be worn during operation. WARNING: Do not pull rivet in the air. Personal injury from fastener ejecting may occur. -
Page 6: Description, Maintenance And Hydraulic Thread Preparation
(.68kg)! The entire split handle riveter weighs 11 lbs. (4.99 kg). It has a .780” (19.81mm) rivet setting stroke. The GB703SRVT/4N6E split handle riveter operates with 90 to 100 psi (6.2-6.9 bar) providing maximum efficiency. At 90 psi, (6.2 bar) the GB703SRVT/4N6E does not exceed 81.5 dB (A) and consumes 3 cfm at 20 cycles per minute. -
Page 7: Filling And Bleeding
FILLING & BLEEDING PROCEDURE: NOTE: Air Bleeder Assy (704153) and Fill bottle Assy (745163) are required. NOTE: To replace a small amount of oil follow BLEEDING steps 5-6. Apply Loctite 242 to all cap screws. WARNING: Do not cycle tool without air bleeder assy (704153), or button head cap screw (402482) and stat-o-seal (S572), installed in tool head. Severe personal injury could result. -
Page 8: Troubleshooting
TROUBLESHOOTING Providing all maintenance conditions have been met, follow this systematic approach to diagnosis. 1. MORE THAN ONE PULL IS REQUIRED TO BREAK RIVET. a) Tool needs to be bled. (See filling and bleeding instructions.) b) Spring has fatigued, replace. c) Jaws are stripped or packed with chips. -
Page 9: Overhaul
WARNING: Tool must be maintained in a safe working condition at all times and examined on a regular daily basis for dam age or wear. Any repair should be done by qualified personnel trained on Gage Bilt procedures. WARNING: When operating, repairing or overhauling tool, wear approved eye protection. Do not look in front of tool or rear of tool when installing fastener. -
Page 10: Disassembly And Parts Lists
HEAD WARNING: Dispose of Hydraulic Oil in accordance with applicable regulations. Remove nose assembly and adapter from tool before attempting disassembly of head cylinder assy. Remove end cap (703114). Push against threaded end of piston (703607) to slide it out of head cylinder assy (703134). Be careful not to damage threads or cause burrs on polished piston (703607) surface. - Page 11 ASSEMBLY INSTRUCTIONS FOR 703589 (NATURAL), 703595 (RED) & ASSEMBLY INSTRUCTIONS FOR 703596 (GREEN) EVACUATION TUBE 703595 EVACUATION TUBE 703595 703533 703589, 703595 OR 703596 UNION FOLLOWER EVACUATION TUBE TO ENSURE CONSISTENT PINTAIL EVACUATION: 1) SLIDE EVACUATION TUBE & FOLLOWER THRU OPPOSITE ENDS OF FITTING UNTIL THE TOUCH AT APPROXIMATELY THE MIDDLE OF 703533 UNION.
- Page 12 HANDLE To inspect air cylinder bore, remove base cover (704125). Any further disassembly will require removal of the manifold-handle (744303) first. For complete disassembly, start by removing base cover (704125). Next, holding tool upright, remove four screws (A-928). Lift manifold-handle (744303) from handle assy (704132) and set aside o'ring (S832) and gasket (704129).
-
Page 13: Dexron® Iii Oil Safety Data
DEXRON® III OIL SAFETY DATA FIRST AID MEASURES Eye: No specific first aid measures are required. As a precaution, remove contact lenses, if worn, and flush eyes with water. Skin: No specific first aid measures are required. As a precaution, remove clothing and shoes if contaminated. To remove the material from skin, use soap and water. -
Page 14: Eu Conformity And Warranty
GAGE BILT DECLARATION OF CONFORMITY MANUFACTURER: Gage Bilt Inc. 44766 Centre Ct. Clinton Twp. Michigan (586-226-1500) WE DECLARE THAT THE EQUIPMENT SPECIFIED HEREIN CONFORMS TO THE FOLLOWING DIRECTIVES AND STANDARDS Machinery Directive 2006/42/EC EN12100-1 & EN12100-2 EN792-1:2000+A1 EU REPRESENTATIVE Edgar Hausmann GmbH Förster-Busch-Str. 10 D-34346 Hann. Münden Germany EQUIPMENT DESCRIPTION: GB703SRVT/4N6E FASTENER INSTALLATION TOOL This product specified above conforms to the above dIrectives and standards.
