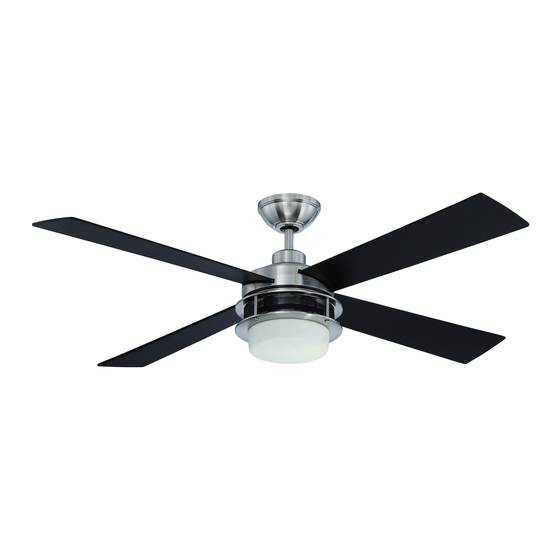

Craftmade Ellington UBR52BNK4 Installation Manual

Hide thumbs

Table of Contents

Quick Links

Download this manual

Federal regulations require ceiling fans

with light kits manufactured or imported

after January 1, 2009, to limit total

wattage consumed by the light kit to

190W.

Therefore, this fan is equipped

with a wattage limiting device.

Installation Guide

For Models:

UBR52BNK4

UBR52ESP4

E192641

net weight of fan: 15.12 lb (6.86 kg)

READ THESE INSTRUCTIONS AND

SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the Ellington UBR52BNK4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftmade Ellington UBR52BNK4

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Federal regulations require ceiling fans with light kits manufactured or imported after January 1, 2009, to limit total wattage consumed by the light kit to 190W. Therefore, this fan is equipped with a wattage limiting device.
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, inches 7 feet (76cm) ensure that the hanging location allows the (2.13m) blades a clearance of 7 feet (2.13m) from the floor and 30in. (76cm) from any wall or 12ft - 20ft obstruction.
Page 5: Fan Assembly. Pgs
5. Fan Assembly. If you wish to extend the hanging length of your fan, you must remove the hanging ball from the set screw hole set screw downrod provided to use with an extended stop pin downrod (sold separately). [If you wish to use the downrod provided, please proceed to instructions following the dotted line below.] hanging ball...
Page 6 5. Fan Assembly. (cont.) With the hanging bracket secured to the outlet box and able to support the fan, you are now ready to hang your fan. Grab the fan safety cable loop wood firmly with two hands. Slide downrod ceiling through opening in hanging bracket and let joist...
Page 7: Wiring
6. Wiring. Modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment. *NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide CAUTION: Be sure outlet box is properly grounded reasonable protection against harmful interference in a residential installation.
Page 8: Canopy Assembly
7. Canopy Assembly. antenna receiver hanging Locate 2 screws on underside of hanging bracket bracket and remove screw closest to the open end of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging bracket. Place rounded part of slotted hole in canopy over loosened screw in hanging bracket and push up.
Page 9: Light Kit Assembly
9. Light Kit Assembly. motor housing blade Remove 1 screw from motor plate on underside of motor housing and partially loosen the other 2 screws. Align slotted holes in center of fitter plate with loosened screws in motor plate, allowing molex connections from motor housing to come through hole in middle of fitter plate.
Page 10: Automated Learning Process./ Activating Code
10. Automated Learning Process./ TRANSMITTER Activating Code. (front) CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. This remote control transmitter is equipped with 16 code combinations to prevent possible interference from or to other remote units such as garage door openers, car alarms or security systems.
Page 11: Remote Control Operation
12. Remote Control Operation. HI button - turns fan to HIGH speed MED button - turns fan to MEDIUM speed LOW button - turns fan to LOW speed OFF button - turns fan OFF button - controls LIGHT function: turns light ON/OFF when tapped quickly.
Page 12: Troubleshooting
Return fan, shipping prepaid, to 4. Verify that receiver is wired properly. Craftmade/Ellington. We will repair or ship you a 5. Verify that wall control is wired properly. 6. Check to be sure fan is wired properly.
