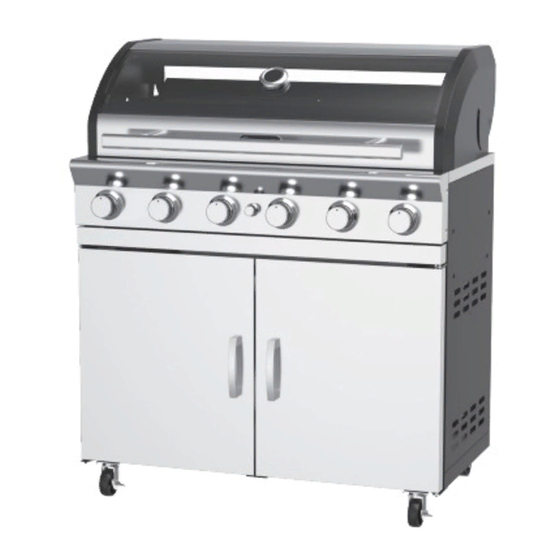

AVENIR
6 BURNER KITCHEN
Model No. BQ2026KIT
Double skinned 201 grade stainless steel roasting
hood with viewing window and temperature gauge
201 grade stainless steel fascia and cabinet doors with
powder coated cabinet trolley
Cast iron hotplates and grill with enamel warming rack
Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au
Important: Retain these instructions for future use.
Stainless steel tubular burners lit by electronic ignition
Complete with hose and regulator
Total cooking area (mm): 960W x 460D
Approved to Australian and New Zealand Standards
Aber Living - Hamilton, N.Z. www.gasmate.co.nz
04207-09/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Avenir BQ2026KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gasmate Avenir BQ2026KIT

Summary of Contents for Gasmate Avenir BQ2026KIT

  • Page 1 Approved to Australian and New Zealand Standards Cast iron hotplates and grill with enamel warming rack Important: Retain these instructions for future use. Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber Living - Hamilton, N.Z. www.gasmate.co.nz 04207-09/20...

  • Page 2: General Information

    GENERAL INFORMATION If you are unable to correct the leak by tightening the connections, turn off the gas and contact the supplier IMPORTANT immediately. Read these instruction carefully prior to use. Always ensure the barbecue is kept away from flammable Familiarise yourself with the appliance before materials and the gas cylinder clear of any heat source.
  • Page 3 GENERAL INFORMATION FOR YOUR SAFETY • This barbecue must not be used indoors. • Only use in well ventilated areas. Failure to comply with these instructions could result • CARBON MONOXIDE HAZARD - USING THIS in a fire or explosion which could cause serious bodily injury, death or property damage.
  • Page 4 GENERAL INFORMATION Location of your Barbecue Tools You Will Need DO NOT use your barbecue in garages, porches, Standard Phillips-head screw driver (or cordless drill breezeways, sheds or other enclosed areas. Your and bits) and Adjustable spanner (open ended shifter) or barbecue is to be used OUTDOORS.

  • Page 5: Exploded Diagram

    EXPLODED DIAGRAM No. Description No. Description No. Description Fire Box Fat tray bracket Crossfire Bottom shelf Fat tray Big control knob Swivel Castor Fat tray front fascia Pulse Ignitor Locking Swivel Castor Flame tamer Screw M6x15 Left side panel Cooking grill Screw M6x12 Right side panel Hotplate...
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 1 Use 16x M6x15mm screws (A) and 16x M6 spring washers (E) to attach 2x swivel castors (3) and 2x locking swivel castors (4) to the base panel (2). STEP 2 Use 4x M6x12mm screw (B) to attach cabinet left side panel (5) and cabinet right side panel (6) to the base panel (4). Use 2x M4x12mm screw (D) attach Upper door bracket (7).
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 3 Use 5x M6x12mm screws (B) to attach cabinet back panel (8). Note: DO NOT tighten the screws of this step now. STEP 4 Use 4x M6x12mm screws (B) to attach cabinet horizontal shelf (9).
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 5 Use 4x M6x12mm screws (B) to attach the door handle (12) to door (10,11). STEP 6 Attach doors (10,11) to completed cabinet by inserting the bottom door locator into holes, then pressing down on the top locator insert them into top door locator.
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 7 Use 6x M6x12mm screws (B) to attach the flat tray bracket (13) to main cabinet. STEP 8 Attach hose and gas regulator assembly (23) to firebox assembly (1). Use 4x M6x12mm screws (B) to attach firebox to the cabinet, making sure that the locators insert into the base of the firebox (1).
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 9 Use 3x M5x12mm screws (C) to attach the flat tray front fascia (15) to the flat tray (14). STEP 10 Insert 4x flame tamers (16).
  • Page 11 STEP 11 Insert 2x cooking grills (17) and 1x hotplate (18) into firebox. STEP 12 Insert warming rack (19).
  • Page 12 STEP 13 Insert AA battery into the ignition pack with battery facing the correct way (+ facing out). STEP 14 Position 9kg propane gas cylinder into the BBQ trolley and screw in the BBQ gas regulator. Step 12 Attach the regulator to your gas cylinder. Step 14 Use a solution of soapy water (dishwashing liqu and water is fine).
  • Page 13 ASSEMBLY INSTRUCTIONS Step 14 STEP 15 STEP 16 Step 13 Use a solution of soapy water (dishwashing liquid Step 13 Turn on the gas cylinder ensuring that all of the controls Turn on the gas cylinder ensuring that all of the Use a solution of soapy water (dishwashing liquid and and water is fine).

  • Page 14: General Assembly

    GENERAL ASSEMBLY Connecting & Disconnecting to Gas Source Regulator Safety Feature Familiarize yourself with the general information and All QCC regulators (the part that attaches to the gas safety guidelines located at the front of this manual. cylinder to regulate the flow of gas) have a safety feature included that restricts gas flow in the event of a gas leak.

  • Page 15: Lighting Procedure

    LIGHTING PROCEDURE Burner Operation & Ignition System Check 9. Adjust the heat by turning each control knob to the “HIGH”/”LOW” position. 1. Open the hood of the barbecue before attempting to 10. To turn the barbecue ‘OFF’ turn the cylinder valve to light the burners.

  • Page 16: Operating Procedure

    OPERATING PROCEDURE Burn Off Cooking Surfaces Approximate Cooking Time We recommend operating your barbecue on its highest The table below shows approximate cooking times with setting for 15-20 minutes prior to first use. This aids the control set to ‘MEDIUM’ temperature. removing the oils used during manufacturing.

  • Page 17: Care And Maintenance

    CARE & MAINTENANCE Care of Cooking Surface As with all appliances, proper care and maintenance will keep them in top operating condition and prolong Use and care of the cooking surface is important. Do not their life. Your new gas barbecue is no exception. By use pans on the cooking surface.

  • Page 18: Natural Gas Conversion

    • NATURAL GAS APPLIANCE. TO BE INSTALLED ONLY BY AN AUTHORISED PERSON. • THE AUTHORISED PERSON WILL PROVIDE A CERTIFICATE OF COMPLIANCE. • A Gasmate NGC30 or NGC40 AGA approved natural gas pressure regulator must be installed in the pipeline and be set at 1 kPa.

  • Page 19: Safe Appliance Locations

    SAFE APPLIANCE LOCATIONS Within a partial enclosure that includes an overhead cover and no more than two walls This appliance shall only be used in an above ground (see Example 2 & 3). open-air situation with natural ventilation, without Within a partial enclosure that includes an overhead stagnant areas, where gas leakage and products of cover and more than two walls, the following will apply: combustion are rapidly dispersed by wind and natural...
  • Page 20 For any queries or assistance call Customer Service (Australia Only) 1300 174 876 Hours of operation: Monday to Friday 8am - 5pm EST Do not return to place of purchase. Keep your purchase receipt, this will be required to make any claims under the 12 month warranty.
