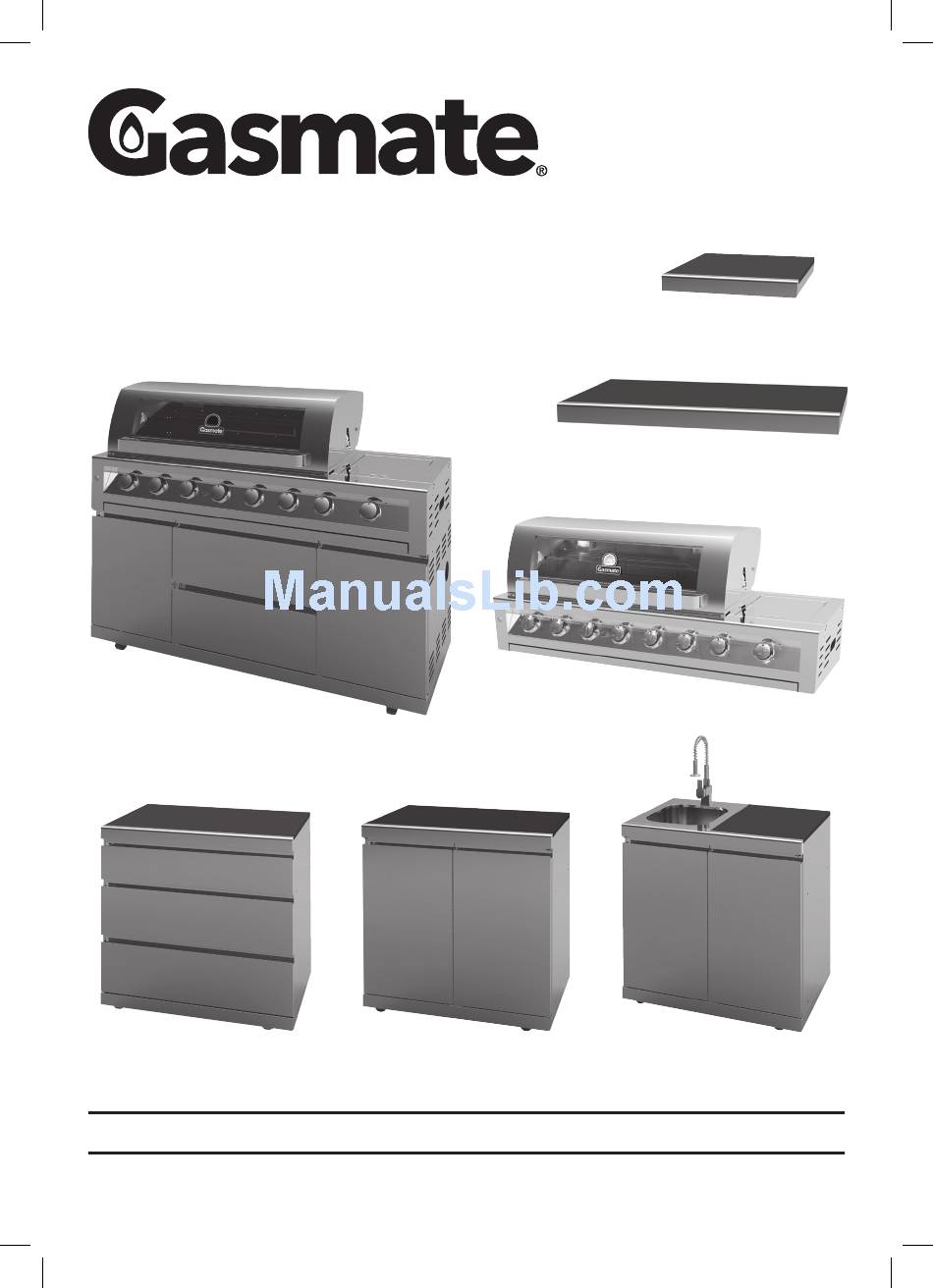

GALAXY
BBQ & MODULES
6 BURNER BBQ
Model No. BQ1090, BQ1090NG,
BQ1090BL, BQ1090BLNG
DRAWER MODULE
Model No. BQ1093, BQ1093BL
Important: Retain these instructions for future use.
STORAGE MODULE
Model No. BQ1092, BQ1092BL
Gasmate® is a registered trademark of
Sitro Group Australia Pty Ltd
www.gasmate.com.au
Aber, N.Z.
www.gasmate.co.nz
1 DOOR FRIDGE TOP
Model No. BQ1094
2 DOOR FRIDGE TOP
Model No. BQ1095
BUILT IN BBQ
Model No. BQ1090B, BQ1090BNG,
BQ1090BLB, BQ1090BLBNG
SINK MODULE
Model No. BQ1091, BQ1091BL
03730 03/18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gasmate BQ1094
Summary of Contents for Gasmate BQ1094
- Page 1 STORAGE MODULE SINK MODULE Model No. BQ1093, BQ1093BL Model No. BQ1092, BQ1092BL Model No. BQ1091, BQ1091BL Important: Retain these instructions for future use. Gasmate® is a registered trademark of 03730 03/18 Sitro Group Australia Pty Ltd www.gasmate.com.au Aber, N.Z. www.gasmate.co.nz...
-
Page 2: Read Me First
READ ME FIRST GAS LEAK TESTING It is important that you leak test the BBQ before first use and every time the gas cylinder is refilled and reconnected to the BBQ. To Complete Leak Test • Make sure all the control knobs are OFF. •... -
Page 3: General Information
GENERAL INFORMATION FOR YOUR SAFETY • Never test for gas leaks with a lit match or open flame. Never light barbecue with hood closed or Failure to comply with these instructions could before checking to ensure the burner tubes are result in a fire or explosion which could cause fully seated over gas valve orifices. -
Page 4: If You Smell Gas
GENERAL INFORMATION Hose & Regulator Safety The regulator and hose assembly supplied with the IMPORTANT barbecue are suitable for Propane Gas. Read these instruction carefully prior to use. A gas regulator adjusted to have an outlet pressure of Familiarise yourself with the appliance before 2.75kPa is supplied for connection to the propane gas connecting it to it’s gas container. -
Page 5: Electrical Information
ELECTRICAL INFORMATION To reduce the risk of personal injury or damage to property, follow basic safety precautions IMPORTANT SAFEGUARDS when using this product, including the following: READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE PRODUCT. KEEP • DO NOT use the Product for other than its intended THE INSTRUCTIONS HANDY FOR FUTURE use as described in these instructions. -
Page 6: Electrical Data
ELECTRICAL DATA GENERAL ASSEMBLY CONNECTING & DISCONNECTING TO THE IMPORTANT GAS SOURCE This product is fitted with a sealed electrical connection Familiarise yourself with the general information and plug that is compatible with the product, the mains safety guidelines located at the front of this manual. supply for Australia and meets the requirements of international standards. -
Page 7: Lighting Procedure
LIGHTING PROCEDURE Burner Operation & Ignition System Check 1. Turn the control knobs clockwise to “OFF” position. IMPORTANT 2. Connect the regulator to the gas bottle. Turn the gas • NOTE: If for some reason, ignitor fails to produce supply “ON” at the cylinder. Check with the use of a spark at the electrode, barbecue can be lit by soapy water for any gas leakage between the bottle a long barbecue match. -
Page 8: Operating Procedure
OPERATING PROCEDURE Burn-off Roasting The cooking surface does not need any burn-off time For best results when roasting remove the hotplate and after first use. centre the grill. The outer two burners should be used on the low to medium setting. Preheating Adjust the control knob to maintain the temperature It is necessary to preheat the barbecue for at least 5... -
Page 9: Care And Maintenance
CARE & MAINTENANCE Location of your Barbecue As with all appliances, proper care and maintenance will keep them in top operating condition and prolong DO NOT use your barbecue in garages, porches, sheds, their life. Your new gas barbecue is no exception. By breezeways, or other enclosed areas. -
Page 10: Cleaning The Burner
CLEANING THE BURNER Follow these instructions to clean and/or replace burners. WARNING 1. Turn gas off at control knobs and gas cylinder. Beware of spiders and wasps. Burner tube should be 2. Remove cooking grates and grease tray. inspected and cleaned periodically. 3. - Page 11 EXPANDED VIEW - BQ1090, BQ1090BL Description Quantity Description Quantity Flame tamer Main body Cooking plate Warming rack Trolley right panel Cooking grid Trolley rear panel Fat tray Trolley bottom panel Right door Trolley right inner panel Trolley top panel Drawer Gas bottle holder Shelf inside cabinet Trolley left inner panel...
- Page 12 ASSEMBLY INSTRUCTIONS IMPORTANT: Remove any transit protection material before use. Tools required: Unscrew ignition cap and place a Battery (Size: AA) into place with the (+) end facing outwards. Screw cap back on. Upon pressing the ignition button, you should hear a clicking sound. STEP 1 Unscrew ignition cap and place a Battery (size AA) into place with the (+) end facing outwards.
- Page 13 EXPANDED VIEW - BQ1090B, BQ1090BLB Description Quantity Description Quantity Flame tamer Main body Cooking plate Warming rack Side burner grid Cooking grid Fat tray Side bracket Adjustable feet Transformer...
- Page 14 ASSEMBLY INSTRUCTIONS STEP 1 Assemble the side bracket or adjustable feet.
- Page 15 BUILT-IN BBQ DIMENSIONS 1488 (BQ1090B) GAS CYLINDER NOT TO BE INSTALLED UNDERNEATH NOTE: TO BE INSTALLED BY AN AUTHORISED PERSON. PLEASE NOTE: MINIMUM CLEARANCE TO COMBUSTIBLES UNDER FAT TRAY IS 150mm. THE MATERIAL FOR THE CABINET (ISLAND) MUST NOT BE COMBUSTIBLE.
-
Page 16: Natural Gas Conversion
• NATURAL GAS APPLIANCE. TO BE INSTALLED ONLY BY AN AUTHORISED PERSON. • THE AUTHORISED PERSON WILL PROVIDE A CERTIFICATE OF COMPLIANCE. • A Gasmate NGC30 or NGC40 AGA approved natural gas pressure regulator must be installed in the pipeline and be set at 1 kPa. -
Page 17: Safe Appliance Locations
SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover. -
Page 18: Tools Required
ASSEMBLY INSTRUCTIONS Tools Required Standard Phillips-head screw driver. IMPORTANT To join your kitchen together use 2 wing screws and nuts as shown. Remove all packing and transit protection before assembly. CAUTION: Ensure no packing material is left in BBQ before lighting. - Page 19 SINK MODULE - BQ1091, BQ1091BL The sink module is flexible, follow the below steps to interchange it. Bin support interchange...
- Page 20 SINK MODULE - BQ1091, BQ1091BL Add the shelves (total 3pcs) into the cabinet locating the rear pins through the back panel and securing with the clips then loosen the screws at each of the front corners (see diagram below). Finally secure by tightening the screws.
- Page 21 STORAGE MODULE - BQ1092, BQ1092BL Add the shelves (total 6pcs) into the cabinet in the same way as for the Sink Module (see BQ1091). DRAWER MODULE - BQ1093, BQ1093BL...
- Page 22 BBQ side panels. Fix the infill panel at the base with a screw and nut to each module. TOP FOR 1 DOOR BAR FRIDGE - BQ1094 Rest the Frame top onto the fridge, with the front fascia overhanging at the front.
- Page 23 TOP FOR 2 DOOR BAR FRIDGE - BQ1095 Rest the Frame top onto the fridge, with the front fascia overhanging at the front. Push the frame backwards until the front of the frame catches under the front of the fridge. Attach the brackets to the underside of the frame using the screws provided (as shown below).
- Page 24 For any queries or assistance call Customer Service (Australia Only) 1300 174 876 Hours of operation: Monday to Friday 8.30am - 5.30pm EST Do not return to place of purchase. Keep your purchase receipt, this will be required to make any claims under the 12 month warranty.
