DOREL ASIA

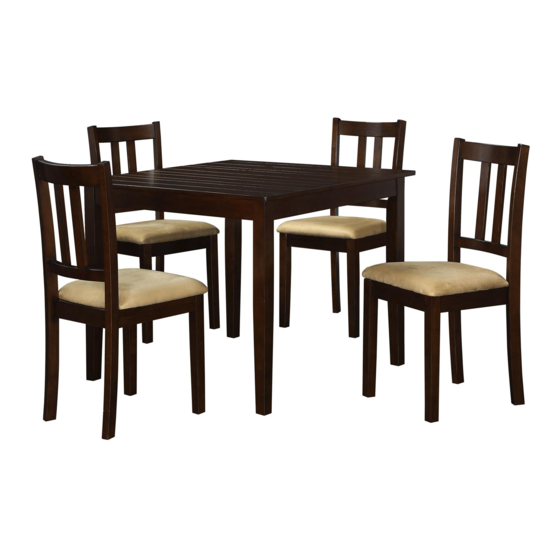

5-PC Dining Set
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
0-65857-16970-6
THIS INSTRUCTION BOOKLET
KEEP FOR FUTURE REFERENCE.
(TAKEN FROM CARTON)
_____________________________________
Date of purchase:
_______ / _______ / _______
NEED HELP!
Tel #: 1-800-295-1980
CALL US FOR A
E-Mail: das@dorel.com
1-800-295-1980
Fax #: 514-353-7819
DO NOT RETUR
E-MAIL:DAS@D
Model No:
DA7239
UPC CODE:
NOTE:
Lot number:
Advertisement
Table of Contents
Related Manuals for Dorel DA7239
Summary of Contents for Dorel DA7239
- Page 1 DOREL ASIA Model No: 5-PC Dining Set DA7239 UPC CODE: 0-65857-16970-6 NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Lot number: (TAKEN FROM CARTON) _____________________________________ Date of purchase: _______ / _______ / _______ DO NOT RETURN PRODUCT TO THE STORE.
-
Page 2: Care And Cleaning
Check bolts/screws periodically and tighten them if necessary. LIMITED WARRANTY Dorel Asia warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase. -
Page 3: Hardware List
5-PC Dining Set DA7239 HARDWARE LIST Ø5/16" X 23MM FLAT WASHER 8 PCS 8 PCS Ø5/16" X 19MM Ø5/16" X 11MM FLAT WASHER SPRING WASHER 36 PCS 44 PCS Ø5/16" X 1-1/2" Ø5/16" X 3" BOLT BOLT 4 PCS 16 PCS Ø5/16"... -
Page 4: Parts List
5-PC Dining Set DA7239 PARTS LIST TABLE TOP TABLE LEG 1 PC 4 PCS BACK FRAME SEAT FRAME 4 PCS 4 PCS SEAT CUSHION CHAIR LEG 4 PCS 8 PCS... - Page 5 5-PC Dining Set DA7239 STEP 1 With the help of another person, place table top (A) upside down on a clean smooth surface. Attach table legs (B) to table top (A) with nuts (1), spring washers (4) and flat washers (2).
- Page 6 5-PC Dining Set DA7239 STEP 2 Attach seat frame (D) to back frame (C) with bolts (6), spring washers (4) and flat washers (3) through the corners of seat frame (D). Secure the center of seat frame (D) to back frame (C) with bolt (5), spring washer (4) and flat washer (3).
- Page 7 5-PC Dining Set DA7239 STEP 3 Attach the legs (F) to seat frame (D) with bolts (7), spring washers (4) and flat washers (3). Use Allen key (10) to tighten the bolts. NOTE: Tighten all the bolts installed in previous steps.
- Page 8 5-PC Dining Set DA7239 STEP 4 Attach seat cushion (E) with wood screws (8) as shown below. Use a Phillips head screw driver (not included) to tighten all wood screws (8). Turn the chair upright. NOTE: Once all bolts have been installed, apply a downward force on the chair.
- Page 9 5-PC Dining Set DA7239 CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury. That's it ! You've finished assembling your dining set.
-
Page 10: Customer Service
MODEL #: DA7239 Customer Service PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S). Customer Service Phone Number 1-800-295-1980 Email: das@dorel.com Customer Service Fax Number 514-353-7819...
