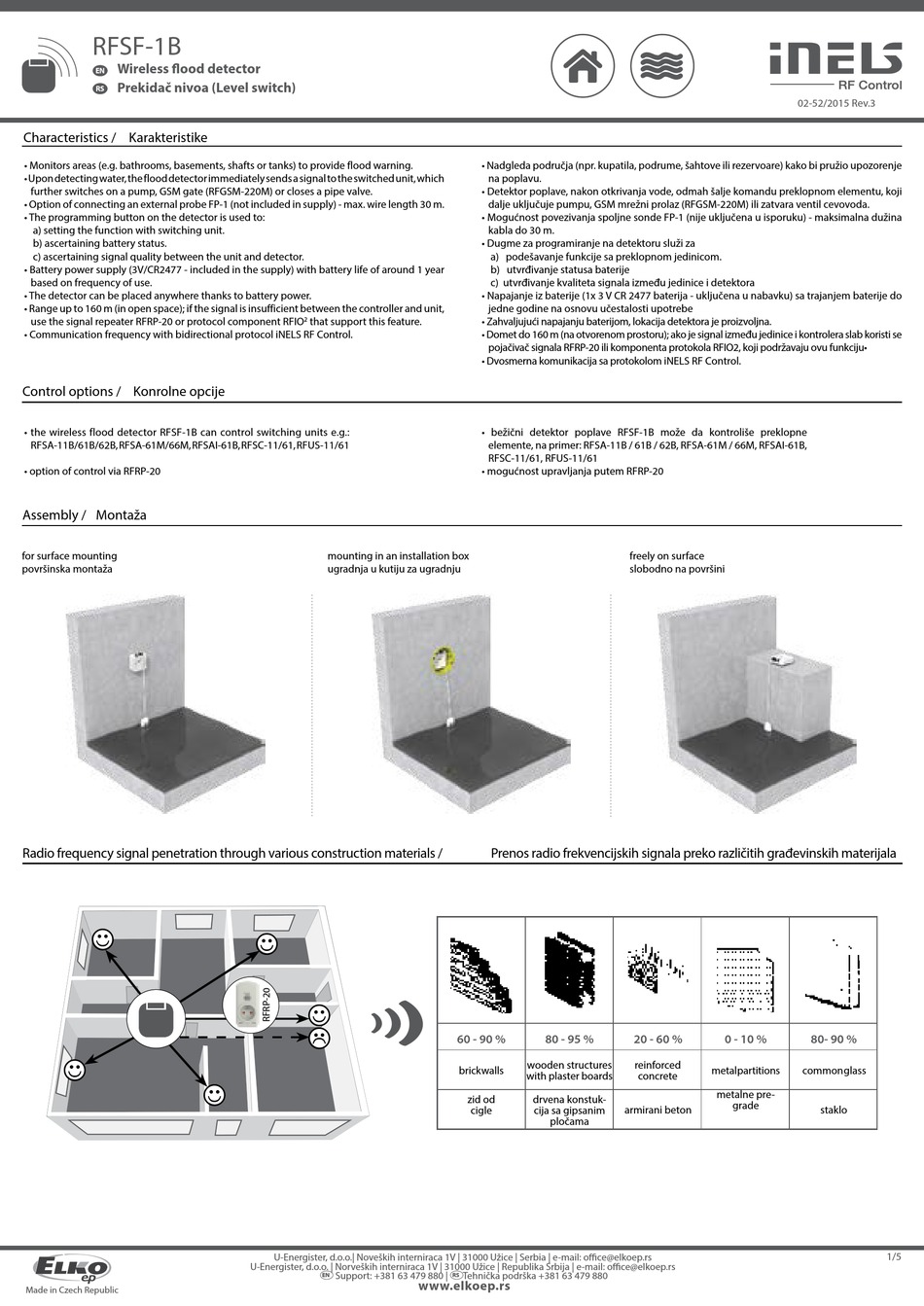

RFSF-1B

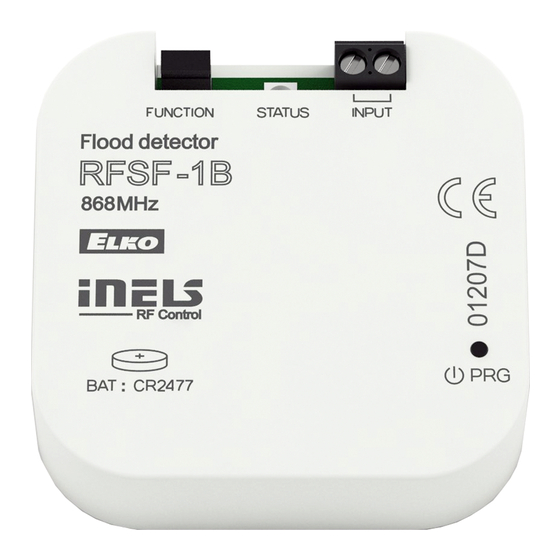

Wireless flood detector
EN
Prekidač nivoa (Level switch)
RS
Characteristics /
Karakteristike
• Monitors areas (e.g. bathrooms, basements, shafts or tanks) to provide flood warning.
• Upon detecting water, the flood detector immediately sends a signal to the switched unit, which
further switches on a pump, GSM gate (RFGSM-220M) or closes a pipe valve.
• Option of connecting an external probe FP-1 (not included in supply) - max. wire length 30 m.
• The programming button on the detector is used to:
a) setting the function with switching unit.
b) ascertaining battery status.
c) ascertaining signal quality between the unit and detector.
• Battery power supply (3V/CR2477 - included in the supply) with battery life of around 1 year
based on frequency of use.
• The detector can be placed anywhere thanks to battery power.
• Range up to 160 m (in open space); if the signal is insufficient between the controller and unit,
use the signal repeater RFRP-20 or protocol component RFIO
• Communication frequency with bidirectional protocol iNELS RF Control.
Control options /
Konrolne opcije
• the wireless flood detector RFSF-1B can control switching units e.g.:
RFSA-11B/61B/62B, RFSA-61M/66M, RFSAI-61B, RFSC-11/61, RFUS-11/61
• option of control via RFRP-20
Assembly /
Montaža
for surface mounting
površinska montaža
Radio frequency signal penetration through various construction materials /
Made in Czech Republic
2
that support this feature.
mounting in an installation box
ugradnja u kutiju za ugradnju
U-Energister, d.o.o.| Noveških interniraca 1V | 31000 Užice | Serbia | e-mail: office@elkoep.rs
U-Energister, d.o.o. | Norveških interniraca 1V | 31000 Užice | Republika Srbija | e-mail: office@elkoep.rs
Support: +381 63 479 880 |
EN
• Nadgleda područja (npr. kupatila, podrume, šahtove ili rezervoare) kako bi pružio upozorenje
na poplavu.
• Detektor poplave, nakon otkrivanja vode, odmah šalje komandu preklopnom elementu, koji
dalje uključuje pumpu, GSM mrežni prolaz (RFGSM-220M) ili zatvara ventil cevovoda.
• Mogućnost povezivanja spoljne sonde FP-1 (nije uključena u isporuku) - maksimalna dužina
kabla do 30 m.
• Dugme za programiranje na detektoru služi za
a) podešavanje funkcije sa preklopnom jedinicom.
b) utvrđivanje statusa baterije
c) utvrđivanje kvaliteta signala između jedinice i detektora
• Napajanje iz baterije (1x 3 V CR 2477 baterija - uključena u nabavku) sa trajanjem baterije do
jedne godine na osnovu učestalosti upotrebe
• Zahvaljujući napajanju baterijom, lokacija detektora je proizvoljna.
• Domet do 160 m (na otvorenom prostoru); ako je signal između jedinice i kontrolera slab koristi se
pojačivač signala RFRP-20 ili komponenta protokola RFIO2, koji podržavaju ovu funkciju•
• Dvosmerna komunikacija sa protokolom iNELS RF Control.
• bežični detektor poplave RFSF-1B može da kontroliše preklopne
elemente, na primer: RFSA-11B / 61B / 62B, RFSA-61M / 66M, RFSAI-61B,
RFSC-11/61, RFUS-11/61
• mogućnost upravljanja putem RFRP-20
Prenos radio frekvencijskih signala preko različitih građevinskih materijala
60 - 90 %
80 - 95 %
wooden structures
brick walls
with plaster boards
zid od
drvena konstuk-
cigle
cija sa gipsanim
pločama
Tehnička podrška +381 63 479 880
RS
www.elkoep.rs
02-52/2015 Rev.3
freely on surface
slobodno na površini
20 - 60 %
0 - 10 %
reinforced
metal partitions
concrete
metalne pre-
grade
armirani beton
80- 90 %
common glass
staklo
1/5
