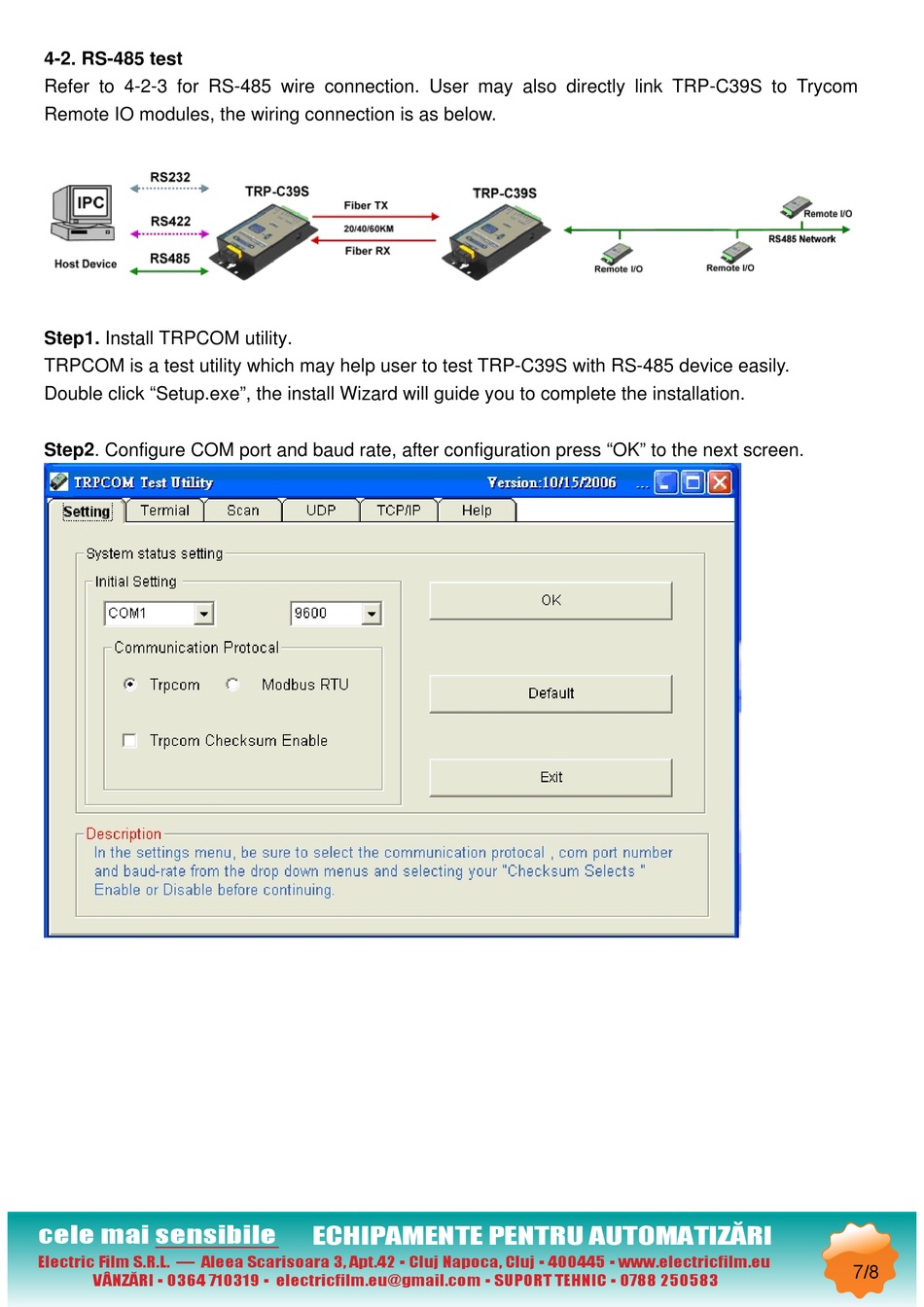

4-2. RS-485 test

Refer to 4-2-3 for RS-485 wire connection. User may also directly link TRP-C39S to Trycom
Remote IO modules, the wiring connection is as below.
Step1. Install TRPCOM utility.
TRPCOM is a test utility which may help user to test TRP-C39S with RS-485 device easily.
Double click "Setup.exe", the install Wizard will guide you to complete the installation.
Step2. Configure COM port and baud rate, after configuration press "OK" to the next screen.
