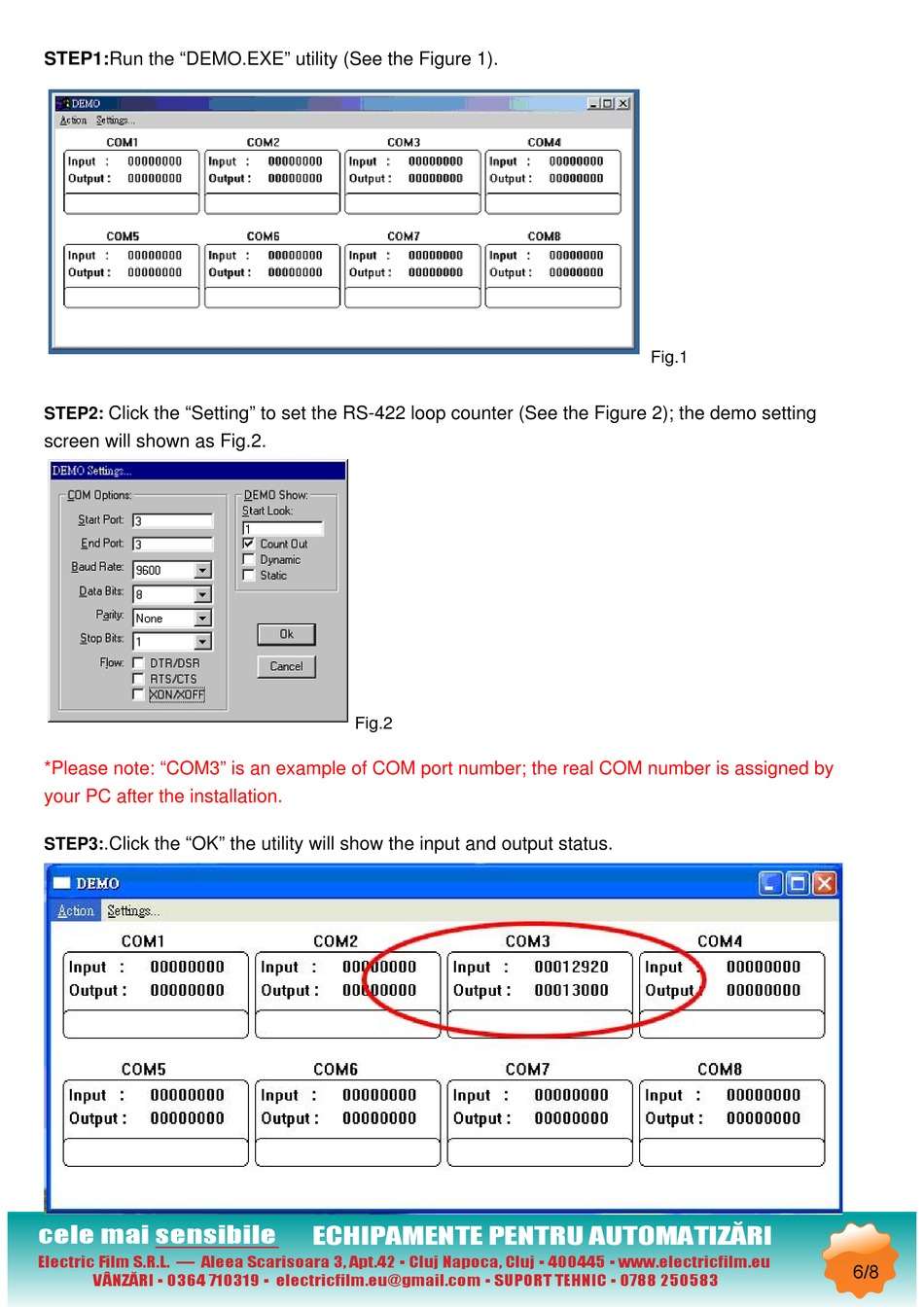

Trycom Technology TRP-C39S User Manual page 6

STEP1:Run the "DEMO.EXE" utility (See the Figure 1).
Click the "Setting" to set the RS-422 loop counter (See the Figure 2); the demo setting
STEP2:
screen will shown as Fig.2.
*Please note: "COM3" is an example of COM port number; the real COM number is assigned by
your PC after the installation.
.Click the "OK" the utility will show the input and output status.
STEP3:
cele mai sensibile
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ electricfilm.eu@gmail.com ▪ SUPORT TEHNIC ▪ 0788 250583
Fig.2
ECHIPAMENTE PENTRU AUTOMATIZĂRI
Fig.1
6/8
