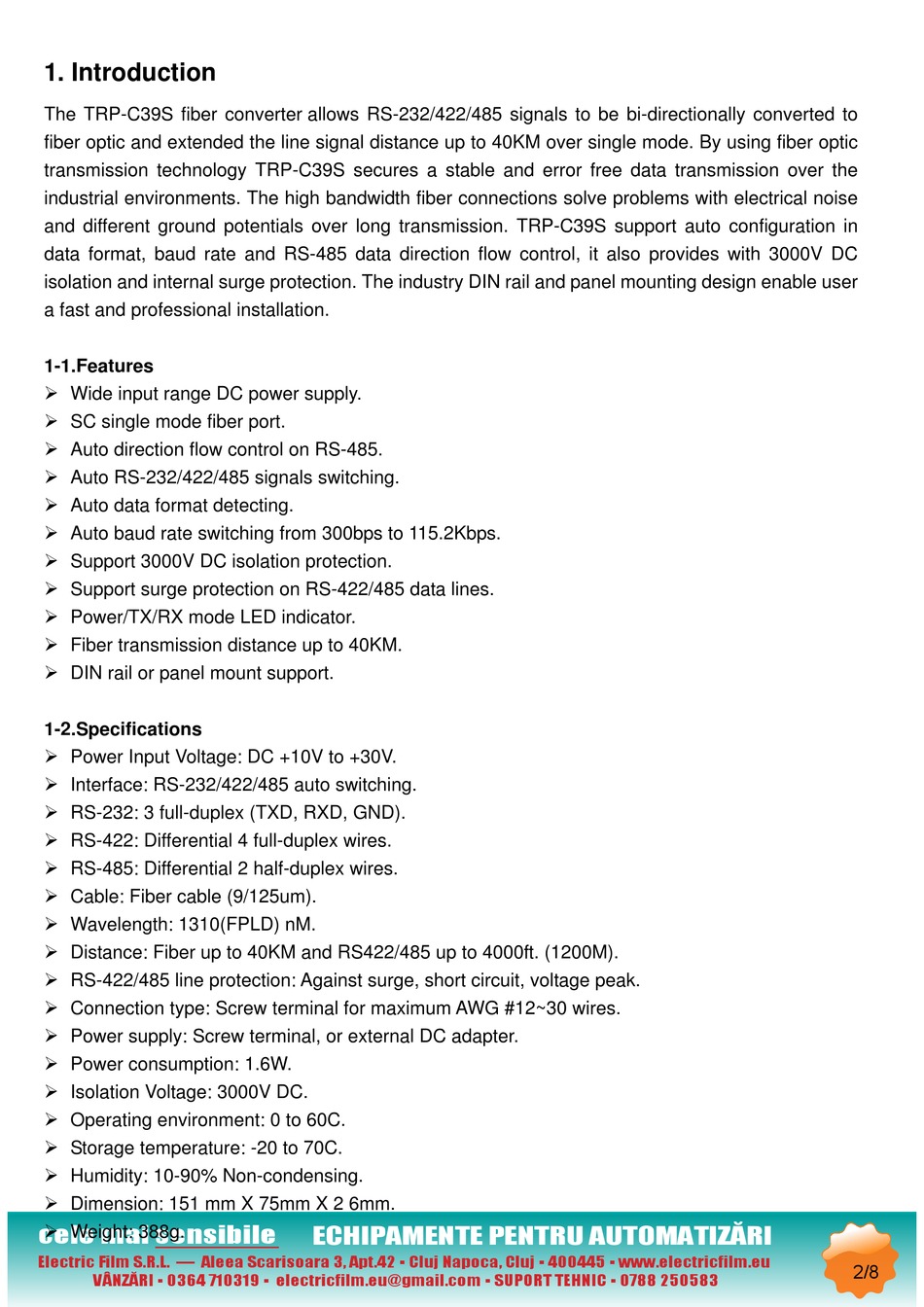

1. Introduction

The TRP-C39S fiber converter allows RS-232/422/485 signals to be bi-directionally converted to
fiber optic and extended the line signal distance up to 40KM over single mode. By using fiber optic
transmission technology TRP-C39S secures a stable and error free data transmission over the
industrial environments. The high bandwidth fiber connections solve problems with electrical noise
and different ground potentials over long transmission. TRP-C39S support auto configuration in
data format, baud rate and RS-485 data direction flow control, it also provides with 3000V DC
isolation and internal surge protection. The industry DIN rail and panel mounting design enable user
a fast and professional installation.
1-1.Features
Wide input range DC power supply.
SC single mode fiber port.
Auto direction flow control on RS-485.
Auto RS-232/422/485 signals switching.
Auto data format detecting.
Auto baud rate switching from 300bps to 115.2Kbps.
Support 3000V DC isolation protection.
Support surge protection on RS-422/485 data lines.
Power/TX/RX mode LED indicator.
Fiber transmission distance up to 40KM.
DIN rail or panel mount support.
1-2.Specifications
Power Input Voltage: DC +10V to +30V.
Interface: RS-232/422/485 auto switching.
RS-232: 3 full-duplex (TXD, RXD, GND).
RS-422: Differential 4 full-duplex wires.
RS-485: Differential 2 half-duplex wires.
Cable: Fiber cable (9/125um).
Wavelength: 1310(FPLD) nM.
Distance: Fiber up to 40KM and RS422/485 up to 4000ft. (1200M).
RS-422/485 line protection: Against surge, short circuit, voltage peak.
Connection type: Screw terminal for maximum AWG #12~30 wires.
Power supply: Screw terminal, or external DC adapter.
Power consumption: 1.6W.
Isolation Voltage: 3000V DC.
Operating environment: 0 to 60C.
Storage temperature: -20 to 70C.
Humidity: 10-90% Non-condensing.
Dimension: 151 mm X 75mm X 2 6mm.
cele mai sensibile
Weight: 388g.
