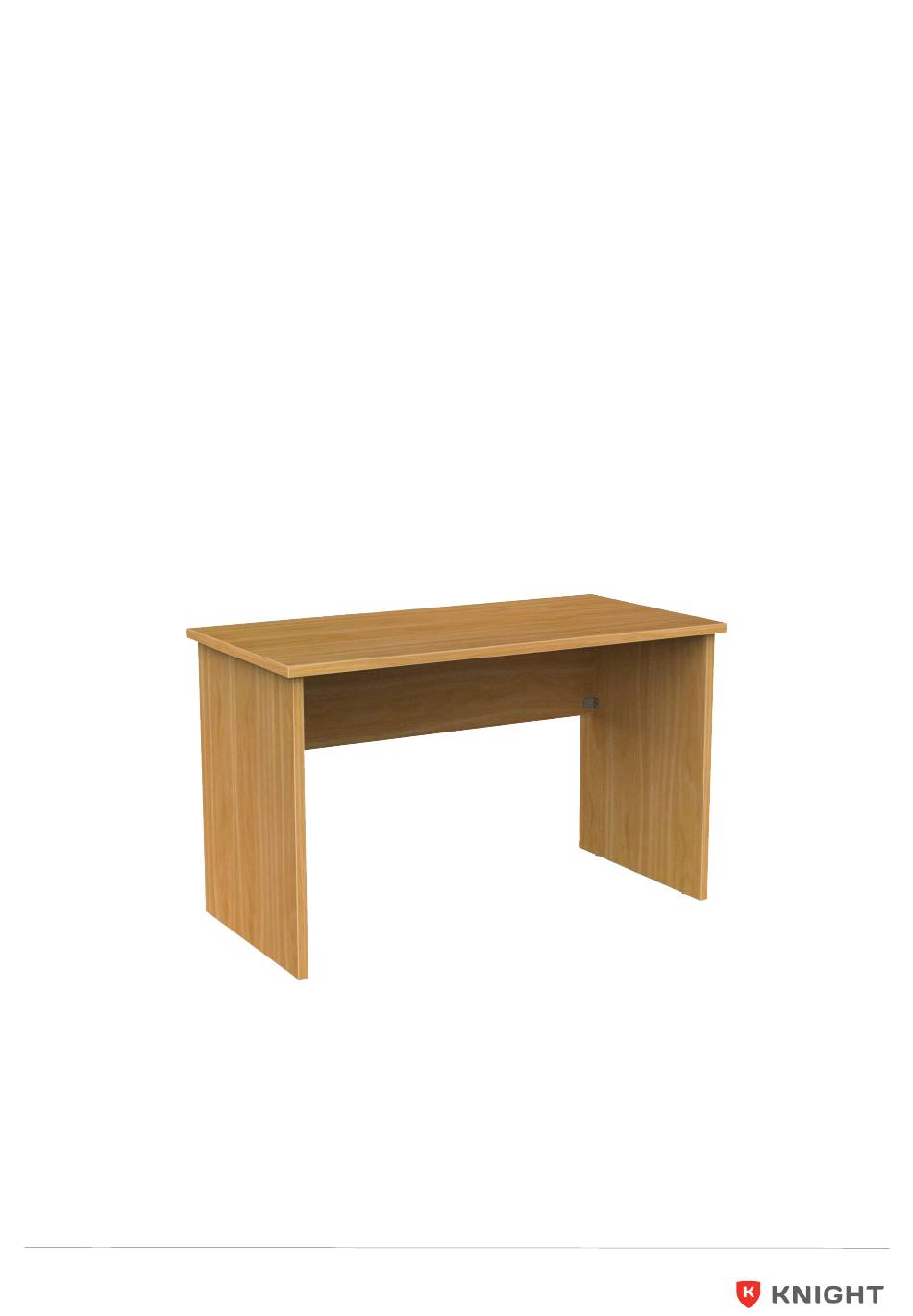

- Page 1 Ergoplan Desk 1200 Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...
- Page 2 Ergoplan Desk 1200 Assembly Instructions Thank you for purchasing Knight product, please carefully read the assembly instructions prior to installment to gain a complete understanding of the product. It provides you with important information about the safety, use, installation and maintenance.
- Page 3 Ergoplan Desk 1200 Assembly Instructions Parts Incorrect Correct Item Description Quantity The turning direction of attaching Top Panel Left Side Panel Right Side Panel Modesty Panel knightgroup.co.nz...
- Page 4 Ergoplan Desk 1200 Assembly Instructions Parts Item Description Quantity 6x35 Cam Bolt 8x30 Dowel Pin Cam Sticker Bracket 3.5x15 Screw c1 6x35 Cam Bolt d1 8x30 Dowel Pin c2 Cam Sticker b1 Bracket s1 3.5x15 Screw (pre-installed) knightgroup.co.nz...
- Page 5 Ergoplan Desk 1200 Page 1 Assembly Instructions Step 1 Preparation for top panel A, left side panel X, right side panel Z and modesty panel D. lnsert cam bolts (c1) into panels A, X and Z. Insert dowel pins (d1) into panels X, Z and D.
- Page 6 Ergoplan Desk 1200 Page 2 Page 2 Assembly Instructions Assembly Instructions Step 2 Left side panel X, right side panel Z, and modesty panel D assembly. Insert cam bolts (c1) on panels X and Z into cams on panel D and tighten in a clockwise direction.
- Page 7 Ergoplan Desk 1200 Page 3 Page 3 Assembly Instructions Assembly Instructions Step 3 Top panel A assembly. Insert cam bolts (c1) on panel A into cams on panels Z, D and X and tighten in a clockwise direction. Cover top of cams with cam stickers (c2).
- Page 8 Ergoplan Desk 1200 Page 4 Assembly Instructions Complete knightgroup.co.nz...
