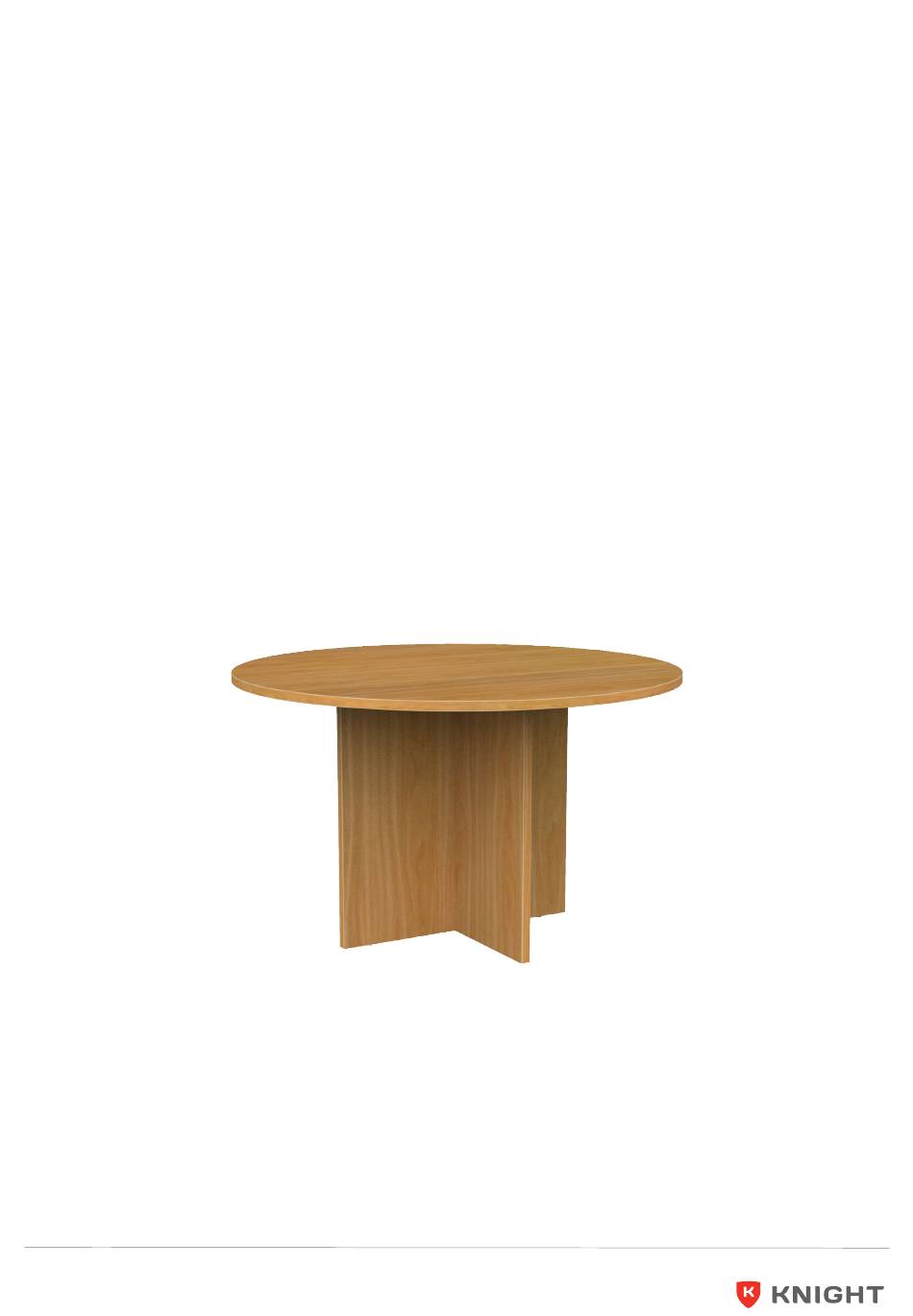

- Page 1 Ergoplan Meeting Table Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...
- Page 2 Ergoplan Meeting Table Assembly Instructions Thank you for purchasing Knight product, please carefully read the assembly instructions prior to installment to gain a complete understanding of the product. It provides you with important information about the safety, use, installation and maintenance.
- Page 3 Ergoplan Meeting Table Assembly Instructions Parts Item Description Quantity Top Panel Centre Panel 1 Centre Panel 2 Incorrect Correct The turning direction of attaching Item Description Quantity 6x35 Cam Bolt 8x30 Dowel Pin Cam Sticker c1 6x35 Cam Bolt d1 8x30 Dowel Pin...
- Page 4 Ergoplan Meeting Table Page 1 Page 1 Assembly Instructions Assembly Instructions Step 1 Preparation for top panel A. Place top panel on level suface with underneath of top facing upwards. Insert cam bolts (c1) and dowel pins (d1) into panel A.
- Page 5 Ergoplan Meeting Table Page 2 Page 2 Assembly Instructions Assembly Instructions Step 2 Centre panel Z and top panel A assembly. Insert cam bolts (c1) on panel A into cams on panel Z and tighten in a clockwise direction. knightgroup.co.nz...
- Page 6 Ergoplan Meeting Table Page 3 Page 3 Assembly Instructions Assembly Instructions Step 3 Centre panel X and top panel A assembly. Slide gap in panel X over gap in panel Z. Insert cam bolts (c1) on panel A into cams on panel X and tighten in a clockwise direction.
- Page 7 Ergoplan Meeting Table Page 4 Page 4 Assembly Instructions Assembly Instructions Complete knightgroup.co.nz...
