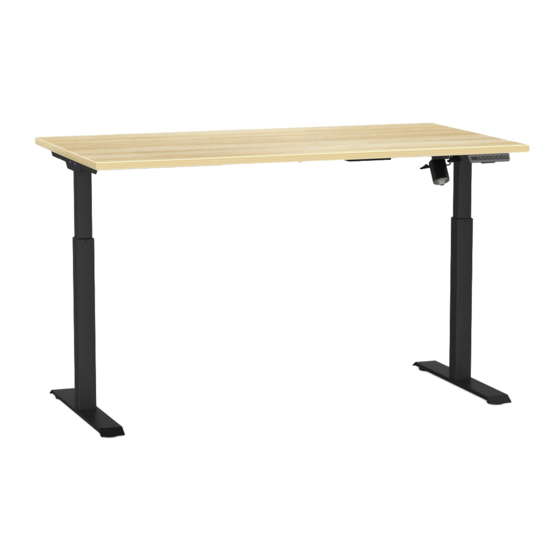

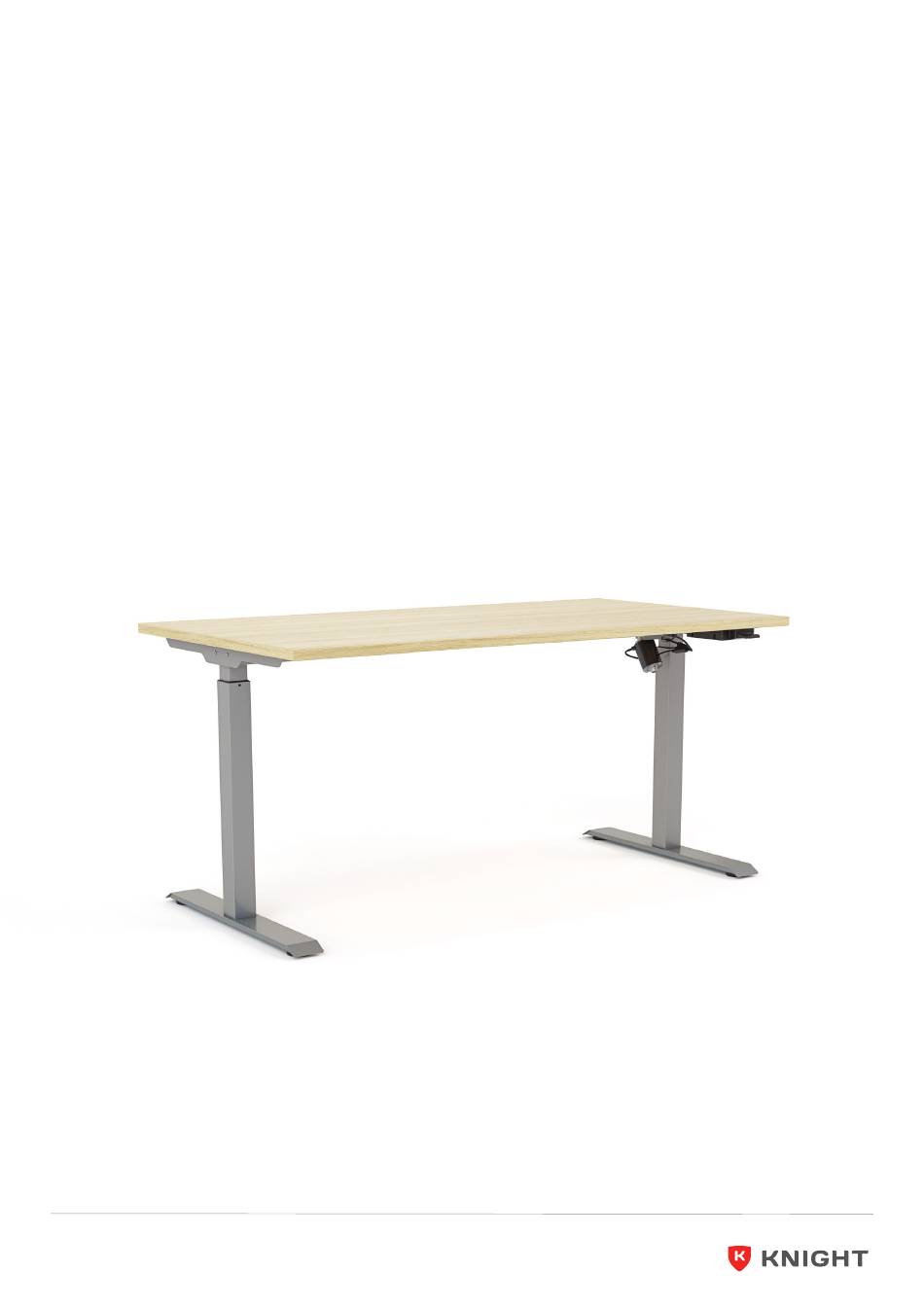

- Page 1 Agile Boost Desk Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...
- Page 2 Agile Boost Desk Page 1 Assembly Instructions • To prevent possible scratches or damage, assemble the product on a soft surface such as a blanket, carpet or packaging. Recommended 2-person Step Parts: 1x LEFT LEG 1x RIGHT LEG 1x LONG TUBE...
- Page 3 Agile Boost Desk Page 2 Page 2 Assembly Instructions Assembly Instructions Step 1 Attach side frames to left and right leg using M6x10 screws and M4 hex key. 4x M6x12 Step 2 Loosen Loosen screws in long tube and adjust length, fix left and right end of long tube to legs using M6x10 and M4 hex key.
- Page 4 Agile Boost Desk Page 3 Page 3 Assembly Instructions Assembly Instructions Step 3 Fix bases to left and right legs using M8x20 screws and M5 hex key. 8x M8x20 Step 4 Loosen grub screws on hex bar and insert from A, adjust the length and connect other end to B.
- Page 5 Agile Boost Desk Page 4 Page 4 Assembly Instructions Assembly Instructions Step 5 Adjust long tube and hex bar length to suit worktop, then fix worktop to frame using ST5.0x23 wood screws. 10x ST5.0x23 10x M6x12 Step 6 Tighten long tube screws and hex bar grub screws.
- Page 6 Agile Boost Desk Page 5 Page 5 Assembly Instructions Assembly Instructions Step 7 Attach handset with ST4.2x16 on right hand side and connect cables. 3x ST4.0x16 Completed knightgroup.co.nz...
- Page 7 Agile Boost Desk Page 6 Page 6 Assembly Instructions Assembly Instructions Important Please carefully read the assembly manual and direction for use • The table has been designed as a devise to elevate the users prior to installment, use and maintenance of the table frame to work surface and associated office peripherals.
-
Page 8: Operation
Agile Boost Desk Page 7 Page 7 Assembly Instructions Assembly Instructions Handset Manual - Upgrade Up & down Memory Display button button screen OPERATION E = Maximum height setting Up & down keys to adjust height • Display screen - Shows current height of desk Press M3 to make selection.
