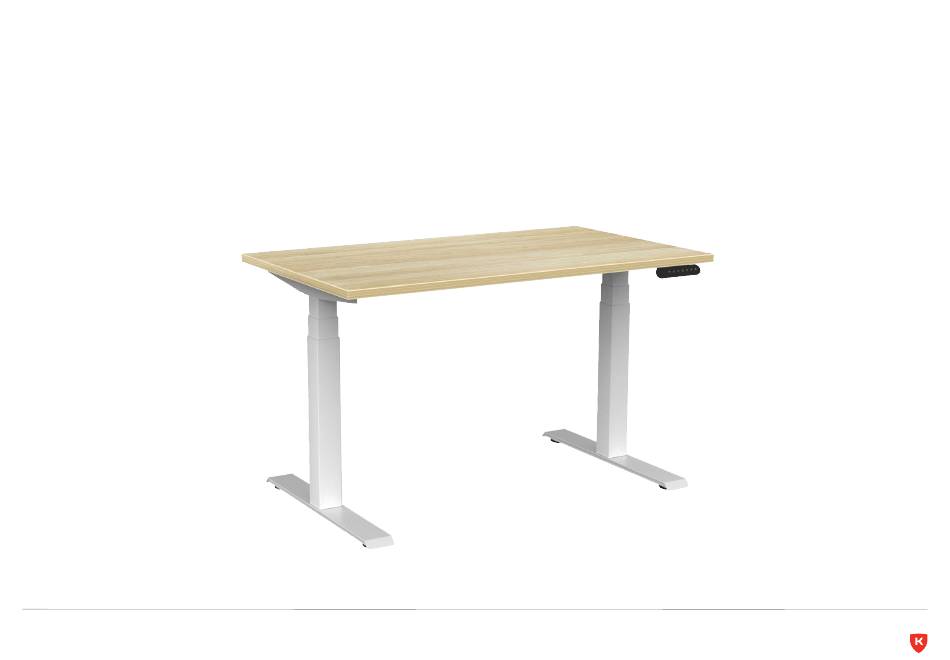

Velocity - Electric
Assembly Instructions - Single Sided (SSD)
Tools Required:
Power Drill
knightgroup.co.nz

Advertisement

loading
Need help?

Need help?

Do you have a question about the Velocity - Electric and is the answer not in the manual?

Questions and answers

Related Manuals for Knight Velocity - Electric

Summary of Contents for Knight Velocity - Electric

  • Page 1 Velocity - Electric Assembly Instructions - Single Sided (SSD) Tools Required: Power Drill knightgroup.co.nz...
  • Page 2 Velocity - Electric SSD Assembly Instructions Assembly Instructions Contents Electric Single Sided Desk Page 1 Optional Cable Tray Page 15 Optional Studio50 or Active25 Screen Page 24 Electric Digital Handset Functions Page 32 knightgroup.co.nz...
  • Page 3 Velocity - Electric SSD Assembly Instructions Assembly Instructions IMPORTANT! SET UP AND INSTALLATION Please carefully read the assembly manual and direction for use prior to Assemble the table frame according to the following pages in this assembly installment, use and maintenance of the table frame to gain a complete instructions guide.
  • Page 4 Velocity - Electric SSD Page 1 Assembly Instructions Assembly Instructions Parts 2 x Frame Rails 2 x Leg with motor 1 x L&R Support Bar (Pair) 2 x Foot with Leveling Feet 1 x Power Cord 1 x Handset 1 x Power Box with Brackets...
  • Page 5 Velocity - Electric SSD Page 2 Assembly Instructions Assembly Instructions Step 1 Don’t plug in the desk until handset, power box & controller are mounted on to the desk top. It might cause errors. Loosen and pull apart knightgroup.co.nz...
  • Page 6 Velocity - Electric SSD Page 3 Assembly Instructions Assembly Instructions Step 2 4 x M6x10 Socket Head Bolt knightgroup.co.nz...
  • Page 7 Velocity - Electric SSD Page 4 Assembly Instructions Assembly Instructions Step 3 knightgroup.co.nz...
  • Page 8 Velocity - Electric SSD Page 5 Assembly Instructions Assembly Instructions Step 4 4 x M6x12 knightgroup.co.nz...
  • Page 9 Velocity - Electric SSD Page 6 Assembly Instructions Assembly Instructions Step 5 8 x M8x20 knightgroup.co.nz...
  • Page 10 Velocity - Electric SSD Page 7 Assembly Instructions Assembly Instructions Step 6 Worktop Length 1200mm 1125mm 1500mm 1425mm 1800mm 1725mm knightgroup.co.nz...
  • Page 11 Velocity - Electric SSD Page 8 Assembly Instructions Assembly Instructions Step 7 Tighten knightgroup.co.nz...
  • Page 12 Velocity - Electric SSD Page 9 Assembly Instructions Assembly Instructions Step 8 12 x ST5.0x23 knightgroup.co.nz...
  • Page 13 Velocity - Electric SSD Page 10 Assembly Instructions Assembly Instructions Step 9 Power Box Brackets Clip brackets in place as shown, no screws needed. knightgroup.co.nz...
  • Page 14 Velocity - Electric SSD Page 11 Assembly Instructions Assembly Instructions Step 10 Power Box Slide the power box between the brackets. Box will hold the brackets in place. knightgroup.co.nz...
  • Page 15 Velocity - Electric SSD Page 12 Assembly Instructions Assembly Instructions Step 11 Plug in power cords as shown. knightgroup.co.nz...
  • Page 16 Velocity - Electric SSD Page 13 Assembly Instructions Assembly Instructions Step 12 2 x ST4.2x16 Left-hand Location Right-hand Location knightgroup.co.nz...
  • Page 17 Velocity - Electric SSD Page 14 Assembly Instructions Assembly Instructions Completed knightgroup.co.nz...
  • Page 18 Optional SSD Cable Tray Page 15 Assembly Instructions Assembly Instructions Parts 4 x M6x10 4 x M5x6 2 x SSD Tray Mounts 1 x SSD Tray Button Head Screw VSSDBRAC50 VSSDBRAC25 VSSDBRACCT SSD Screen Brackets L/R Pair SSD Screen Brackets L/R Pair SSD Cable Tray Brackets L/R Pair Required if installing Required if installing...
  • Page 19 Optional SSD Cable Tray Page 16 Assembly Instructions Assembly Instructions Step 1 knightgroup.co.nz...
  • Page 20 Optional SSD Cable Tray Page 17 Assembly Instructions Assembly Instructions Step 2 90.0° knightgroup.co.nz...
  • Page 21 Optional SSD Cable Tray Page 18 Assembly Instructions Assembly Instructions Step 3 knightgroup.co.nz...
  • Page 22 Optional SSD Cable Tray Page 19 Assembly Instructions Assembly Instructions Step 4 4 x M6x10 knightgroup.co.nz...
  • Page 23 Optional SSD Cable Tray Page 20 Assembly Instructions Assembly Instructions Step 5 4 x M5x6 knightgroup.co.nz...
  • Page 24 Optional SSD Cable Tray Page 21 Assembly Instructions Assembly Instructions Step 1 - Power & Data Plate 1 x Power Plate 1 x Data Plate 5 x Screws knightgroup.co.nz...
  • Page 25 Optional SSD Cable Tray Page 22 Assembly Instructions Assembly Instructions Step 2 - Power & Data Plate knightgroup.co.nz...
  • Page 26 Optional SSD Cable Tray Page 23 Assembly Instructions Assembly Instructions Completed knightgroup.co.nz...
  • Page 27 Optional Studio50 or Active25 Screen Page 24 Assembly Instructions Assembly Instructions Parts - Studio50 SSD Screen Brackets 2 x M8x25 4 x ST5.0x23 2 x Stabilizing Bracket L/R Pair Parts - Active25 SSD Screen Brackets Tapping Screw L/R Pair 6 x 6.3x25 knightgroup.co.nz...
  • Page 28 Optional Studio50 or Active25 Screen Page 25 Assembly Instructions Assembly Instructions Step 1 knightgroup.co.nz...
  • Page 29 Optional Studio50 or Active25 Screen Page 26 Assembly Instructions Assembly Instructions Step 2 Studio50 Bracket shown, if installing Active25 Screen use bracket VSSDBRAC25. 90.0° knightgroup.co.nz...
  • Page 30 Optional Studio50 or Active25 Screen Page 27 Assembly Instructions Assembly Instructions Step 3 knightgroup.co.nz...
  • Page 31 Optional Studio50 or Active25 Screen Page 28 Assembly Instructions Assembly Instructions Step 4 2 x M8x25 6 x 6.3x25 Studio50 Active25 Adjust leg bracket to allow 10mm gap between worktop and screen. knightgroup.co.nz...
  • Page 32 Optional Studio50 or Active25 Screen Page 29 Assembly Instructions Assembly Instructions Step 5 Stabilizer Brackets are not required for Active25 Screens. ° 4 x ST5.0x23 2 x Stabilizing Bracket knightgroup.co.nz...
  • Page 33 Optional Studio50 or Active25 Screen Page 30 Assembly Instructions Assembly Instructions Completed Studio50 Active25 knightgroup.co.nz...
  • Page 34 Velocity - Electric Digital Handset Functions Page 31 Operational Instructions SAFETY FUNCTION When the desktop is moving up or down and encounters reverse resistance, the desk will rebound. ERROR CODES Error and Fault Solution Power off and restart. If fault still exists there is a E01, E06, E07 = Power Fault motor problem.
  • Page 35 Velocity - Electric Digital Handset Functions Page 32 Operational Instructions S-2 = Anti Collision Sensitivity S-8 = Desktop Tilt Angle Setting Select “up” & “down” buttons to navigate to selection Select “up” & “down” buttons to navigate to selection 0 - Shut down...
  • Page 36 0800 143 143 info@knightgroup.co.nz knightgroup.co.nz...
