Summary of Contents for Little Folks Furniture HSP003

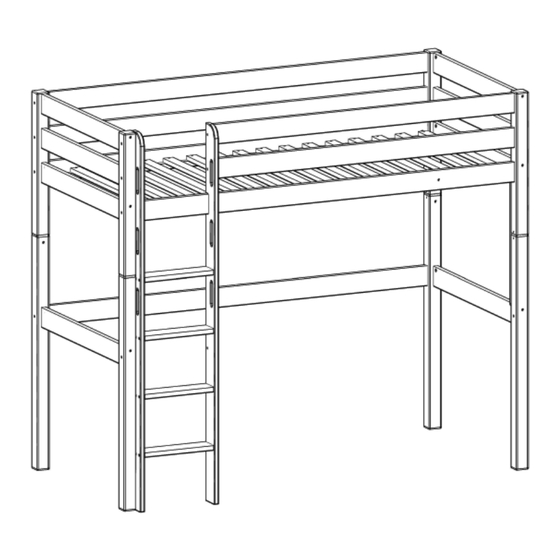

- Page 1 Classic Hi Sleeper Bed Code: HSP003...
-
Page 2: Product Safety
Thank you for buying a piece of furniture Treated properly it should be a faithful servant for years - and we hope you get the same amount of pleasure from it. Before you do please take a few minutes to read these instructions we suggest you carefully unpack everything, lay it out on a clean, flat floor and identify everything on the parts list in these instructions. - Page 3 Parts Fittings M6x100 M6x75 M6x60 M6x60 M6x35 O7x50 O10x40 O8x32 M6x15 O10x12 O3.0x30 Key 4 mm...
- Page 4 Making the upper bed frame. (Two People) 44 x 35mm wooden dowels / 16 x 100mm bolts / 16 x barrel nuts. Make end frames Fit the two middle end rails and four top / bottom end rails with the small wooden dowels (28) blind holes only (not the holes that have a side hole next to it) Carefully position the four small legs using the numbers on the base of each leg to orientate.
- Page 5 Fit the mattres base (Two People) 34 wood screws Gently roll out the mattress base (webbing side down) and lift it onto the mattress rails supports (wooden pieces fitted to the inside of the mattress rails). Spread the bed slats out to each end of the bed. Now screw each bed slat down using a screw in each end, making sure the the end slats are tight to the bed legs at each end, and that the bed remains parallel.
- Page 6 Making the lower bed frame. (Two People) 8 x Large wooden dowels /12 small wooden dowels, 6 x 100mm bolts, 6 x barrel nuts Fit the two cross rails and rear long rail with the small dowels (blind holes only). Carefully identify the large legs by using the letters on the base of the part.
- Page 7 Making the Hi bed frame. (Two People) 8 x wood screws Carefully lift the upper bed onto the lower frame, aligning the projecting wooden dowels into the holes on the base of small bed legs. Once firmly pressed down secure the joint by screwing them together, 2 screws per leg.
- Page 8 Make the ladder 8 x screw bolts, 16 x small wooden dowels Fit the ladder treads (4) with the wooden dowels (4 per tread) using the outer holes. lay one ladder string down with the inside facing upwards (side with more holes = inner face) and push the four treads into the matching holes.
- Page 9 Fit the ladder (two people) 3 x 75mm bolts, 3 x sleeve nuts, 1 x screw bolt 2 x 60mm bolts + 2 barrel nuts, 2 x 100m bolts + 2 barrel nuts, 8 x small wooden dowels. At this point in the assembly you will need to decide which side the ladder is fitted, left or right side of the bed.
- Page 10 Fit the leg stabilzer 2 x 35mm bolts This “leg stabilizer” is designed to be fitted to the inside of bed between the upper and lower bed frames and on the opposite side to that of the ladder (see image) Push the part into position and secure using the two bolts.
- Page 11 Connect the bed to a solid structure / wall The bed is designed to be connected to a solid structure for extra stability. Lift the bed into it`s final position. Using the two holes pre-drilled in the rear bed legs mark out the drilling positions on the wall.
- Page 12 Classic Long Desk Code: DSK011...
- Page 13 PRODUCT SAFETY Only to be used with the Classic Hi Sleeper bed HSP003 Periodically check all fittings to ensure that none have come loose. Keep away from direct sources of heat, such as electric, gas or wood fires.
- Page 14 Parts 1 Top Left 1 Top Right 1 x brace Fittings 4 x Bolts 24 x Wood Screws 6 x L brackets Tools Req Screwdriver 1 x Bradawl optional...
- Page 15 Make the desk top. 3 x wooden dowels Insert the dowels into the ends of one desk top as shown. Push the two desk parts together. Make the desk top. 4 x bolts Insert the brace tongue into the groove provided in the front timber lip, making sure the holes align with the one in the top.
- Page 16 Fit the Long desk 6 x L brackets and 12 wood screws Invert the long desk on a flat surface (protected) and locate the L shaped brackets over the pre-drilled pilot holes, gently connect them using the wood screws provided. Locate the Long desk 12 wood screws Place the long top onto the Hi -Sleeper bed with the top surface upwards.
- Page 17 Fix the desk 12 wood screws Using the bradawl or power screw driver gently screw the remaining screws through the L brackets and into the two side rails and rear rail. Some light pressure might be required to get the screws started. Final Check Please take a moment to look around the desk and bed to make sure all the fittings are in position and tightened.
- Page 18 Chest of Drawers Code: COD005...
- Page 19 Thank you for buying a piece of furniture Treated properly it should be a faithful servant for years - and we hope you get the same amount of pleasure from it. Before you do please take a few minutes to read these instructions we suggest you carefully unpack everything, lay it out on a clean, flat floor and identify everything on the parts list in these instructions.
-
Page 20: Parts List
Parts list Base 1 x folding back Left Side Right Side 3 x Drawer Backs 3 x Drawer Sides (left) 3 x Drawer Fronts 3 x Drawer Base 3 x Drawer Sides (Right) Fittings 8 x Large Cams 6 x Small Cams 6 x Drawer runners 14 x Cam Pins 8 x Dowels... - Page 21 Assembly Fit top and base. 8 x Cam Pins, 1 wall connector and 1 x bracket screw + Screwdriver Fit the Cam Pins into the smaller holes as shown. Now fit the wall connector to the inside of the top, final positioning will be explained later. base Fixing the end dowels into the sides panels 8 x Dowels...
- Page 22 Fit the drawer runners 12 x Fat screws and 6 x metal drawer runners Align the drawer runners so that the top slider (wider piece)with the bigger holes is orientated towards the front edge of the carcass side (see images and video). Now screw the smaller base plate (narrow piece) of the drawer runner to the carcass side using the holes provided, you will need to slide the top slider back and forward to access the base plate holes (second hole in from each end).
- Page 23 Fix the top (two people) Now lower the top down onto the carcass. Line up the cam pins and wooden dowels so that the all parts are connected. Rotate the cams to tighten the parts together. base Fix the back panel 18 x pins Lay the carcass to its front ensuring that it is protected.
- Page 24 Castor fixing 4 x Castors parts and 16 pan head screws Lay the carcass on its top (ensure that you have a protective layer between the floor and top). Align each castor base to match the set of four holes in each corner of the base panel, screw the castor base down using four screws (per plate).
- Page 25 Re-position the chest and physically connect the chest to the wall. Little Folks Furniture do not supply wall fixings due to the wide ranging differences of wall construction.
- Page 26 Make the drawers (X3) 6 x Small cams and 6 x cam pins Fix 2 cam pins into each drawer front. Now fit the small cams, inserting 1 small cam into each drawer side ensuring that the indicator is facing towards the intersecting cam pin hole.(see image for orientation or video) Gently slide the drawer sides over the cam pins and align the wooden dowels, once together rotate the cams to tighten.
- Page 27 Secure the drawer base 12 x stabilizers Align the stabilizers as shown, slipping the “tongue” in between the base and groove. Supporting the drawer structure, check that the drawer box is “square” by measuring corner to corner (both sizes need to be the same) now screw the stabilizers in place.
- Page 28 Final check If used away from an furniture structure (e.g bed or desk), please ensure that the wall strap is connected to both the chest and a suitable wall structure. If used under an upper furniture structure please check that the chest is neatly aligned and does not create ledges of foot holds for the upper bed.
