- Page 1 U S E R M A N U A L I N A L T O . H O U S E 30cm Induction Cooktop MODEL CODE/S I C I 3 0 T.1 F O R A L L A U S T R A L I A N H O M E S V 1 .
- Page 2 It is important that you read through the following use and care manual thoroughly to familiarise yourself with the installation and operation requirements of your appliance to ensure optimum performance. Again, thank you for choosing an InAlto appliance and we look forward to being of service to you.
-
Page 3: Table Of Contents
24 Warranty Information Customer Care InAlto recommends the use of original spare parts. When contacting our customer service team on 1300 11 4357, please ensure that you have the following information at hand (which can be found on your appliances’ rating plate). -
Page 4: Safety Instructions
Safety Instructions IMPORTANT INFORMATION INSTALLATION The following statements you will see in this booklet Electrical Shock Hazard have these meanings: • Disconnect the appliance from the mains electricity supply before carrying out any work or WARNING! maintenance on it. • Connection to a good earth wiring system is Indicating information concerning your personal essential and mandatory. - Page 5 • Metallic objects such as knives, forks, spoons and Hot Surface Hazard lids should not be placed on the cooktop surface • During use, accessible parts of this appliance will since they can get hot become hot enough to cause burns. •...
- Page 6 Safety Instructions (Continued) CAUTION: Important safety instructions (cont.) Read the following carefully to avoid an • Do not use pans with jagged edges or drag pans electric shock or fire. across the induction glass surface as this can scratch the glass. It is important to use your cooktop safely.
- Page 7 THIS PAGE IS INTENTIONALLY LEF T BL ANK...
-
Page 8: Your Inalto Cooktop

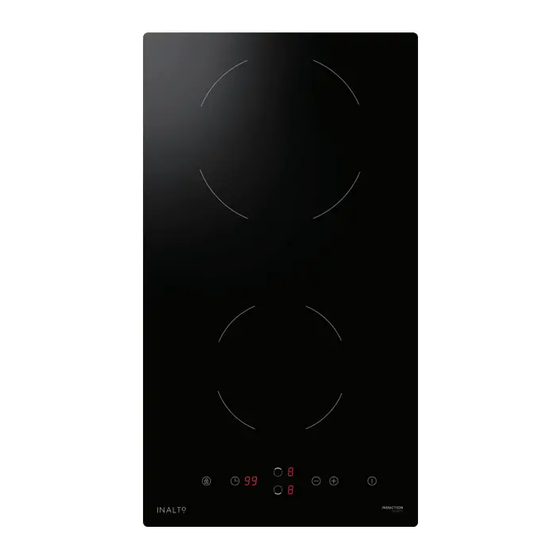

Your InAlto Cooktop PRODUCT CONTROL PANEL LEGEND ON/OFF control 2. Power / Timer regulating controls 3. Heating zone selection controls 4. Timer control 5. Lock control LEGEND Max. 2000 W zone 2. Max. 1500 W zone 3. Glass plate 4. ON/OFF control 5. -
Page 9: Before First Use
Before First Use WARNING! BEFORE FIRST USE Never install a cooktop that has been damaged. Please contact our Customer Care team for • Before using this appliance read this manual, taking further assistance. special note of the “Safety Instructions” section. CLEANING IMPORTANT! You should clean the induction... -
Page 10: Using Your Cooktop
Using Your Cooktop INDUCTION COOKING Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. CHOOSING THE RIGHT COOKWARE •... -
Page 11: Operation Instructions
ware Operation Instructions d base. TOUCH CONTROLS If the display flashes alternately with the heat setting • All operations are performed by means of the touch s flat against the glass, and is the same size as the controls that can be found on the control panel at •... - Page 12 Operation Instructions (Continued) LOCKING THE CONTROLS USING THE TIMER • You can lock the controls to prevent unintended You can use the timer in two different ways: use (for example children accidentally turning the • You can use it as a minute minder. In this case, the cooking zones on).
- Page 13 THIS PAGE IS INTENTIONALLY LEF T BL ANK...
-
Page 14: Installation Instructions
Installation Instructions WARNING This user manual must be read! The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.) IMPORTANT! Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be observed. - Page 15 INSTALLATION Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant and insulated work surface material (Wood and similar fibrous or hygroscopic material shall not be used as work surface material unless impregnated) to avoid the electrical shock and larger deformation caused by the heat radiation from the hotplate.
- Page 16 SEAL L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) F(mm) Installation Instructions (Continued) 875+4 495+4 50 mini 3 mini Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below CLEARANCES Under any circumstances, make sure the induction cooktop is well ventilated and the air inlet and outlet are not Note: The safety distance between the hotplate and the cupboard above the hotplate should be...
- Page 17 BEFORE INSTALLING THE COOKTOP, ENSURE • The work surface is square and level, and no structural members interfere with space requirements. • The work surface is made of a heat-resistant and insulated material. • If the cooktop is installed above an oven, the oven has a built-in cooling fan. •...
- Page 18 Installation Instructions (Continued) CAUTIONS The induction cooktop must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The induction cooktop shall not be mounted to cooling equipment, dishwashers and rotary dryers. 3.
-
Page 19: Cleaning & Maintenance
Cleaning & Maintenance By ensuring proper cleaning and maintenance of your InAlto cooktop, you can ensure that it will have a long and fault free operation. GENERAL CLEANING INSTRUCTIONS WARNING Do not start cleaning the cooktop until it has completely cooled. -
Page 20: Troubleshooting
Troubleshooting Some minor faults can be fixed by referring to the instructions given below. There is also a self-help section online at www.support.residentiagroup.com.au. Problem Possible Cause Solution The cooking zones are not • The mains electrical connection • Have your installer check their functioning or will not switch on may be incorrect or lose. - Page 21 Fan noise coming from the induction A cooling fan built into your This is normal and needs no action. cooktop. induction cooktop has come on to Do not switch the power to the in- prevent the electronics from duction cooktop off at the wall while overheating.
-
Page 22: Technical Specifications
Technical Specifications MODEL ICI30T.1 RATED VOLTAGE 220-240V~ 50 - 60Hz INSTALLED ELECTRIC POWER 3500W PRODUCT SIZE (W x D x H mm) 288 × 520 × 56mm BUILT IN DIMENSIONS (A x B mm) 268 × 500mm... -
Page 23: Purchase Details
Purchase Details For future reference, please record the following information in the form below. The product details can be found on the rating plate, and purchase details which can be found on your sales invoice. STORE DETAIL S STORE NAME ADDRESS TELEPHONE PURCHASE DATE... -
Page 24: Warranty Information
Warranty Information AUSTRALIAN WARRANTY TERMS & CONDITIONS (h) ‘you’ means the purchaser of the Appliance not COOKING APPLIANCES having purchased the Appliance for re-sale, and ‘your’ has a corresponding meaning. This document sets out the terms and conditions This warranty only applies to Appliances of the product warranties for Residentia Group purchased and used in Australia and is in Appliances. - Page 25 (a) the Appliance is damaged by: replaced if the Appliance fails to be of acceptable accident quality and the failure does not amount to a major (ii) misuse or abuse, including failure to properly failure. The benefits to you given by this warranty are in addition to your other rights and remedies maintain or service (iii)
- Page 26 THIS PAGE IS INTENTIONALLY LEF T BL ANK...
- Page 27 Simply visit the below website, or ask your retailer 24 months on the microwave magnetron; Waste for help: www.inalto.house/nz/registration disposers have a 12 month warranty. The provision of service under this warranty is...
- Page 28 D E S I G N E D I N M E L B O U R N E F O R A L L A U S T R A L I A N H O M E S —...
