Summary of Contents for Inalto ICI604T2
- Page 1 U S E R M A N U A L I N A L T O . H O U S E 60cm Induction Cooktop MODEL CODE/S I C I 6 0 4 T 2 F O R A L L A U S T R A L I A N H O M E S V 1 .
- Page 2 It is important that you read through the following use and care manual thoroughly to familiarise yourself with the installation and operation requirements of your appliance to ensure optimum performance. Again, thank you for choosing an InAlto appliance and we look forward to being of service to you.
-
Page 3: Table Of Contents
27 Warranty Information Customer Care InAlto recommends the use of original spare parts. When contacting our customer service team on 1300 11 4357, please ensure that you have the following information at hand (which can be found on your appliances’ rating plate). -
Page 4: Safety Instructions
Safety Instructions IMPORTANT INFORMATION INSTALLATION Your safety is important to us. Please read Electrical Shock Hazard this information before using your cooktop. • Disconnect the appliance from the mains electricity supply before carrying out any work or WARNING maintenance on it. •... -
Page 5: Operation And Maintenance
Safety Instructions (Continued) Metallic objects such as knives, forks, spoons and Cut Hazard lids should not be placed on the cooktop surface since • The razor-sharp blade of a cooktop scraper is they can get hot. exposed when the safety cover is retracted. Use with •... -
Page 6: Information On Disposal For Users
Safety Instructions (Continued) • Do not repair or replace any part of the appliance • In the event of faults with the appliance or damage unless specifically recommended in the manual. All to the glass ceramic (cracks, scratches or splits), the other servicing should be done by a appliance must be switched off and disconnected qualified technician. -
Page 7: This Page Is Intentionally Lef T Bl Ank
THIS PAGE IS INTENTIONALLY LEF T BL ANK... -
Page 8: Your Inalto Cooktop

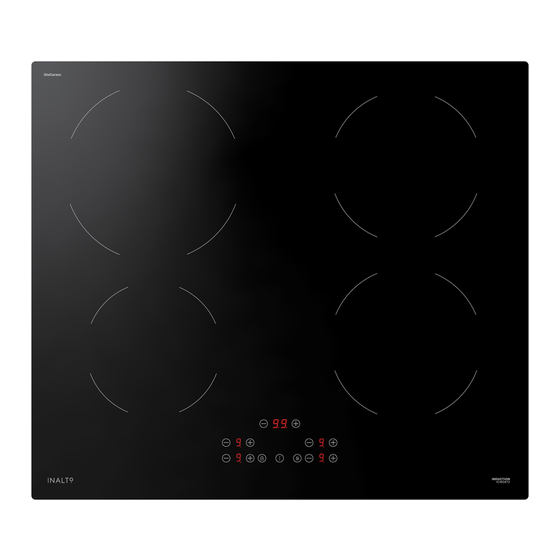

Your InAlto Cooktop PRODUCT CONTROL PANEL LEGEND 7. On/Off Power button 8. Childlock button 9. Boost control button 10. Power regulating buttons 11. Timer regulating buttons INDUCTION ICI604T2 LEGEND 160mm Zone, Max. 1500W 210mm Zone, Max. 2600W 180mm Zone, Max. 2000W 180mm Zone, Max. -
Page 9: Before First Use
Before First Use WARNING BEFORE FIRST USE Never install a cooktop that has been damaged. Please contact our Customer Care team for • Before using this appliance read this manual, taking further assistance. special note of the “Safety Instructions” section. CLEANING IMPORTANT! You should clean the induction... -
Page 11: Operation Instructions
Operation Instructions TOUCH CONTROLS No heating takes place unless there is a suitable pan • All operations are performed by means of the touch wwon the cooking zone. controls that can be found on the control panel at The display will automatically disappear after 1 the front of your cooktop. -
Page 12: Locking The Controls
Operation Instructions (Continued) LOCKING THE CONTROLS b) Setting the timer to turn one or more cooking zone off • You can lock the controls to prevent unintended • Touch the “-” or “+” of the corresponding cooking use (for example children accidentally turning the cooking zones on). -
Page 13: Cooking Guidelines
Operation Instructions (Continued) DEFAULT WORKING TIMES Auto shut down is a safety protection function for your induction cooktop. It shut down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table: Power Level Default working time (hour) During heating, the most maximum power level of each cooking zone depends on the amount you are cooking and... -
Page 14: Detection Of Small Articles
The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the induction cooktop to find the settings that best suit you. HEAT SETTINGS ICI604T2 • Delicate warming for small amounts of food • Melting chocolate, butter, and foods that burn quickly •... - Page 15 Operation Instructions (Continued) Use cookware with flat and smooth Rough-edged cookware. bases. See ‘Choosing the right cook- Unsuitable, abrasive scourer or ware’. The glass is being scratched. cleaning products being used. See ‘Care and cleaning’. This is normal for cookware and does Some pans make This may be caused by the construc- not indicate a fault...
-
Page 16: Installation Instructions
Installation Instructions WARNING This user manual must be read! The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.) IMPORTANT! Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be observed. - Page 17 Installation Instructions (Continued) RODUCT INSTALLATION INSTALLATION Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the tion of Installation Equipment thickness of the work surface is at least 30mm.
-
Page 18: Before Locating The Fixing Brackets
Installation Instructions (Continued) WARNING Ensuring Adequate Ventilation Make sure the induction cooker cooktop is well ventilated and that air inlet and outlet are not blocked. In order to avoid accidental touch with the overheating bottom of the cooktop, or getting unexpectable electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a minimum distance of 50mm from the bottom of the cooktop. - Page 19 Installation Instructions (Continued) WARNING Under any circumstances, the brackets cannot touch with the inner surfaces of the worktop after installation (see image below). CAUTIONS The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service.
-
Page 20: Electrical Connection
Installation Instructions (Continued) ELECTRICAL CONNECTION IMPORTANT The cooktop must NOT be connected to the mains supply by means of a 10A or 15A plug and socket. This cooktop must be connected to the mains power supply only by a suitably qualified person. Before connecting the cooktop to the mains power supply, check that: The domestic wiring system is suitable for the power drawn by the cooktop. - Page 21 Installation Instructions (Continued) This appliance is labeled in compliance with European directive 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
-
Page 22: Troubleshooting
Troubleshooting By ensuring proper cleaning and maintenance of your InAlto cooktop, you can ensure that it will have a long and fault free operation. GENERAL CLEANING INSTRUCTIONS WARNING Do not start cleaning the cooktop until it has completely cooled. WARNING Sharp objects and abrasive cleaning materials will damage the appliance. - Page 23 Troubleshooting (Continued) Some minor faults can be fixed by referring to the instructions given below. There is also a self-help section online at www.support.residentiagroup.com.au. Problem Possible Cause Solution The cooking zones are not • The mains electrical connection may • Have your installer check their con- functioning or will not switch on be incorrect or lose.
-
Page 24: Error Codes
Troubleshooting (Continued) Pans do not become hot or appear in the The induction cooktop cannot Use cookware suitable for induction display. detect the pan because it is not cooking. suitable for induction cooking. Centre the pan and make sure that its The induction cooktop cannot detect the base matches the size of the cooking pan because it is too small for the cook-... -
Page 25: Technical Specifications
Technical Specifications MODEL ICI604T2 COOKING ZONES 4 Zones RATED VOLTAGE 220-240V~ 380-415V 3N~ RATED FREQUENCY 50Hz or 60Hz INSTALLED ELECTRIC POWER 7400W PRODUCT SIZE (W × D × H mm) 590 × 520 × 62mm CUT-OUT IN DIMENSIONS (A × B mm) 560 ×... -
Page 26: Purchase Details
Purchase Details For future reference, please record the following information in the form below. The product details can be found on the rating plate, and purchase details which can be found on your sales invoice. STORE DETAIL S STORE NAME ADDRESS TELEPHONE PURCHASE DATE... -
Page 27: Warranty Information
Warranty Information AUSTRALIAN WARRANTY TERMS & CONDITIONS (h) ‘you’ means the purchaser of the Appliance not COOKING APPLIANCES having purchased the Appliance for re-sale, and ‘your’ has a corresponding meaning. This document sets out the terms and conditions This warranty only applies to Appliances of the product warranties for Residentia Group purchased and used in Australia and is in Appliances. - Page 28 Warranty Information (Continued) (a) the Appliance is damaged by: replaced if the Appliance fails to be of acceptable accident quality and the failure does not amount to a major (ii) misuse or abuse, including failure to properly failure. The benefits to you given by this warranty maintain or service are in addition to your other rights and remedies under a law in relation to the Appliances or services...
-
Page 29: Warranty
Simply visit the below website, or ask your retailer 24 months on the microwave magnetron; Waste for help: www.inalto.house/nz/registration disposers have a 12 month warranty. The provision of service under this warranty is... - Page 30 D E S I G N E D I N M E L B O U R N E F O R A L L A U S T R A L I A N H O M E S —...
