ett Swivel
P1
P2
P3
P4
P5
BOLTS DIA:5/16"x2-3/8"
H1
LOCK WASHER
H2
FLAT WASHER
H3
BOLTS DIA:1/4"x9/16"
H4
BOLTS DIA:1/4"x1"
H5
FLAT WASHER
H6
SCREW
H7
ALLEN WRENCH 1/4"
H8
SCREWDRIVER
H9
CHAIR SEAT
1PC
SWIVEL
1PC
CROSSING SEAT
1PC
LEGS
4PCS
FOOTREST
4PCS
8PCS
8PCS
8PCS
4PCS
4PCS
8PCS
8PCS
Not Provided
Page 1 of 7
1PC
:Emm
Counterstool
Advertisement
Related Manuals for Madison Park Emmett D600004676
Summary of Contents for Madison Park Emmett D600004676

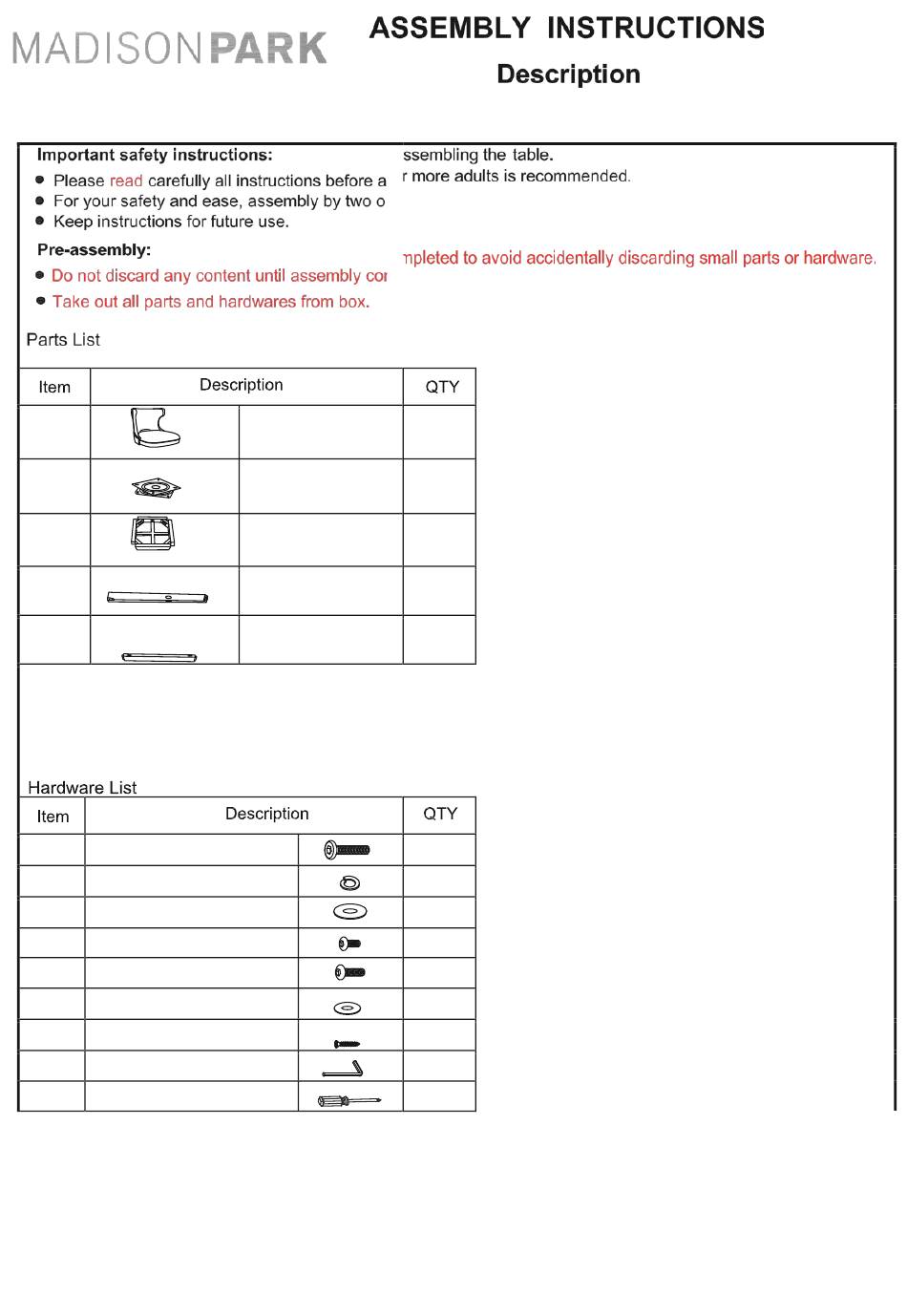

- Page 1 :Emm ett Swivel Counterstool CHAIR SEAT SWIVEL CROSSING SEAT LEGS 4PCS FOOTREST 4PCS BOLTS DIA:5/16"x2-3/8" 8PCS LOCK WASHER 8PCS FLAT WASHER 8PCS BOLTS DIA:1/4"x9/16" 4PCS BOLTS DIA:1/4"x1" 4PCS FLAT WASHER 8PCS SCREW 8PCS ALLEN WRENCH 1/4" SCREWDRIVER Not Provided Page 1 of 7...
- Page 2 Step 1. Assemble the chair on a flat, soft surface such as a carpet or cloth prevent scratching the finish. Insert legs(P4) to the crossing seat frame(P3), lock the legs to the seat frame using allen wrench (H8)to loosely tighten bolts (H1),lock washers(H2),flat washers(H3) as illustration below.
- Page 3 Step 2. Insert footrest(P5) to the legs(P4),lock the footrest to the legs with screws(H7) and tighten all screws securely with screw driver(H9) as illustration below. Page 3 of 7...
- Page 4 Step 3. Turn the whole leg frame, upright on the surface tighten all bolts securely with allen wrench. Page 4 of 7...
- Page 5 Step 4. Attach the swivel(P2) to the leg frame with bolts(H4) and flat washes(H6), tighten all bolts securely with allen wrench(H8) . Page 5 of 7...
- Page 6 Step 5. Attach the swivel(P2) to chair seat(P1) with bolts(H5),flat washes(H6) and tighten all bolts securely with allen wrench(H8) . Page 6 of 7...
- Page 7 Step 6. Turn chair upright on a level surface. Adjust levelers (as drawing) as necessary. Page 7 of 7...
