Icom ID-52A Reference Manual page 4

REMOTE CONTROL
Remote control (CI-V) information
D Connecting to a PC

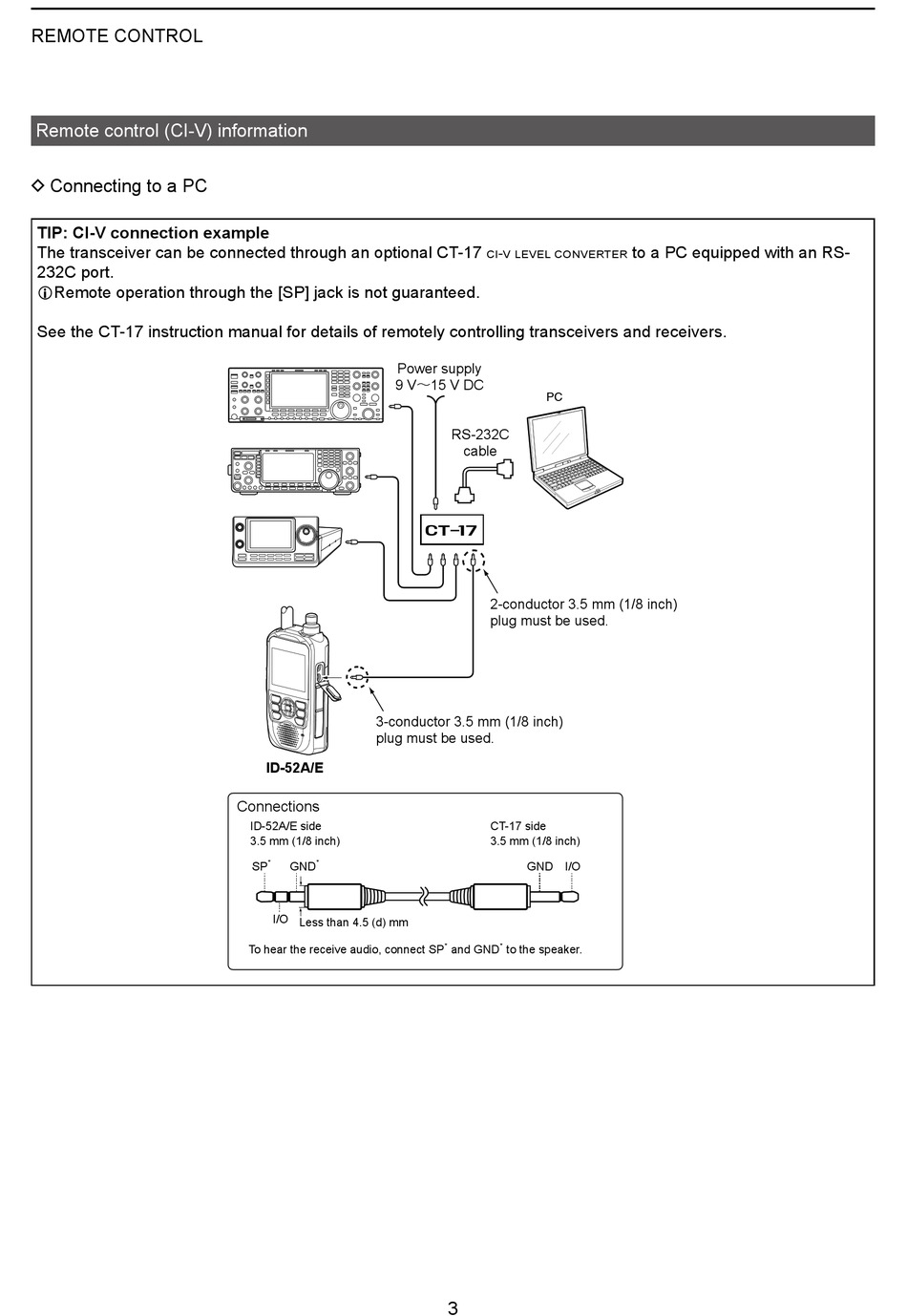

TIP: CI-V connection example
The transceiver can be connected through an optional CT-17
232C port�
LRemote operation through the [SP] jack is not guaranteed�
See the CT-17 instruction manual for details of remotely controlling transceivers and receivers�
Power supply
9 V～15 V DC
3-conductor 3�5 mm (1/8 inch)
plug must be used�
ID-52A/E
Connections
ID-52A/E side
3�5 mm (1/8 inch)
* *
SP GND
I/O
Less than 4�5 (d) mm
To hear the receive audio, connect SP
ci-v level converter
PC
RS-232C
cable
ct-17
2-conductor 3�5 mm (1/8 inch)
plug must be used�
CT-17 side
3�5 mm (1/8 inch)
GND I/O
* and GND * to the speaker�
3
to a PC equipped with an RS-
