Transport, Installation and Connection
The use of a ball flange (optional, Part No.: 6590-9020-01)
allows adjustments to be carried out easily in order to me-
chanically obtain the optimum observation point. If tem-
peratures of over 180 °C occur at the sensor head SKL
caused by the heat dissipation of the sighting tube despite
the inflow of cooling air, a heat insulator (optional, Part
No.: B 512.1) must be employed. At pressurised firing in-
stallations, an additional 3-port shut-off device (optional,
Part No.: B 520) should be installed for the sake of safety.
This prevents an escape of hot gases after the removal of
the compact flame controller and provides additional cool-
ing and purging of the installation.
The entire mechanical peripheral system can be supplied
by BFI Automation.

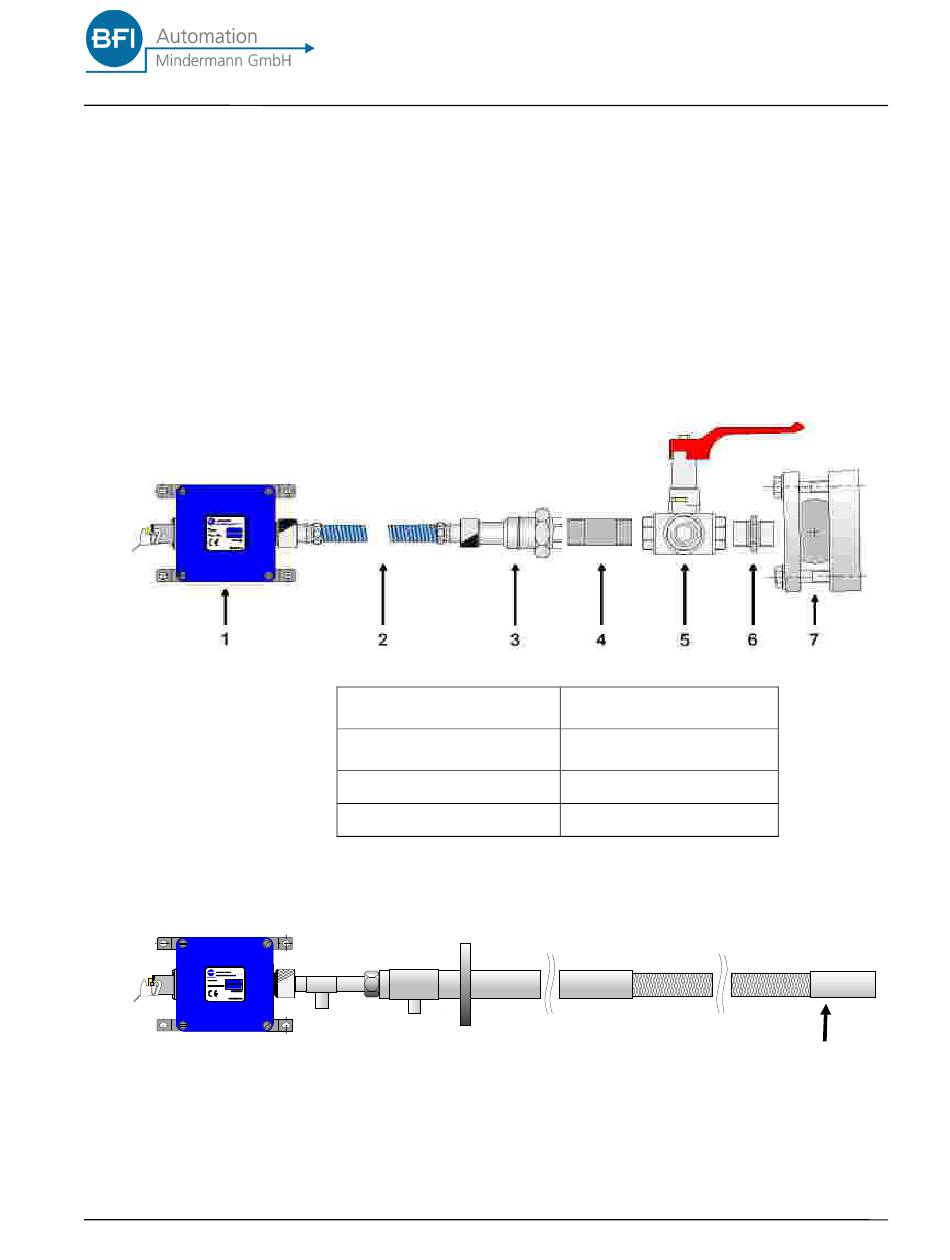

1 OE-Converter
2 Fibre optic cable
3 SKL
4 Heating insulator
Alternative lance solution for tiltable burner
5 3-Way valve
6 Double nipple
7 Swivel mount
8 Fibre optic lance
8
4-7
